Hypertherm, inc, Terminal block tb2, I/o pcb – Hypertherm HD3070 Plasma Arc Cutting System w/ Automatic Gas Console User Manual

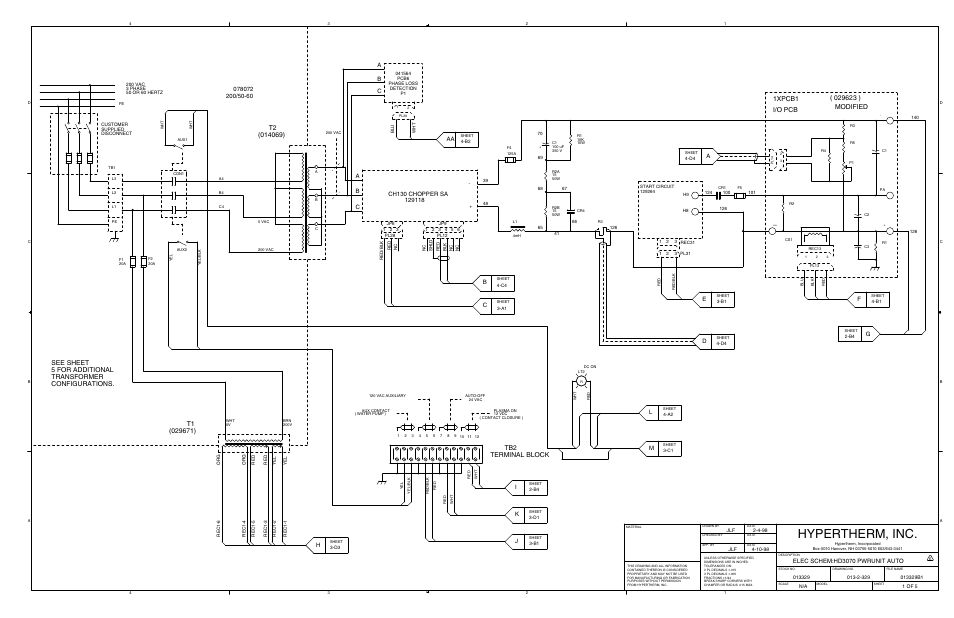

Page 237: Modified, 1xpcb1, Ch130 chopper sa, Aa a b c, Elec schem:hd3070 pwrunit auto

Text mode
Original mode

Hypertherm, inc, Terminal block tb2, I/o pcb | Modified, 1xpcb1, Ch130 chopper sa, Aa a b c, Elec schem:hd3070 pwrunit auto | Hypertherm HD3070 Plasma Arc Cutting System w/ Automatic Gas Console User Manual | Page 237 / 281
