4.12 Power Supplies
The MITX-CORE-820 receives power from an input power connector that accepts +12 V or
+14.4 V~+19.5 V in the back-panel IO region, or from a 4-pin +12 V ATX power connector.
When a charger board is used, the power can be supplied using a 4-pin +12 V ATX power
connector from the adapter or battery connected to charger board.
Table 4-10 DC-IN Jack Pin Definitions
Pin
Signal
Pin
Signal
1
GND
2
+VDC_IN
3
GND
4
+VDC_IN

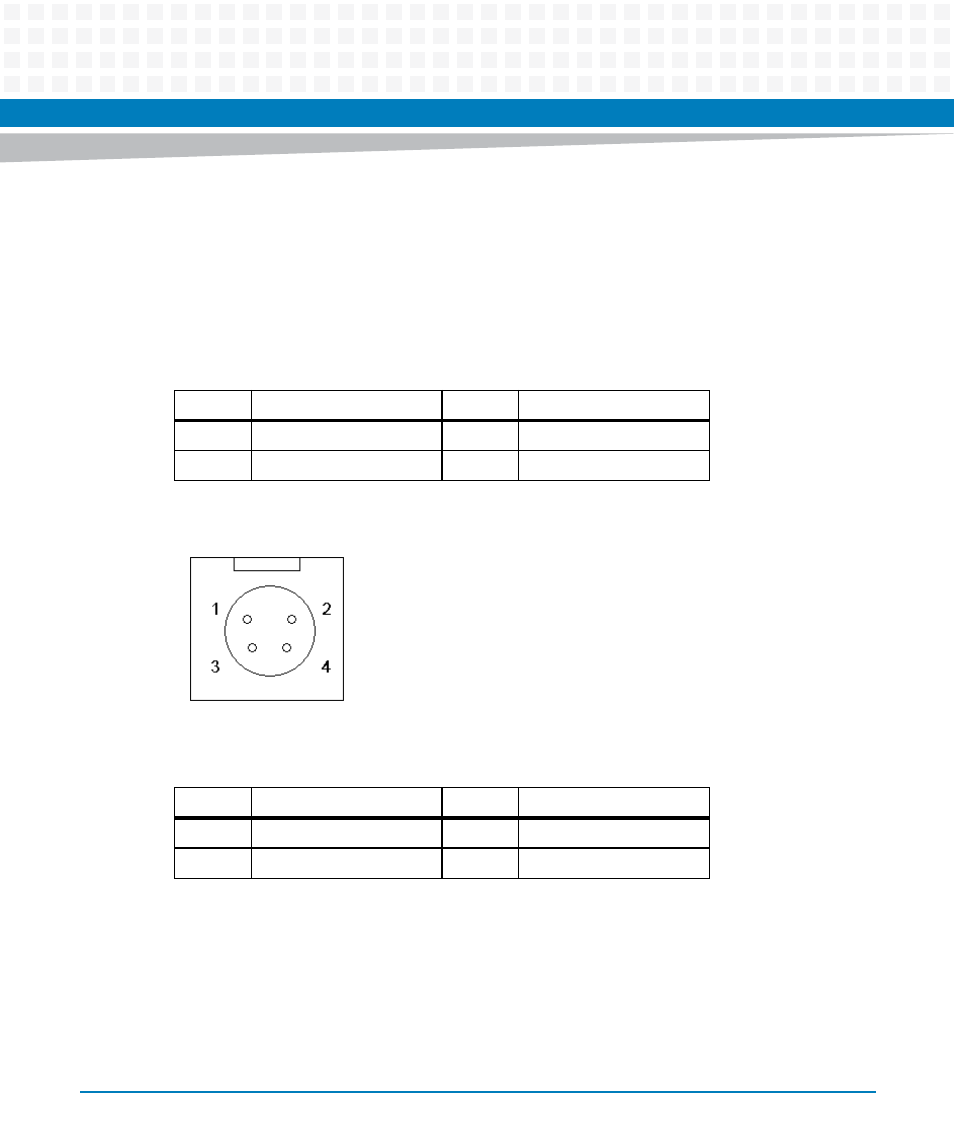

Figure 4-6
DC-IN Jack Front View
Table 4-11 ATX Power Supply Connector (J12)
Pin
Signal
Pin
Signal
1
GND
2
GND
3
+VDC_IN
4
+VDC_IN
