Page 54: Figure 4-2, Platform clocks distribution
Functional Description
MITX-CORE-820 Installation and Use (6806800M10H)
54
4.2
Processor
The board supports one 45 W 4-core Core i7 Intel Sandy Bridge-Mobile rPGA 988B embedded
processor. The board also provides the option to support one 35 W 2-core Core i5 Celeron Intel
Sandy Bridge-Mobile PGA Embedded processor.
4.3
Motherboard Clock Diagram
The MITX-CORE-820 implements full integrated clocking mode as the only platform clock
solution.

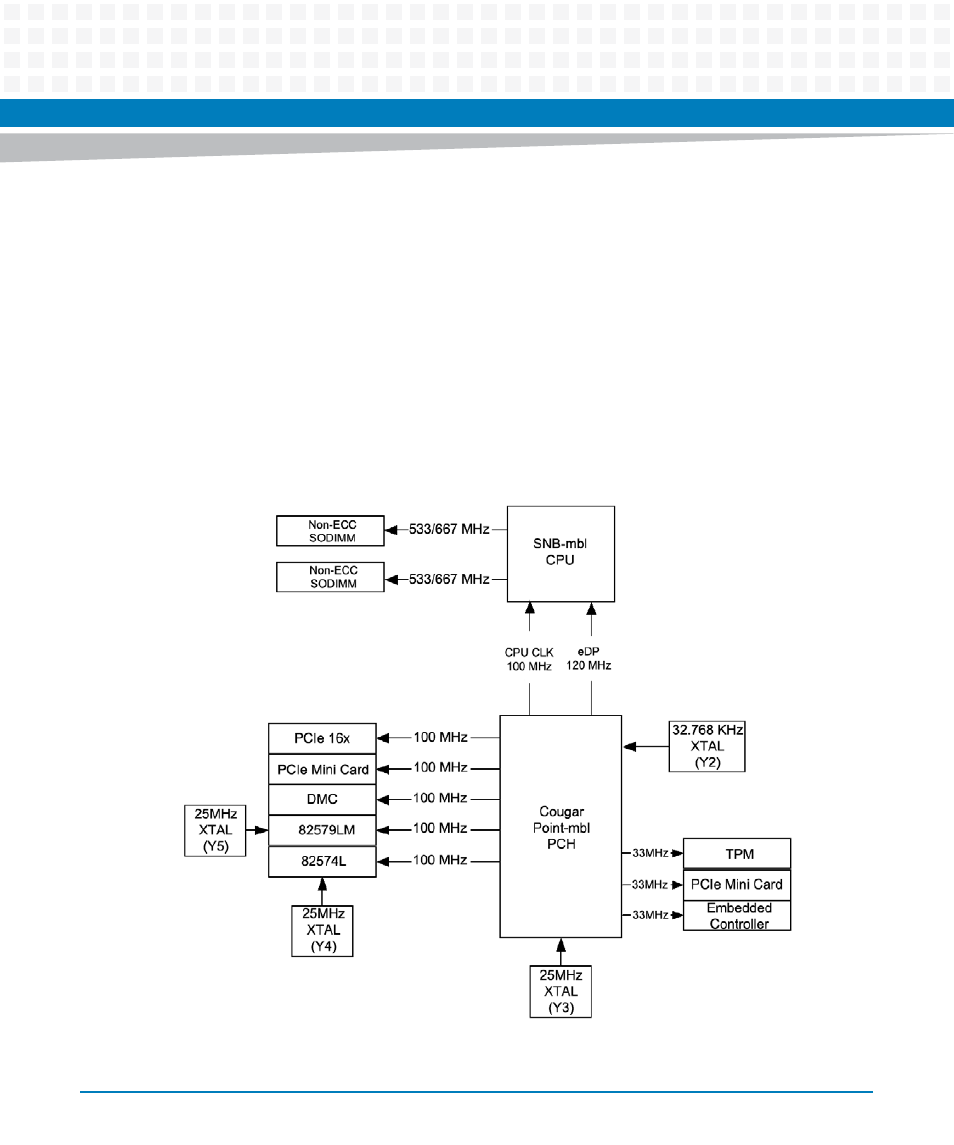

Figure 4-2
Platform Clocks Distribution
