Chapter 4
MITX-CORE-820 Installation and Use (6806800M10H)
53
Functional Description
4.1
Block Diagram
This engineering specification defines a standard Mini-ITX motherboard. The board supports a
single DC-Jack or ATX 4-pin power input and smart battery power input. The board
communicates with a charger board with the smart battery input through a header on the
motherboard.

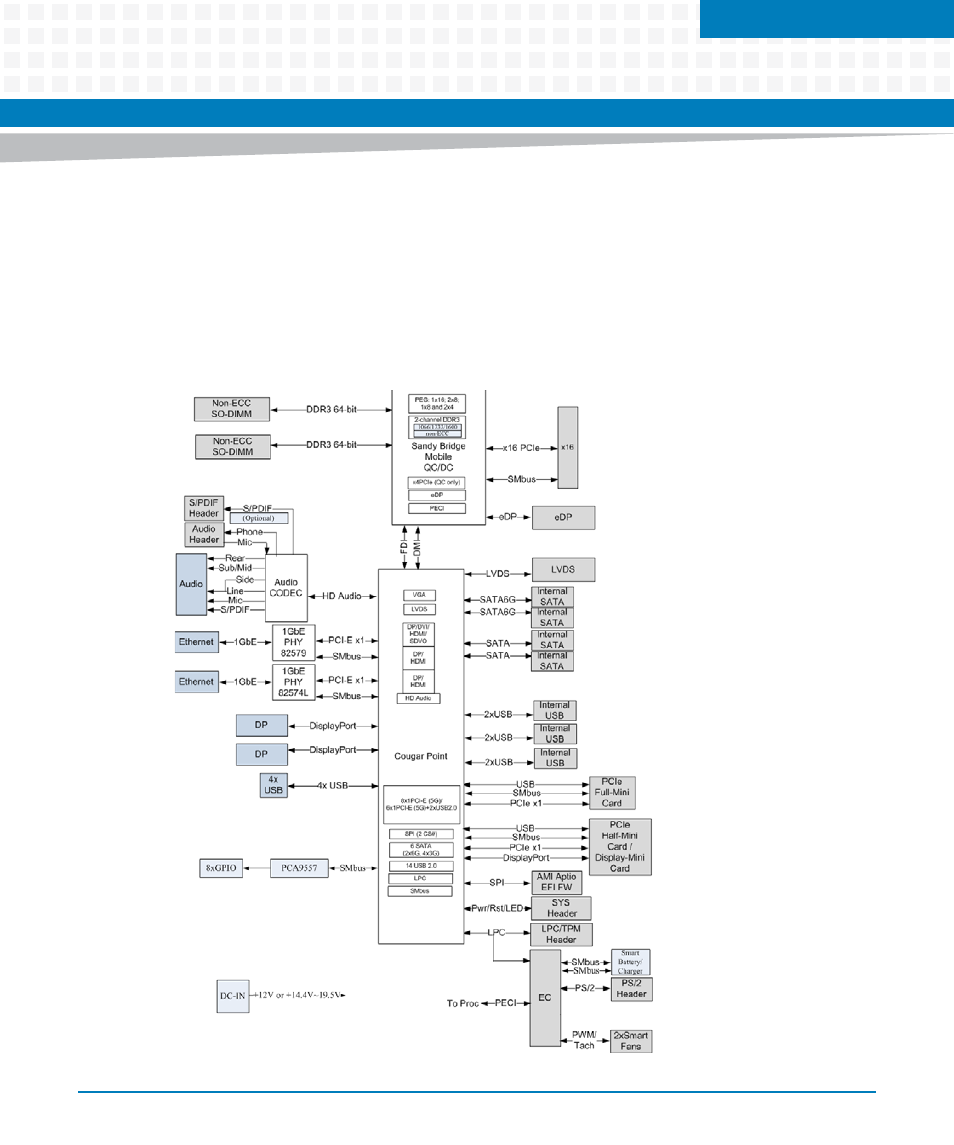

Figure 4-1
Block Diagram
