ATCA-MF106 Hardware
ATCA-MF106 Installation and Use (6806800M62B)
48
2.5
Gigabit Ethernet Hub
The hub of the ATCA-MF106 is a managed Layer 2 Gigabit Ethernet switch which provides the
following ports:
One 10/100/1000 Mbps Ethernet uplink on the face plate
Two 10/100 Mbps Ethernet ports, one to each shelf manager
Two 10/100/1000 Mbps Ethernet ports, one to each blade’s base interface
For more information refer also to the Centellis 2000 Shelf - DC Installation and Use manual.

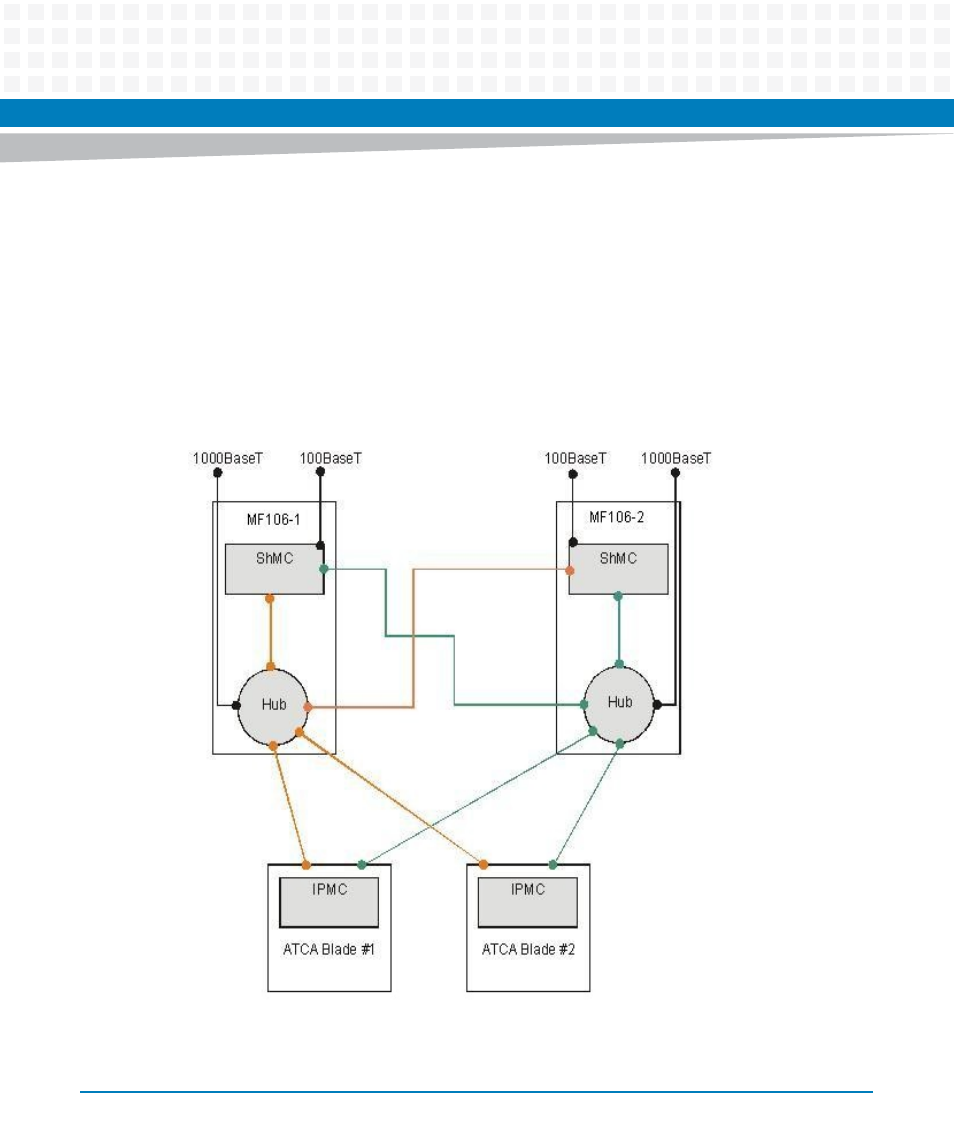

Figure 2-2
Base IP Network with GBE Hub
