Altera Corporation MegaCore Version 9.1 3–21
November 2009 QDRII SRAM Controller MegaCore Function User Guide
Functional Description

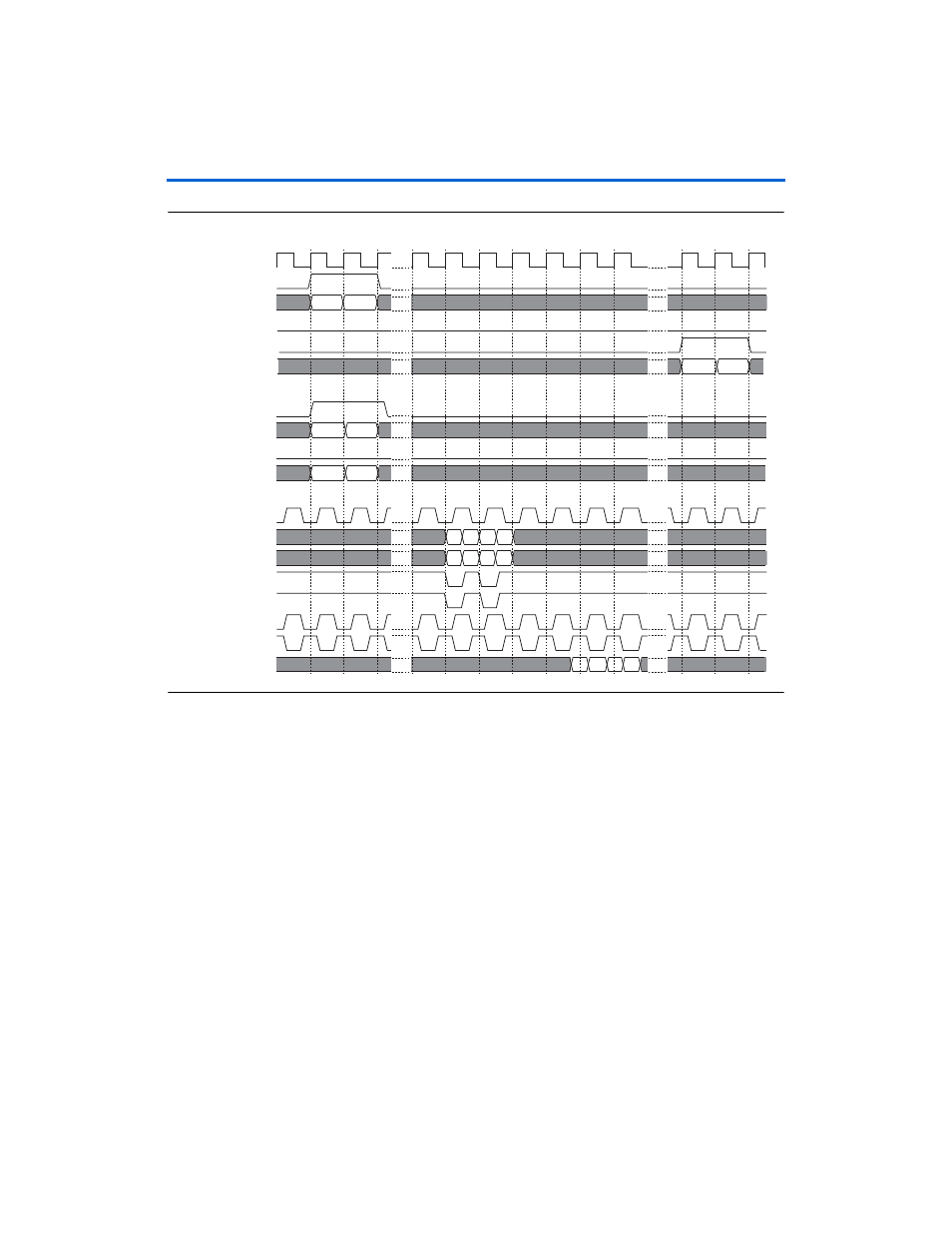

Figure 3–18. Simultaneous Read & Write—Burst of Two
Burst of Four (Wide Mode)
For the burst of four (wide mode) all the data is present in one clock cycle.
Similarly to the two cycles, you must alternate the read and write
commands on the QDRII SRAM interface. As a result, there is a pause
when both the read and write commands arrive simultaneously on the
Avalon interfaces. The first read is buffered and then the consecutive read
is delayed by one clock cycle, refer to
Figure 3–19 on page 3–22 .
51 52 52
0102 0304 0304
01 02 02
1112 1314 1314
51 01 52 02 02
11 12 13 14 14
01 02 03 04 04
avl_clk
avl_read
avl_adr_rd[19:0]
avl_wait_request_rd
avl_data_read_valid
avl_data_rd[17:0]
avl_write
avl_adr_wr[19:0]
avl_wait_request_wr
avl_data_wr[17:0]
qdrii_k
qdrii_a[19:0]
qdrii_d[17:0]
qdrii_wpsn
qdrii_rpsn
qdrii_cqn
qdrii_cq
qdrii_q[17:0]
