RAID Controller Configuration
StorCase Technology, Inc.
InfoStation 12-Bay RAID User's Guide - Rev. D00
Example:
One Array and two Slices mapped to Primary SCSI channel.
You will notice there are two sets of numbers in the LUN Map section (highlighted in Figure
24).
a. First number ( 10 11 xxxxx...) represents the Array #
b. Second number ( 10 11 xxxxx...) represents the LUN #

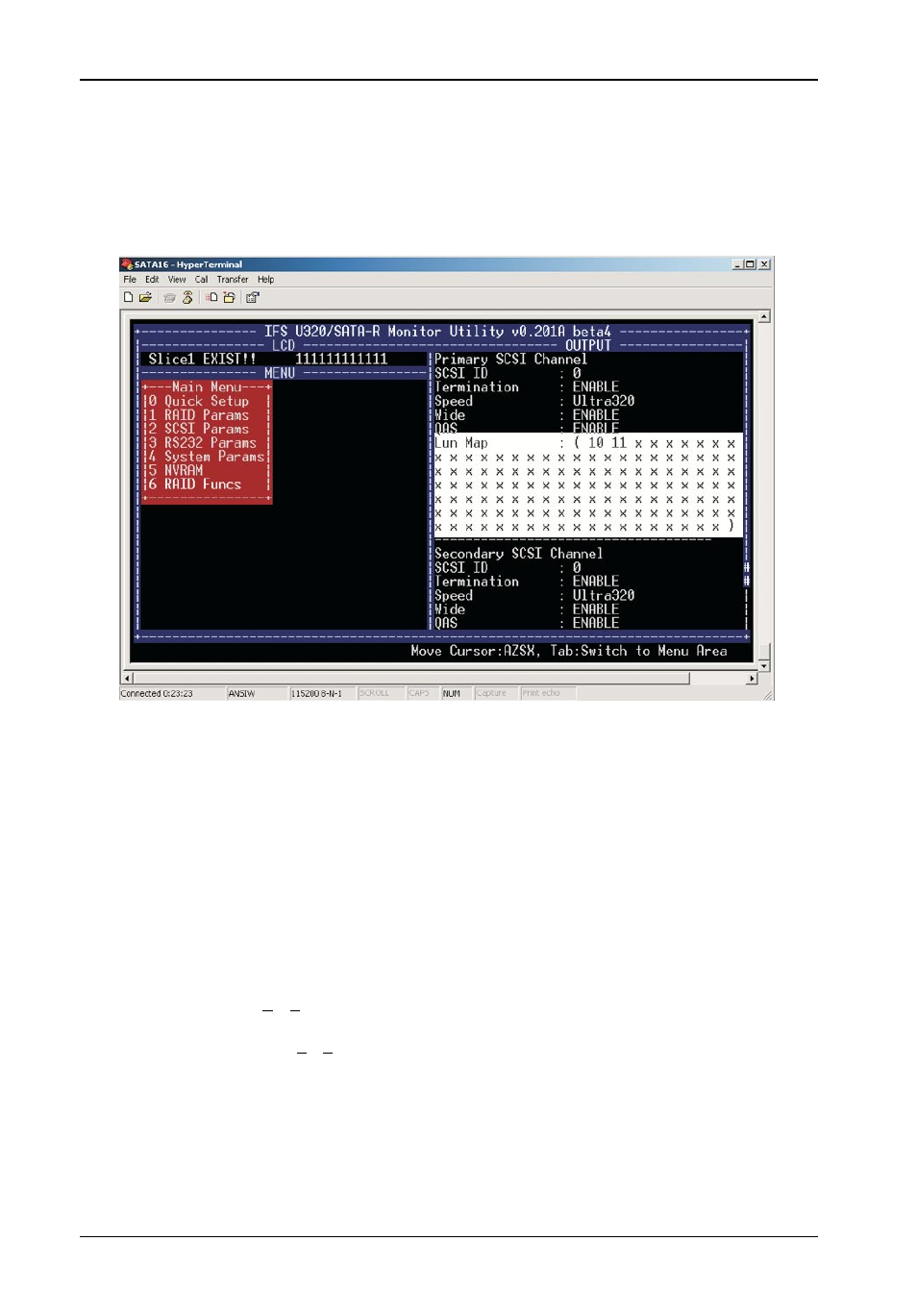

Figure 24: Example of One Array and Two Slices
Mapped to the Primary SCSI Channel
