InfoStation 12-Bay RAID User's Guide - Rev. D00

StorCase Technology, Inc.

RAID Controller Configuration

15

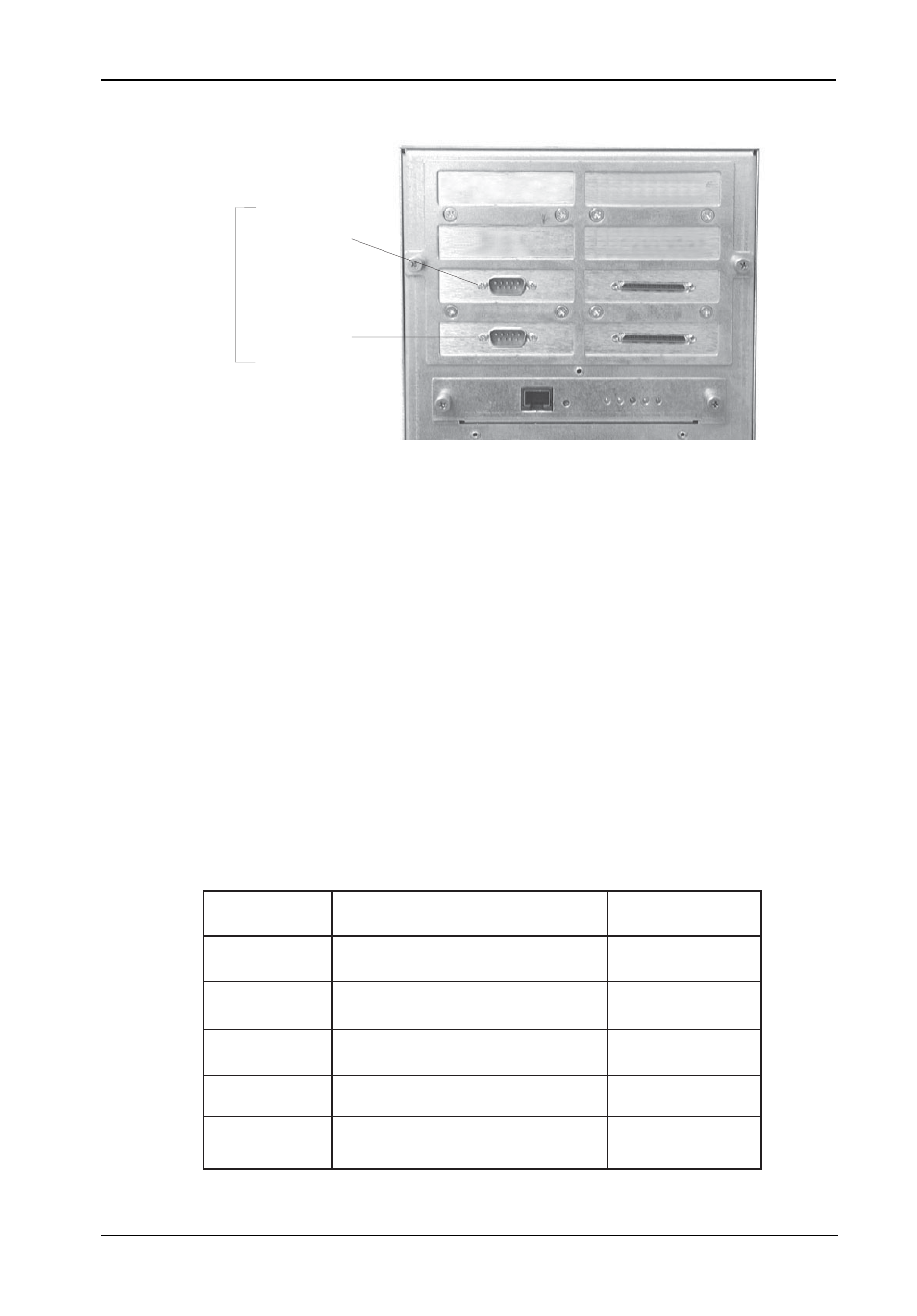

Figure 9: DB9 Port Location

(SCSI-to-SATA version shown)

DB9

Connectors

Connect to

VT-100/ANSI

Terminal or

DataMaster

Connect to

External

Modem

Table 2: Communications Parameters

Set the communications parameters (Table 2):

NOTE:

The same parameters apply to both HyperTerminal and Data Master GUI.

Setting

Values

Baud Rate

Data Bits

Stop Bits

Parity

Flow Control

2400, 4800, 9600, 14400, 19200,

28800, 38400, 57600, 115200

7, 8

1, 2

None, Odd, Even

Xon/Xoff, Hardware, None

Default Value

115200

8

1

None

None
