InfoStation 12-Bay RAID User's Guide - Rev. D00

StorCase Technology, Inc.

RAID Controller Configuration

45

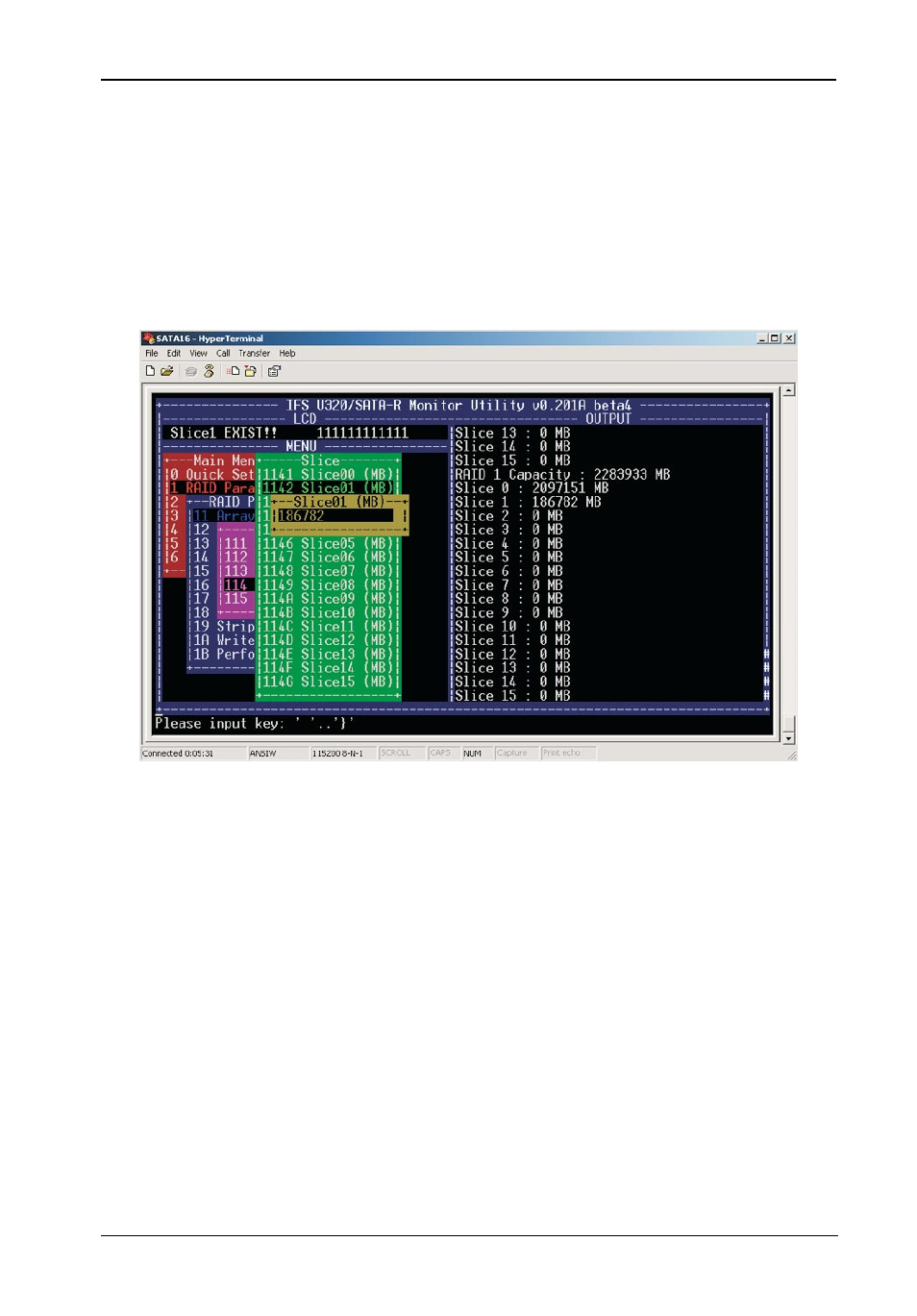

You will notice that by default, two partitions were created (Figure 22).

P1 =

2097GB

(located in Output, or right side of the screen)

P2 =

186GB

Figure 22: Example of a RAID 0 Creation with 2.2TB Total Capacity

Example:

RAID 0 being created with approximately 2.2TB total capacity.
