18 RAID Controller Configuration
StorCase Technology, Inc. InfoStation 12-Bay RAID User's Guide - Rev. D00

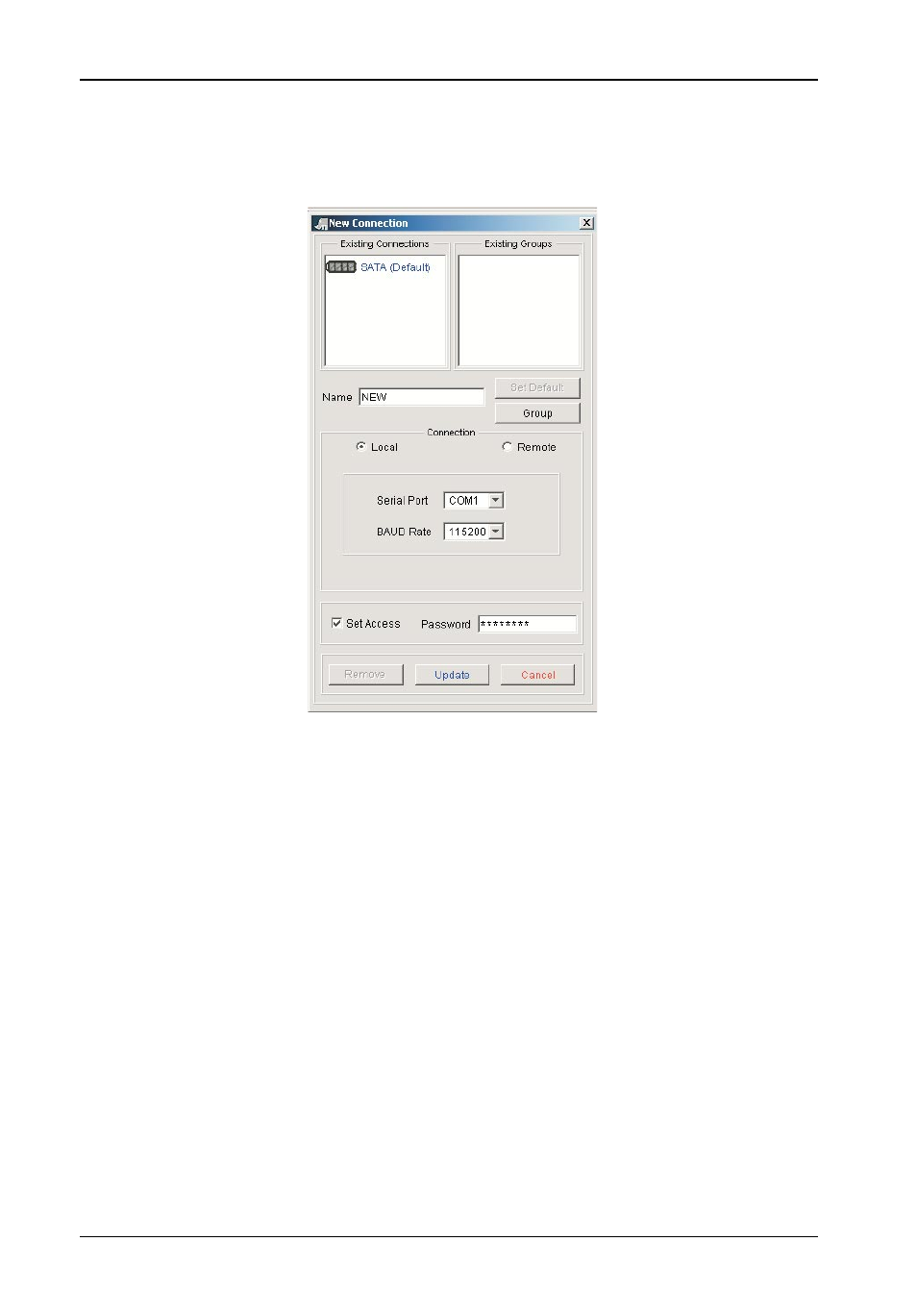

Figure 10B: Connection Screen
(If there is already a connection to an InfoStation)
If this not the first time opening Data Master and there is already a connection to an
InfoStation, the following screen should appear (Figure 10B).
Confirm that all settings are correct and click Update.
If successful, Data Master will open with InfoStation connection present. Skip
Steps 5-10 and proceed to sections "Quick Setup" or "Customized Setup" on
pages 23-29 of this User's Guide.
5. Select the location of the InfoStation RAID system (Figure 10C).
Check “Local” connection if RAID system is connected via RS-232.
Check “Remote” connection if RAID system is connected via TCP/IP (refer to the
Data Master User’s Guide for further information).
Confirm that all settings are correct and click Continue.
