InfoStation 12-Bay RAID User's Guide - Rev. D00

StorCase Technology, Inc.

RAID Controller Configuration

19

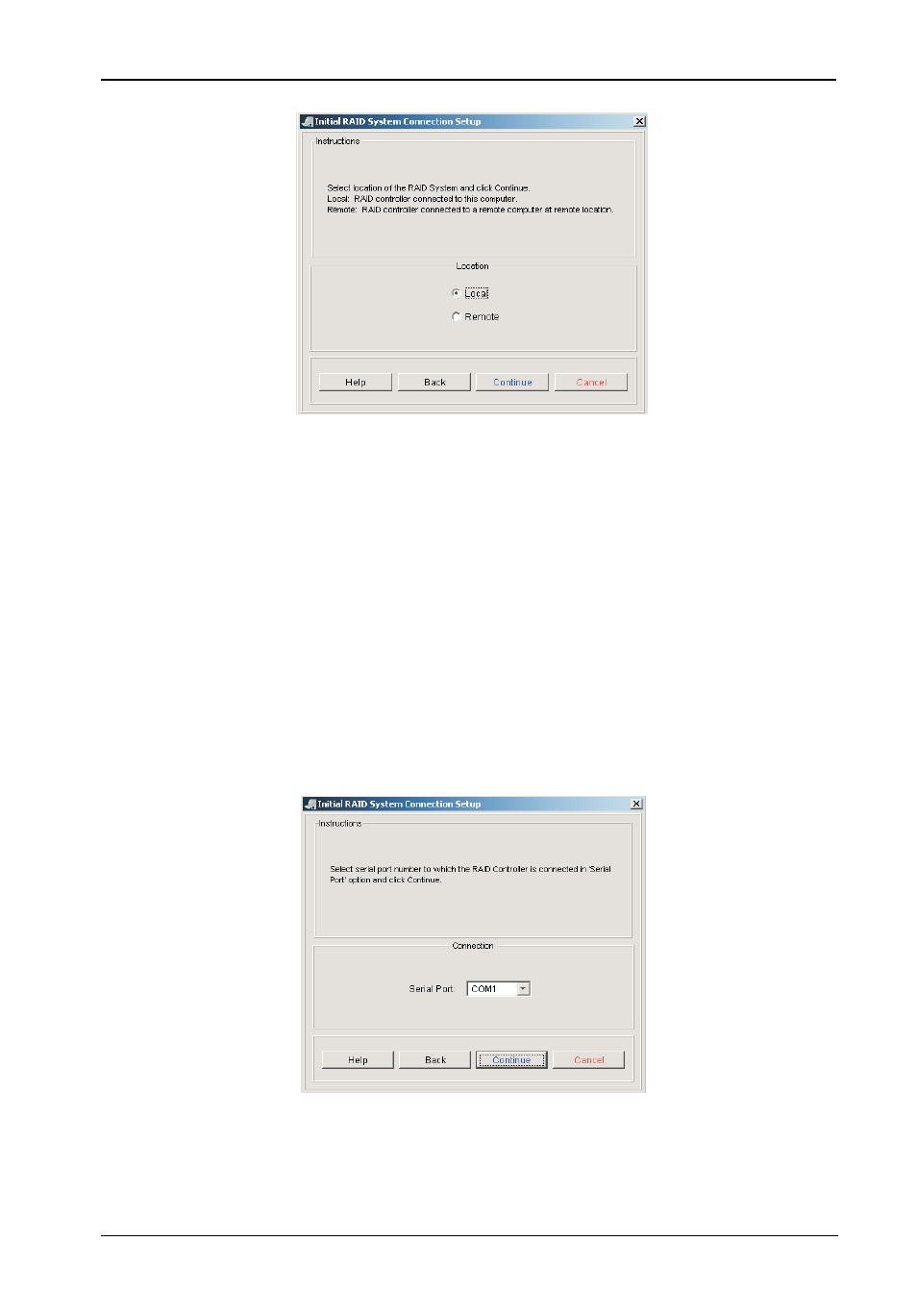

Figure 10C: Location Type Setup Screen

Figure 10D: Serial Port Setup Screen

6.

Select the connection type from the "Serial Port" dropdown menu (Figure 10D).

If using a “Local” connection (via RS-232), Serial Port should be set to COM1.

For “Remote” connection (via TCP/IP), refer to the Data Master User’s Guide for
further information.

Confirm that all settings are correct and click Continue.
