8

User Interface

StorCase Technology, Inc.

InfoStation 12-Bay RAID User's Guide - Rev. D00

LED Indicator and User Interface Panel

Each InfoStation provides the user with a visual indication of chassis environmental and
configuration statuses, in addition to providing an RS-232 connection for system environmental
monitoring, configuration, and control (Figure 4).

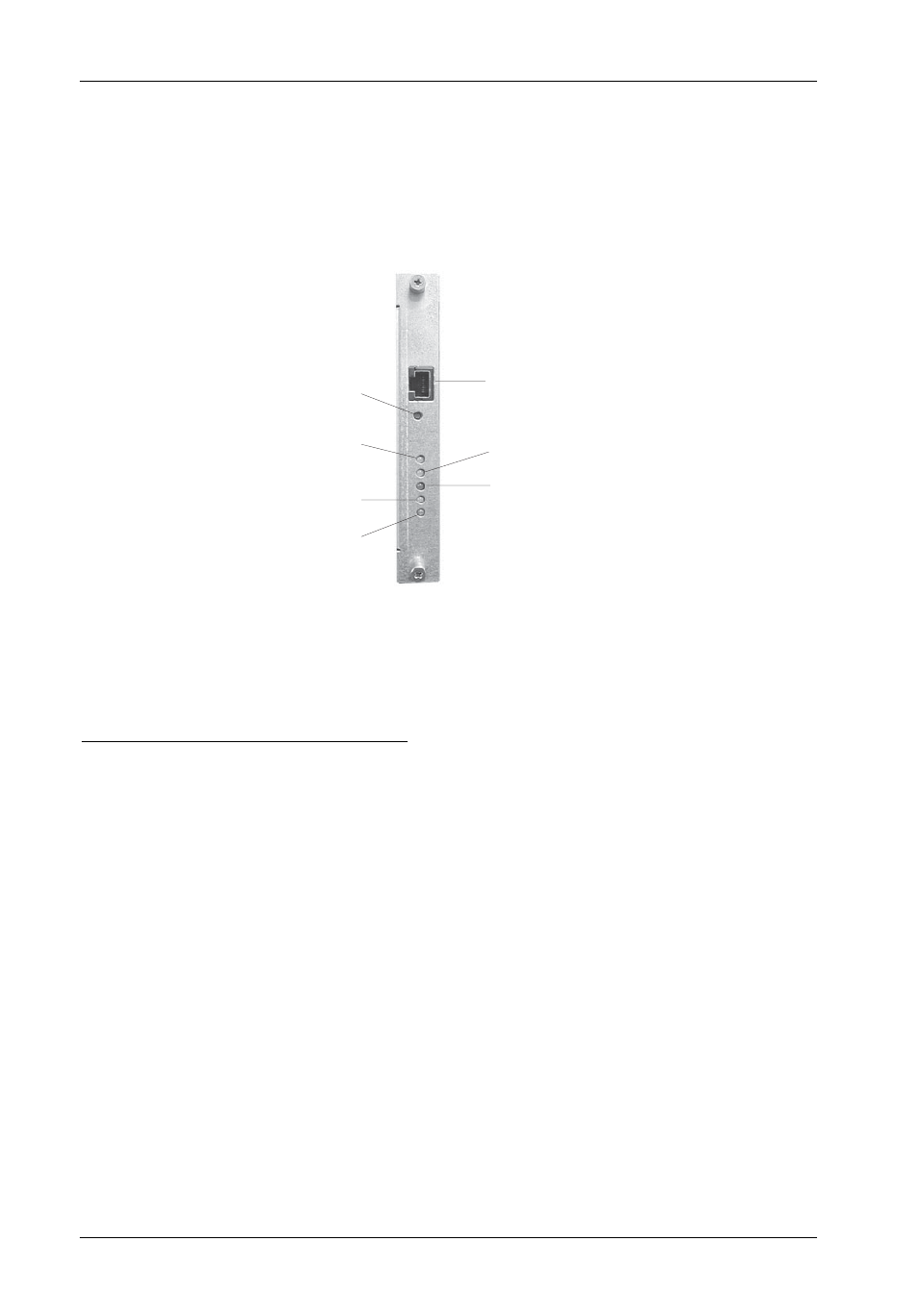

Figure 4: UI Module

LED Indicator/UI Panel Components

RS-232 -

RS-232 serial connection used for InfoStation external monitoring and

Serial Port

configuration

Reset Switch -

Resets InfoStation User Interface Module (will not reset SCSI bus)

Override -

ON =

Warning condition commands are overridden

(Amber)

NOTE:

Factory default is OFF (recommended).

Mute -

ON =

Audible alarm is disabled

(Amber)

Fault -

ON =

One or more fault conditions

(Red)

Warning -

ON =

One or more warning conditions

(Amber)

Power -

ON =

Power to the chassis is ON

(Green)

RS-232

Serial Port

Reset

Mute

Warning

Power

Fault

Override
