20

RAID Controller Configuration

StorCase Technology, Inc.

InfoStation 12-Bay RAID User's Guide - Rev. D00

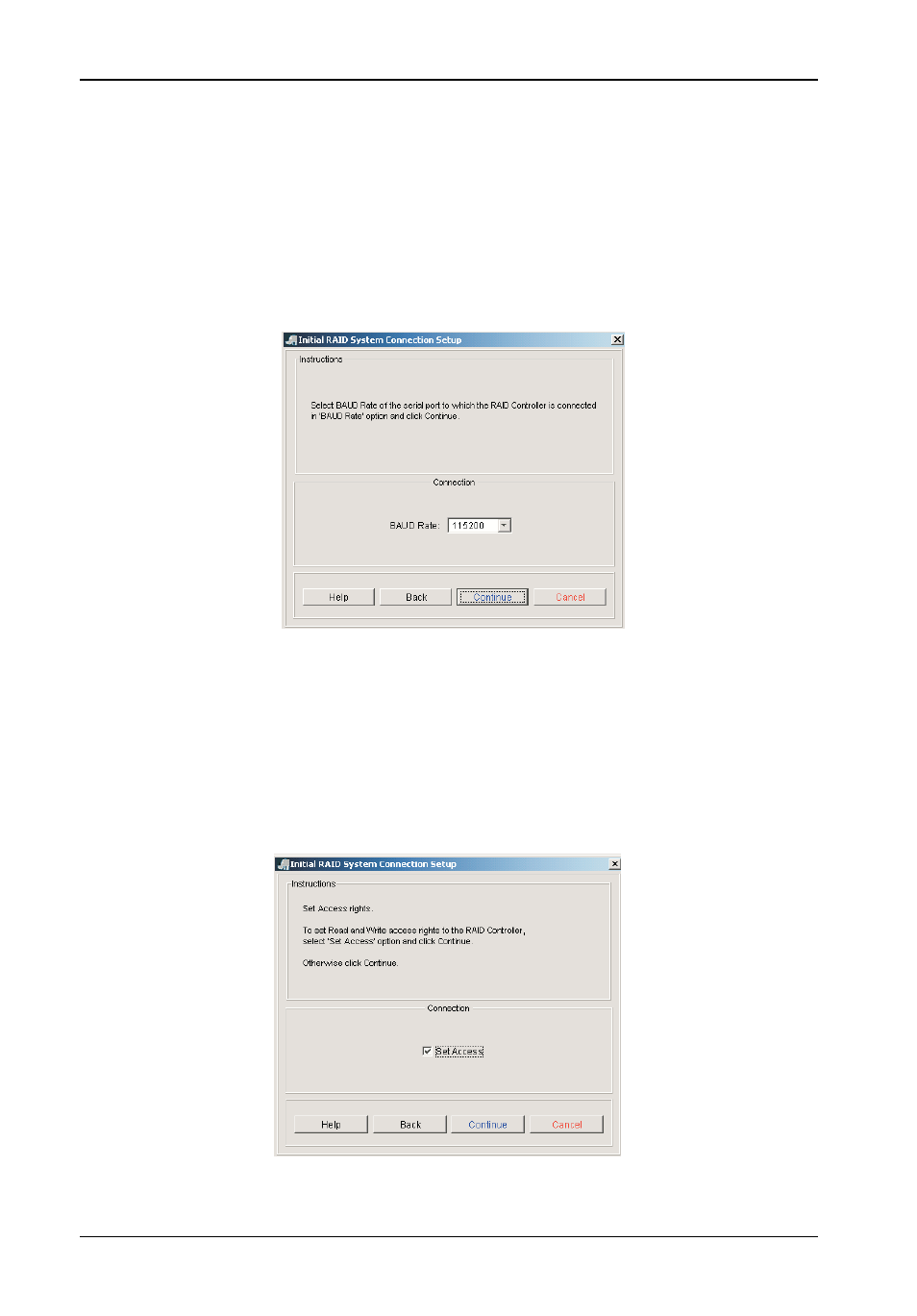

Figure 10E: Baud Rate Setup Screen

8.

To set access rights, check the Set Access box (Figure 10F).

Confirm that all settings are correct and click Continue.

7.

Select the Baud Rate from the "Baud Rate" dropdown menu (Figure 10E).

If using a “Local” connection (via RS-232), Baud Rate should be set to 115200.

For “Remote” connection (via TCP/IP), refer to the Data Master User’s Guide for
further information.

Confirm that all settings are correct and click Continue.

Figure 10F: Set Access Screen
