34

RAID Controller Configuration

StorCase Technology, Inc.

InfoStation 10-Bay RAID User's Guide - Rev. E00

Example:

RAID 0 being created with approximately 2.2TB total capacity.

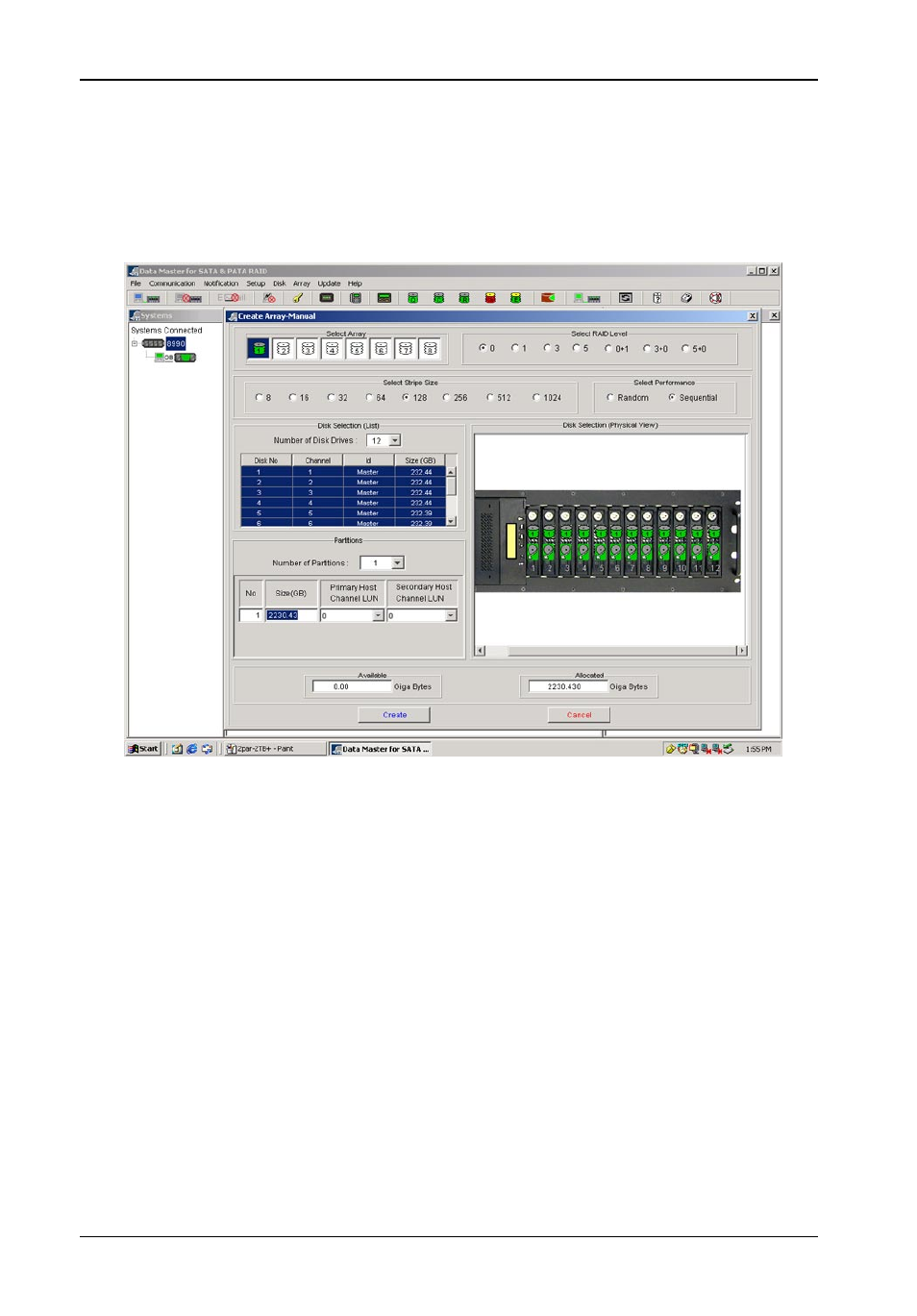

Figure 17A: RAID 0 Creation with 2.2TB Total Capacity

(Example shown, actual screen may vary)
