Controller Module
9
InfoStation 10-Bay RAID User's Guide - Rev. E00
StorCase Technology, Inc.

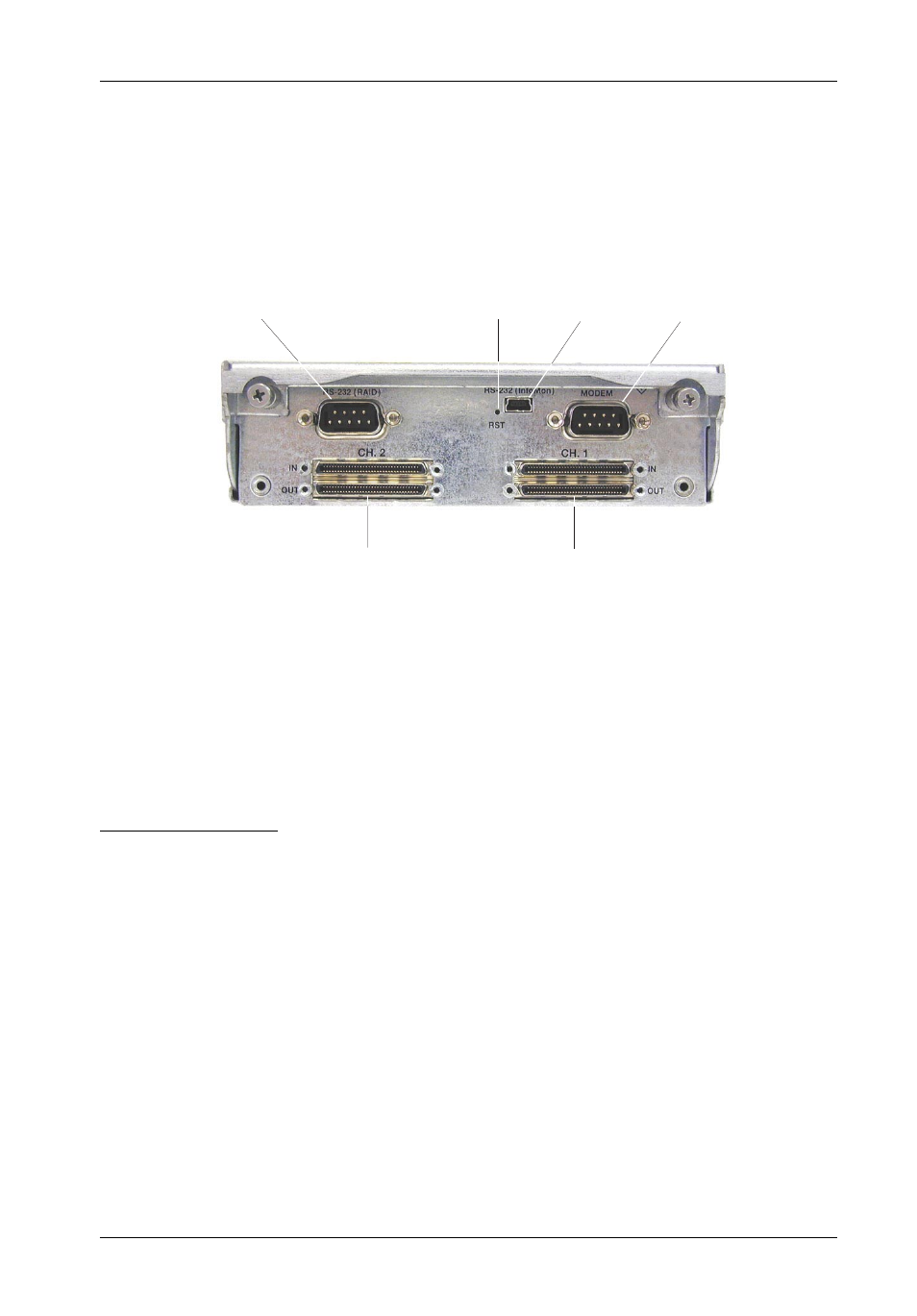

Figure 4B: RAID Controller Module Panel
(SCSI-to-SATA)
Modem
Port
RS-232
Serial Port
(DB9)
RS-232
Serial Port
(Mini USB)
Reset
VHDCI
I/O Connectors
(Ch. 2)
VHDCI
I/O Connectors
(Ch. 1)
Panel Components
LAN Port -
Reserved for future LAN port option (for web-based enclosure
(Not shown)
management)
RS-232 Serial Port -
Connection used for InfoStation external monitoring, RAID
(DB9)
configuration, and control (via Hyper Terminal or Data Master).
Reset Switch -
Resets InfoStation UI (will not reset SCSI Bus).
RS-232 Serial Port -
Serial connection used for InfoMon external monitoring, con-
(Mini USB)
figuration, and control. Mini USB-to-DB9 cable provided.
Modem Port -
Connection used for external modem.
I/O Connectors -
VHDCI connectors used for SCSI host channels. Four (4) I/Os
support daisy-chaining applications.
SCSI-to-SATA
(S10H117)
