InfoStation 10-Bay RAID User's Guide - Rev. E00

StorCase Technology, Inc.

RAID Controller Configuration

19

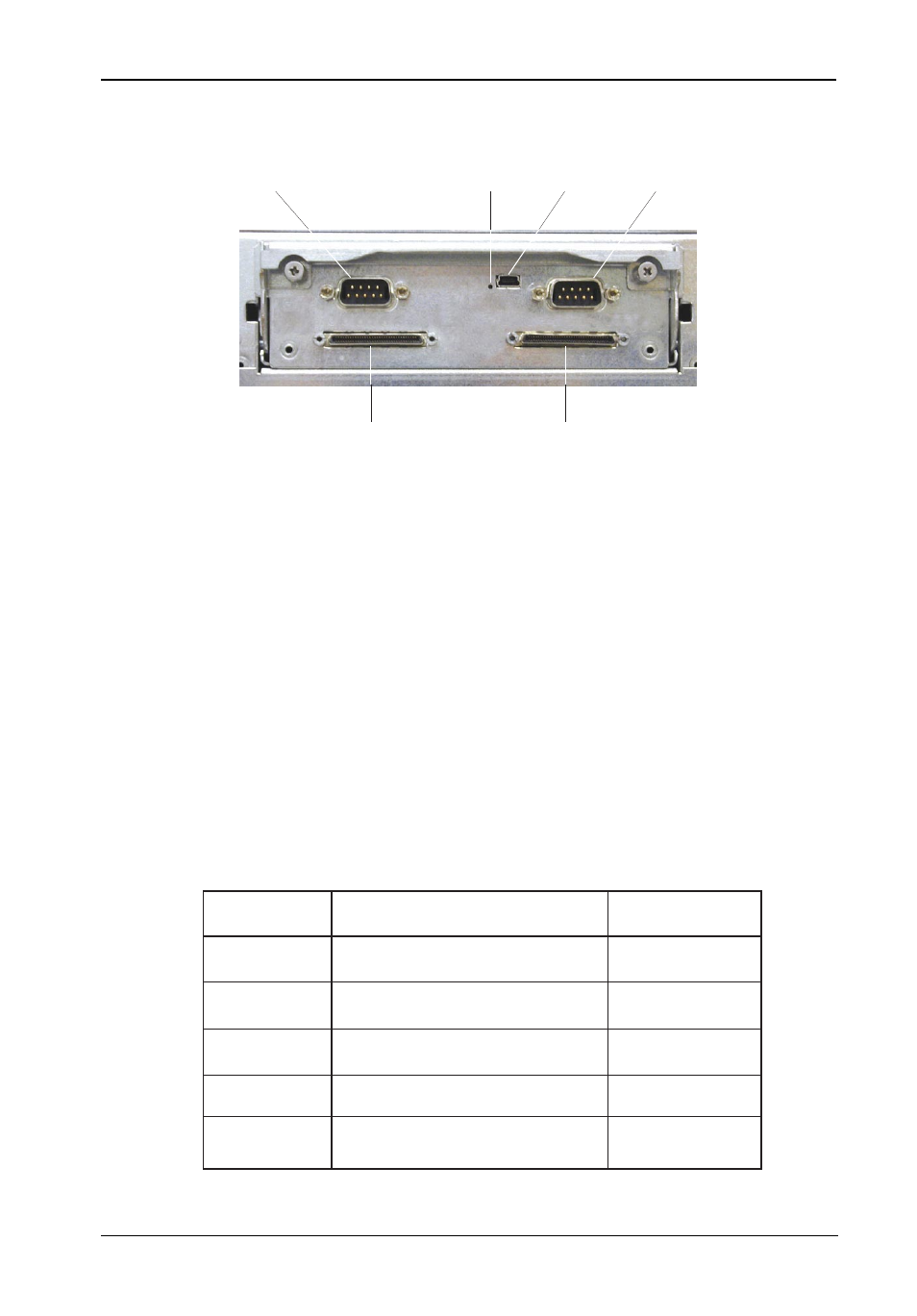

Figure 8: DB9 Port Location

(SCSI-to-SATA version shown)

Table 1: Communications Parameters

Set the communications parameters (Table 1):

NOTE:

The same parameters apply to both HyperTerminal and Data Master GUI.

Setting

Values

Baud Rate

Data Bits

Stop Bits

Parity

Flow Control

2400, 4800, 9600, 14400, 19200,

28800, 38400, 57600, 115200

7, 8

1, 2

None, Odd, Even

Xon/Xoff, Hardware, None

Default Value

115200

8

1

None

None

Modem

Port

RS-232

Serial Port

(DB9)

RS-232

Serial Port

(Mini USB)

Reset

VHDCI

I/O Connectors

(Ch. 2)

VHDCI

I/O Connectors

(Ch. 1)
