Controller Module

11

InfoStation 10-Bay RAID User's Guide - Rev. E00

StorCase Technology, Inc.

Panel Components

LAN Port -

Reserved for future LAN port option (for web-based enclosure

(Not shown)

management)

RS-232 Serial Port -

Connection used for InfoStation external monitoring, RAID config-

(DB9)

uration, and control (via Hyper Terminal or Data Master).

Reset Switch -

Resets InfoStation UI (will not reset FC Loops).

RS-232 Serial Port -

Serial connection used for InfoMon external monitoring, config-

(Mini USB)

uration, and control. Mini USB-to-DB9 cable provided.

Modem Port -

Connection used for external modem.

FC Ports -

FC ports for FC-ALs. Four (4) FC ports support daisy-chaining
applications.

Error LEDs -

In =

ON indicates either loop not connected, HBA error, or

(Red)

cabling problem.

Out=

ON indicates RAID Module is not ready.

2Gbps LED -

ON =

Indicates 2Gbps operation (factory default).

(Green)

OFF=

Indicates 1Gbps operation.

Ready LED -

ON=

Indicates RAID Module is ready.

FC-to-SATA
(S10K111)

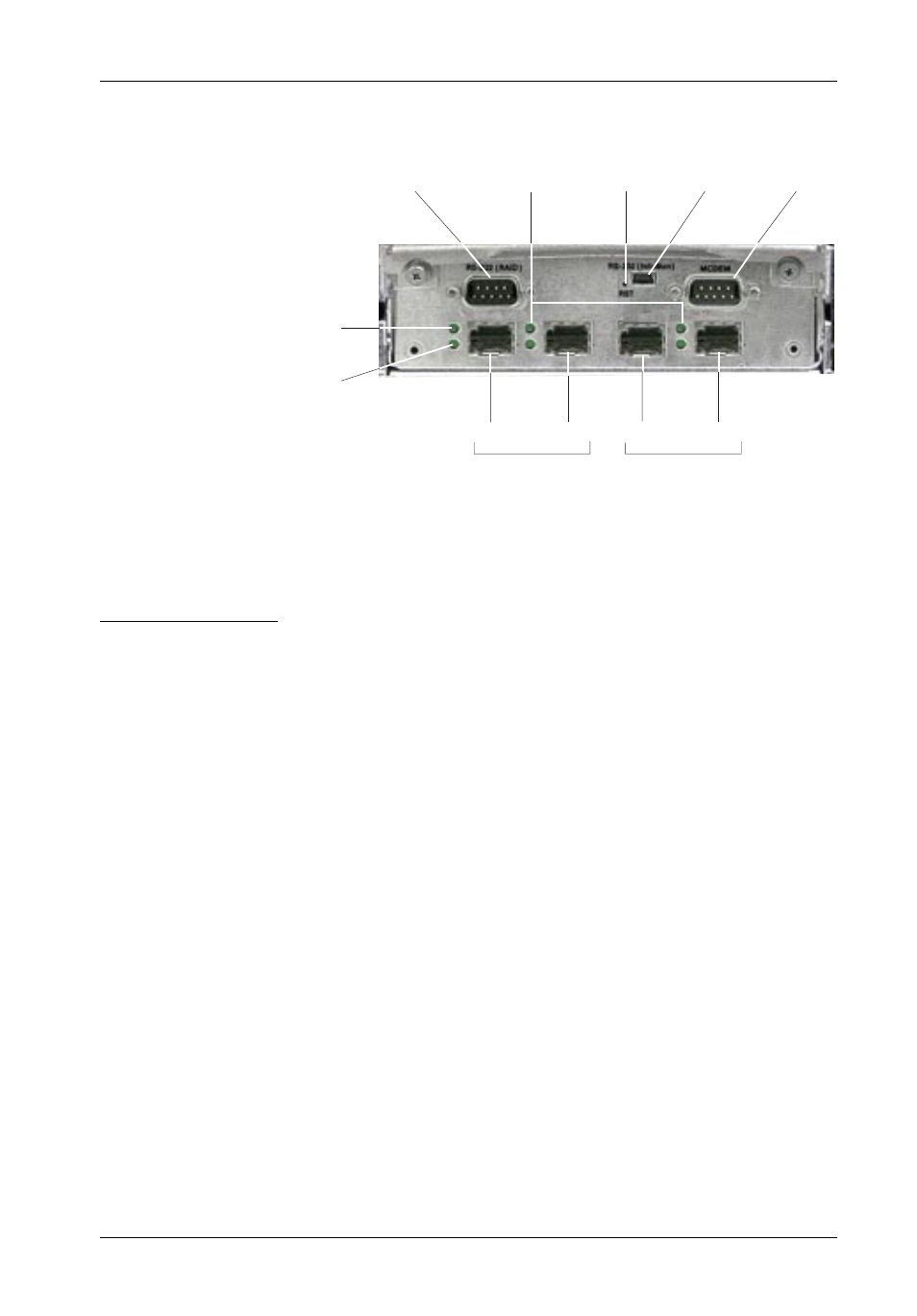

Figure 4D: RAID Controller Module Panel

(FC-to-SATA)

Modem

Port

RS-232

Serial Port

(DB9)

RS-232

Serial Port

(Mini USB)

Reset

2Gbps

LED

Ready

LED

Error

LEDs

In

FC Ports

(Loop A)

Out

In

Out

FC Ports

(Loop B)
