10 Controller Module
StorCase Technology, Inc. InfoStation 10-Bay RAID User's Guide - Rev. E00

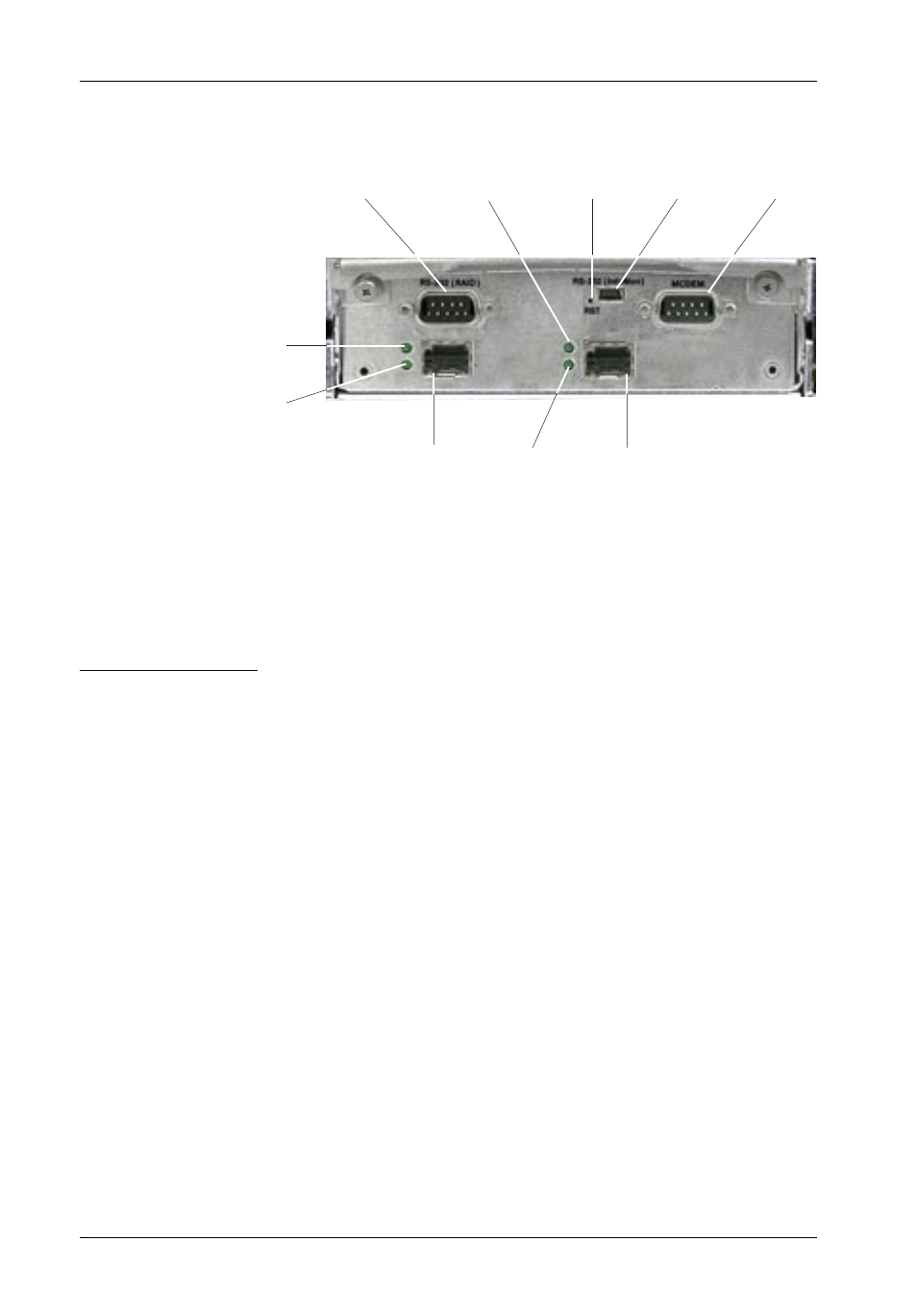

Figure 4C: RAID Controller Module Panel
(FC-to-SATA)
Modem
Port
RS-232
Serial Port
(DB9)
RS-232
Serial Port
(Mini USB) Reset
FC Port
(Loop A)
FC Port
(Loop B)
Status
LED
Activity
LED
Status
LED
Activity
LED
FC-to-SATA
(S10K108)
Panel Components
LAN Port - Reserved for future LAN port option (for web-based enclosure
(Not shown) management)
RS-232 Serial Port - Connection used for InfoStation external monitoring, RAID config-
(DB9) uration, and control (via Hyper Terminal or Data Master).
Reset Switch - Resets InfoStation UI (will not reset FC Loops).
RS-232 Serial Port - Serial connection used for InfoMon external monitoring, config-
(Mini USB) uration, and control. Mini USB-to-DB9 cable provided.
Modem Port - Connection used for external modem.
FC Ports - FC ports for FC-ALs.
Status LED - ON = Steady glow during power up indicates RAID controller
(Green) initialization (will turn OFF once initialization is complete and
if SFP is not connected to Host). LED will remain ON if SFP
is connected to Host.
Activity LED - ON = Steady glow indicates activity
(Green)
