InfoStation 10-Bay RAID User's Guide - Rev. E00

StorCase Technology, Inc.

RAID Controller Configuration

33

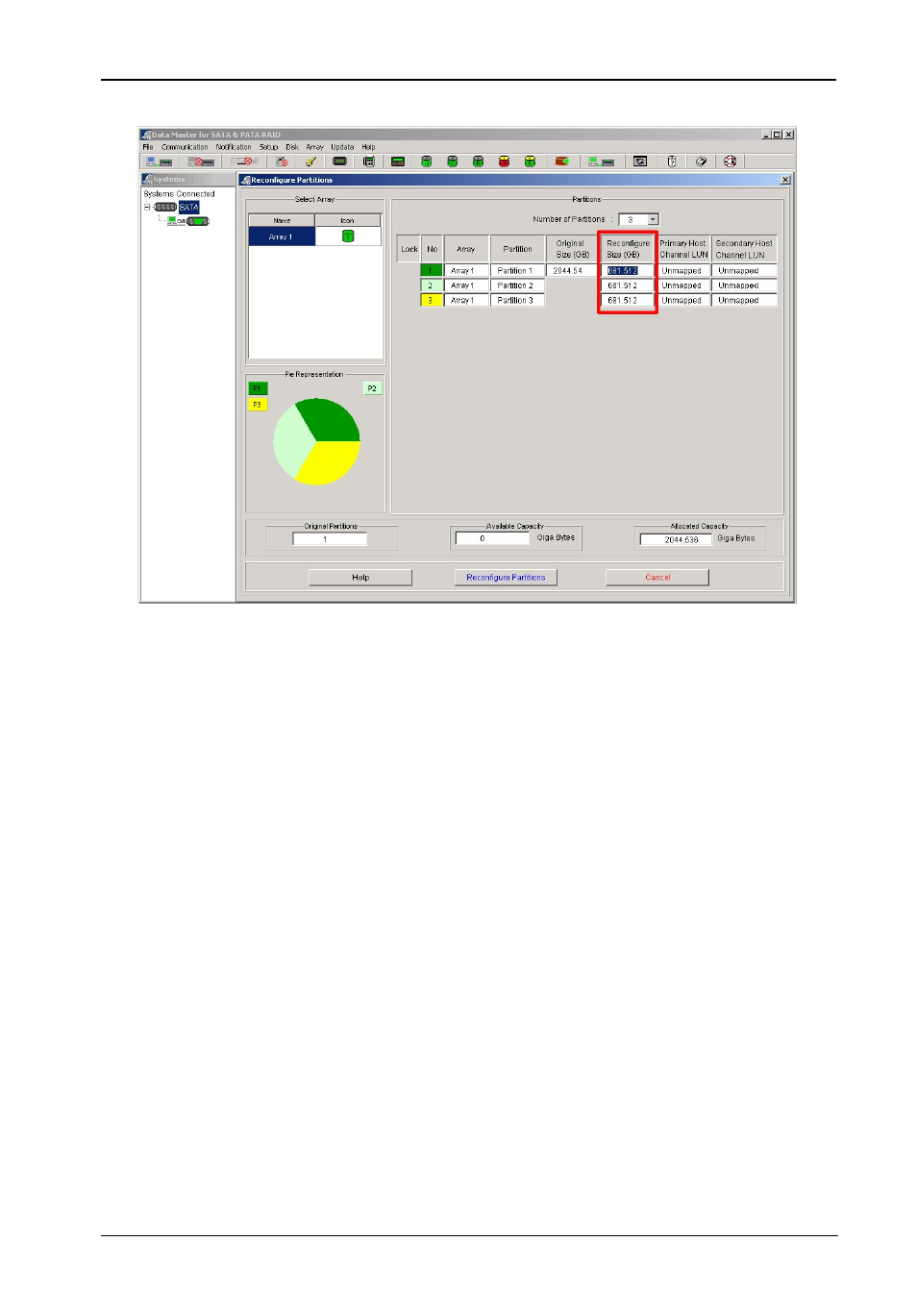

Figure 16: Data Master Reconfigure Partitions Option

(Example shown, actual screen may vary)

5.

Confirm that all settings are correct and click Reconfigure Partitions (Figure 16).

6.

Once partitions are created, proceed to section "LUN Mapping" on page 36 of this
User's Guide.
