Introduction

5

InfoStation 10-Bay RAID User's Guide - Rev. E00

StorCase Technology, Inc.

Front Panel

(Figure 2)

SCA Drive Carrier(s) - Accommodate up to ten (10) 2.5" SFF SATA devices.
Backplane design with direct-connect SCA connectors eliminates cable connections
to SATA drives, increases data integrity, and supports drive hot swappability.

Corresponding drive bay numbers (1-10) are shown in Figure 2.

Drive Carrier LED(s) - Provides the following information:

Drive Ready -

Indicates that the drive is properly installed and ready for

(Blue)

access

Drive Activity -

Indicates that the drive is being accessed

(Yellow)

Drive Fault -

Indicates a drive failure

(Red)

Chassis Handle(s) - Provide a sturdy grip for the installation and removal of the
rack-mount chassis.

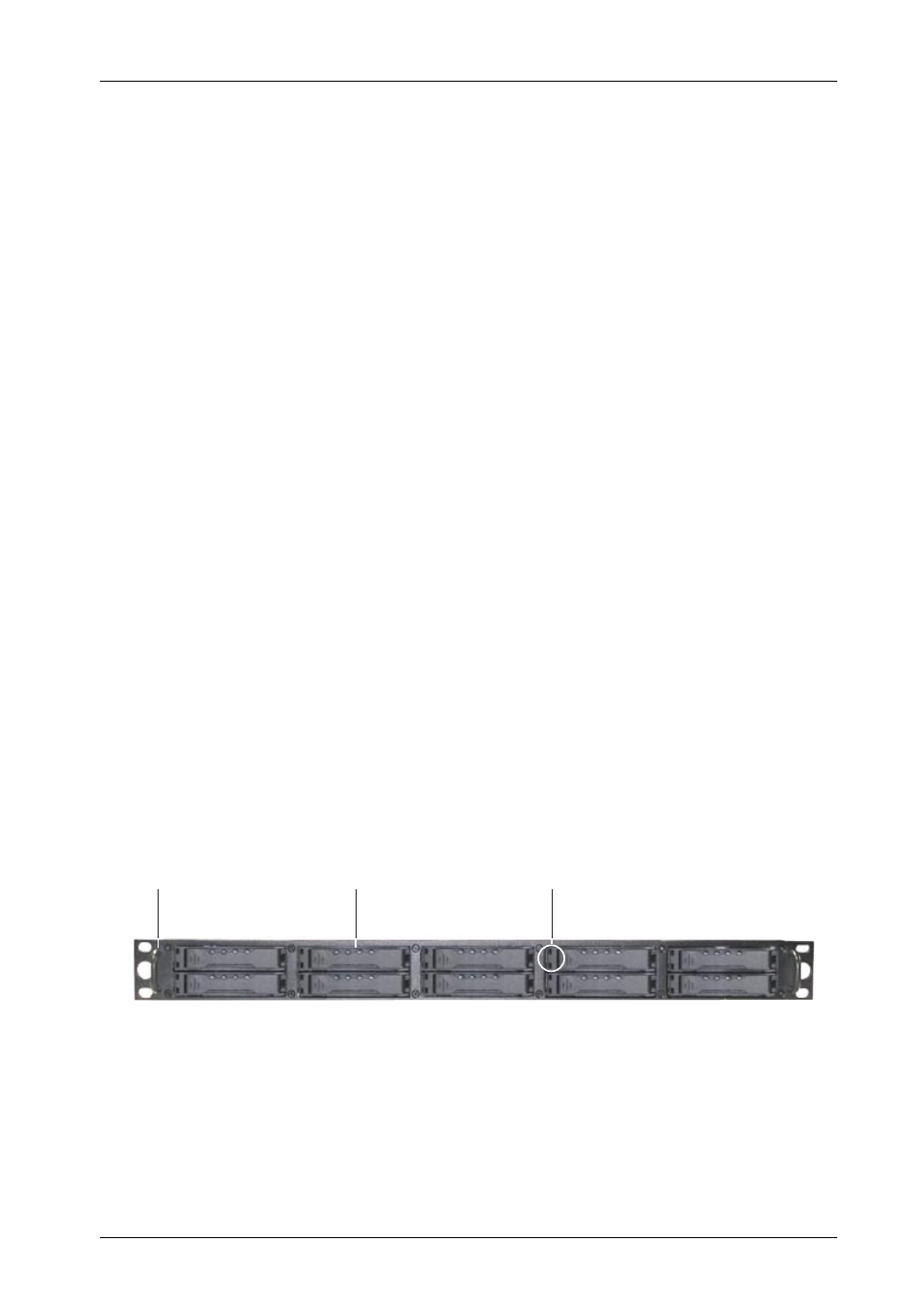

Figure 2: InfoStation Front Panel

Chassis

Handle

Drive

Carrier

Drive Carrier

LEDs

1

2

3

4

5

6

7

8

9

10
