Choose the menu QoS>>Voice VLAN>>Port Confi g to load the following page.

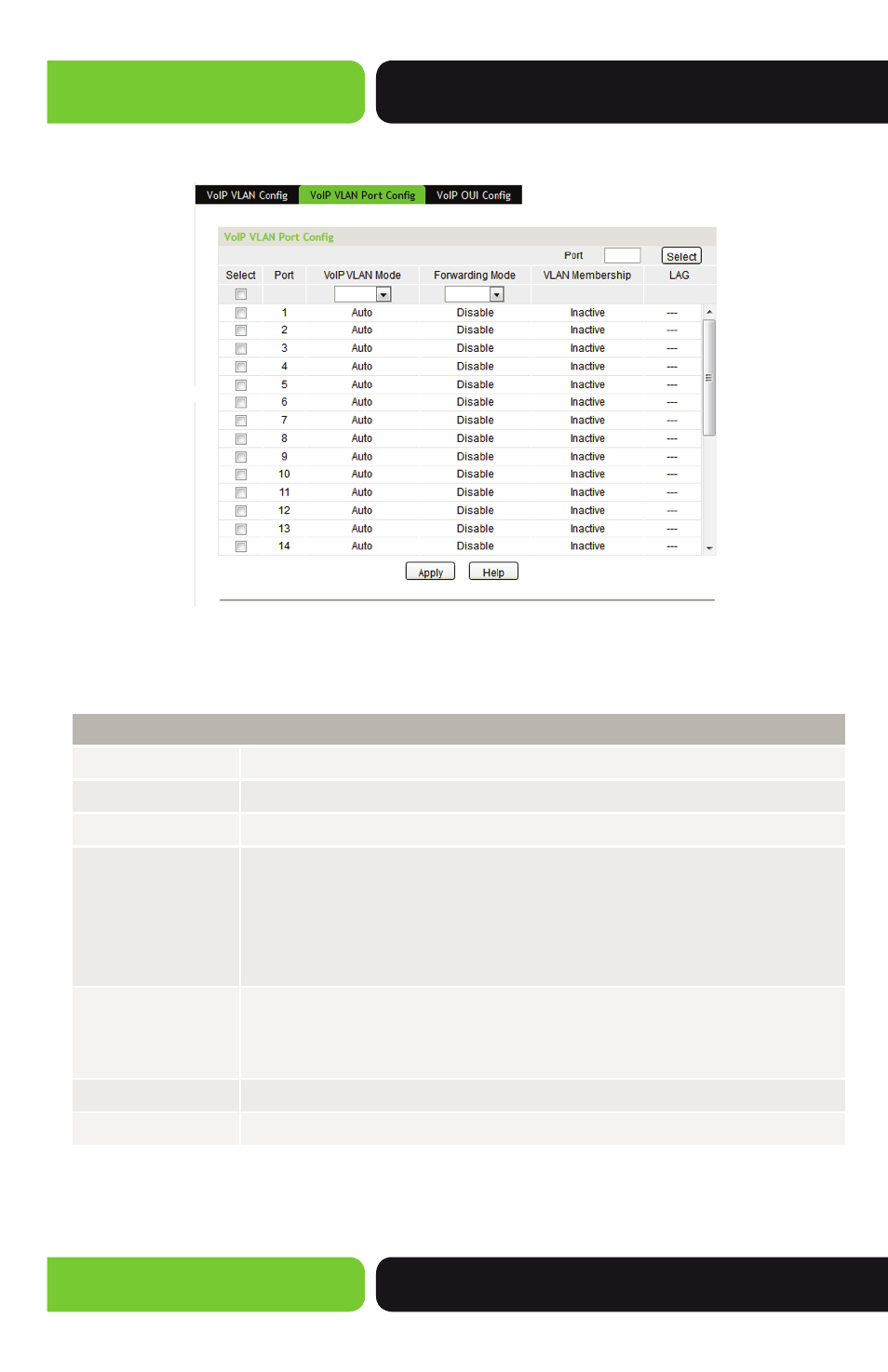

Figure 9-13 VoIP VLAN Port Confi g
The following entries are displayed on this screen:
Port Confi g
Port Select: Click the Select button to quick-select the corresponding Port.
Select: Select the desired Port(s) for Voice VLAN confi guration.
Port: Displays the Port number of the Switch.
Port Mode: Select the mode for the Port to use joining the Voice VLAN.
„
Auto: The Switch Automatically adds or removes the Port from the
Voice VLAN.
„
Manual: You must Manually add or remove a Port from the Voice
VLAN.
Security Mode: The Security Mode for forwarding packets.
„ Disable: All packets are forwarded.
„ Enable: Only Voice Data packets are forwarded.
VLAN Membership: Displays the status of the Port in the current Voice VLAN.
LAG:
Displays the LAG Group to which the Port belongs.
