Section 1.3 System Overview
Figure 1.1 shows the base package hardware components for the OmniLink II Press Automation
Control.

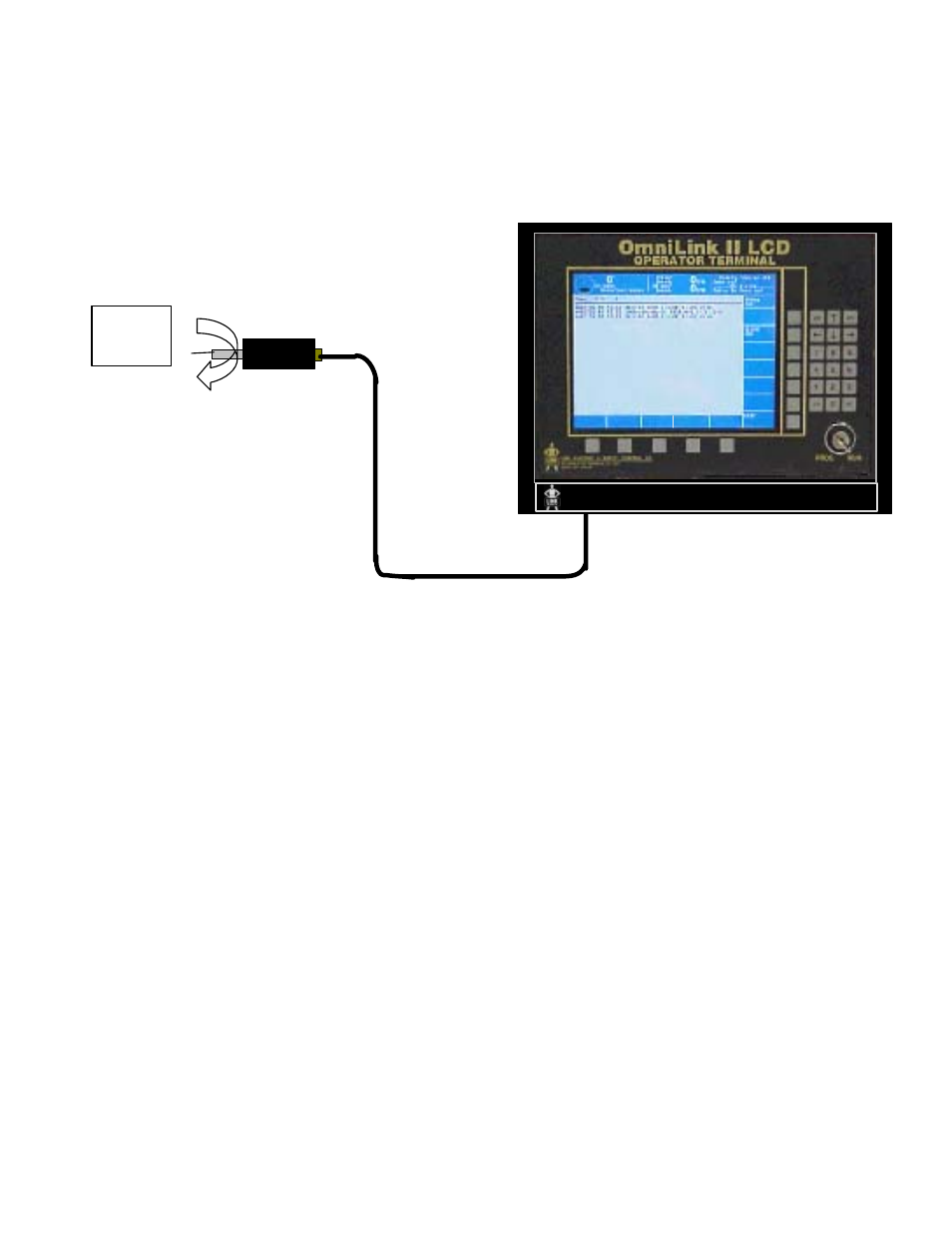

Figure 1.1 OmniLink II Press Automation Control Base System Package
Figure 1.2 (next page) shows the existing and planned components and features of the system with
optional components.
OMNILINK II PRESS AUTOMATION CONTROL
Crank or
Eccentric
Shaft
RESOLVER CABLE
RESOLVER
