LINK Systems OmniLink II Press Automation Control - Manual (Page 39)

August 30, 2002 Manual Version 1.0 3.6

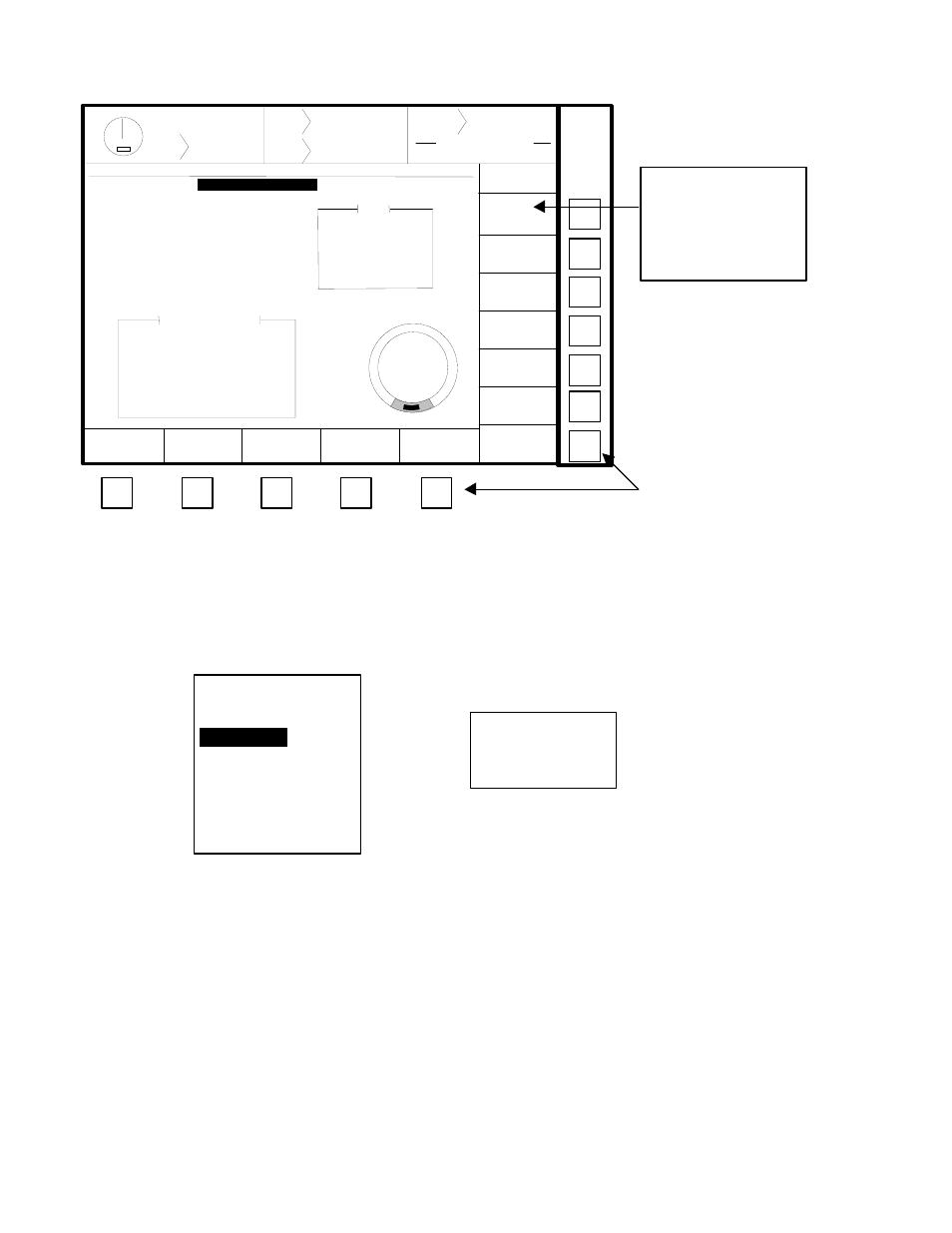

Figure 3.3 The Die Protection Channel Settings Screen in Program Mode
When the Channel Type setting is selected, the upper right softkey legend is CHANGE SETTING.
Pressing the CHANGE SETTING softkey will cause a list box to appear as on the screen as shown
in Figure 3.4, and the upper right softkey legend will change to SELECT. The arrow keys are used
to highlight the desired item on the list after which the SELECT softkey is pressed to enter the
selected item and remove the list box.
Figure 3.4 List Box for Die Protection Type and SELECT Softkey
2. A CHANGE NAME softkey will appear on the screen when a description or name setting is
selected. In some cases, a screen showing a list of default names or descriptions commonly used for
the setting will appear when this softkey is pressed, allowing selection of a name or description to
enter by pressing a SELECT softkey that appears for this type of setting. In addition, you may edit
(change) existing or unnamed items on the list by selecting the item and pressing an EDIT NAME
softkey on the screen after your selection. In this case, another popup menu, the Text Entry menu,
will appear that allows you to enter letters, numbers, and spaces for the name or description selected.
This also can be illustrated by use of the Die Protection Channel Settings screen. If the setting for
Description is selected, the upper right softkey legend will be CHANGE NAME. Pressing this key
causes the Die Protection Names screen to appear as shown in figure 3.5
