Information Center

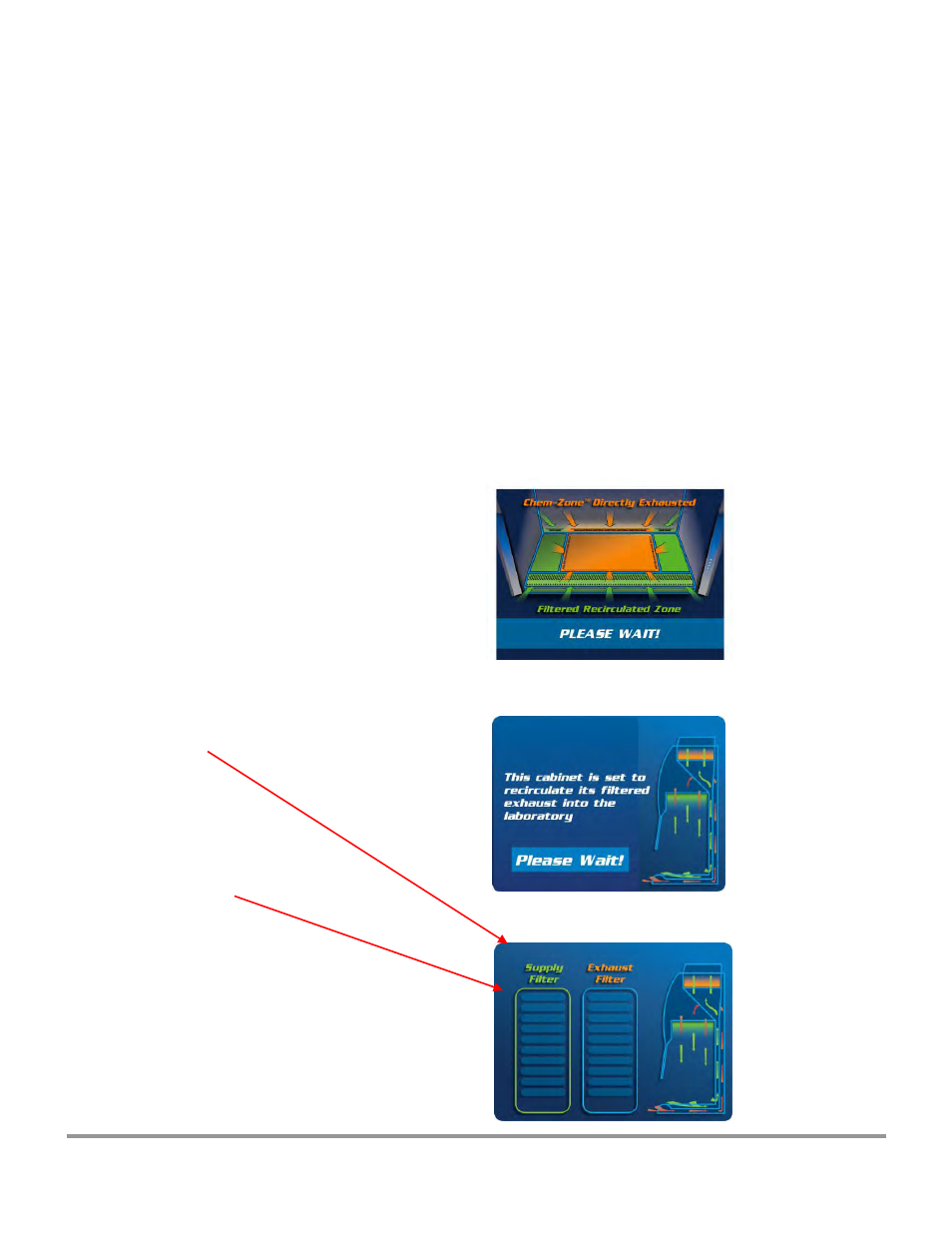

The Information Center is an LCD display located on the right side wall at eye level.
When the blower is started, if the Axiom is configured to be connected to an exhaust
system, Figure 4-2a will appear for 60 seconds while the unit initiates operation.
If the unit is not connected to an exhaust system, screen 4-2b will appear for the first
60 seconds of operation. After 60 seconds, the default display screen will appear. The
display provides a clock, the life remaining for both filters, the cabinet’s current status,
inflow velocities (if equipped with the optional airflow sensor), as shown in Figure 4-3.
In the event of an alarm, the Information Center will immediately display a context
sensitive display indicating the cause of the alarm, and possible solutions, as shown in
Figures 4-4a-f.
The display will enter sleep mode, turning itself off, one minute after the blower is
turned off or the sash is closed.
Clock
Filter Life
Figure 4-2a
Figure 4-2b
10:03
Figure 4-3
