Grille Removal
Note: The grille must be thoroughly decontaminated before removing it.
1. Remove the work surface as described earlier.
2. At one end of the grille, grip the front of grille with one hand, and the back with
the other hand. Pivot that end of the grille upward and inward, paralleling the
angle of the sash, as shown in Figure 6-20.
3. Pull the other end of the sash up and away from the bottom edge of the cabinet.
4. Reinstall the grille by reversing the above sequence, ensuring that the grille
properly engages the bottom edge of the cabinet.

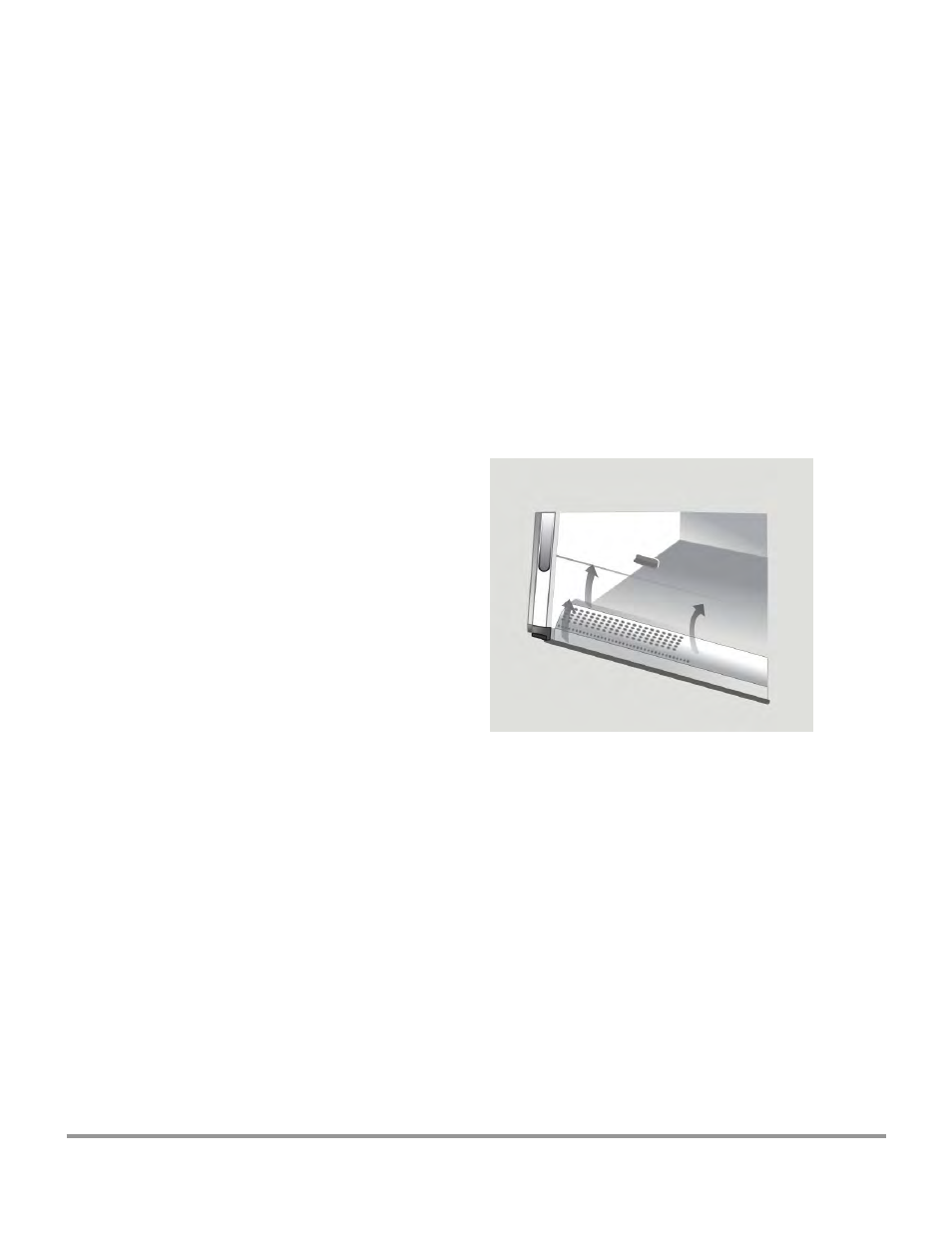

Figure 6-20
