Center Work Surface Removal
Note: The work surface must be thoroughly decontaminated before removing it from
the cabinet.
1.
Lift either of the wing work surfaces up by grasping the knob handles at either
front corner.
2.
This will lift up the center work surface. Lift the front edge up, pivoting the work
surface on its back edge until the front edge of the work surface engages the catch
located on the back wall of the work area.
3.
Reinstall the work surface by supporting it while lifting up on the catch to release
the work surface. Gently lower the center work surface, being sure to engage the
pins on the front corners of the work surface with the holes in the grille, as shown in
Figure 6-19.
Wing Work Surfaces Removal
Note: The work surfaces must be thoroughly decontaminated before removing it from
the cabinet.
1.
Lift the front edge of either wing work surface straight up by grasping the knob
handles. This will raise the front edge of the center work surface.
2.
Lift the front edge up, pivoting the work surface on its back edge until the front
edge of the work surface engages the catch located on the back wall of the work
area.
3.
Lift and pull both wing work surfaces out.
4.
Reinstall the wing work surfaces by engaging the tab on the back corner of the
work surface with the slot on the rear wall of the work area. Ensure that the flange
on the inside edge of the wing work surface fits
outside
of the center work surface
pan, as shown in Figure 6-19. Reinstall the work surface by supporting it while lifting
up on the catch to release the work surface. Gently lower the center work surface,
being sure to engage the pins on the front corners of the work surface with the
holes in the grille, as shown in Figure 6-19a.

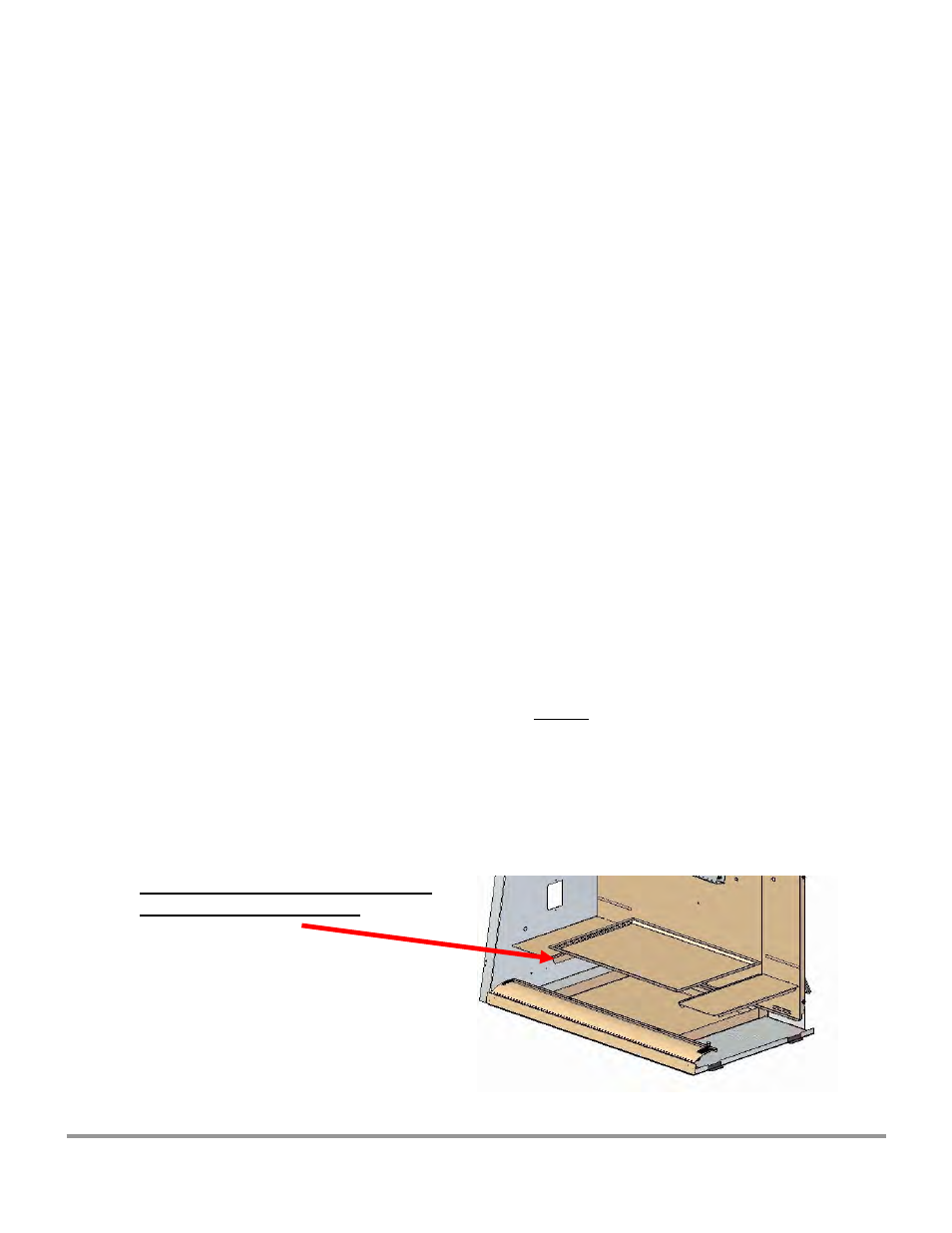

This flange goes OUTSIDE of the
center work surface pan.
Figure 6-19
