Flow Cell Stabilization:

Flow Cell Stabilization:
Mount the flow cell to a rigid surface with hardware provided.
When selecting location, provide space for removal of the probe from the
flow cell.
Mount the flow cell so that the probe (when installed) will be located between
vertical and 45° with the sensors facing down.
Direct the outlet piping upward a minimum of 50 mm (2”) so that bubbles do
not settle on the measuring sensors.
Install 5/8”ID tubing onto barbed fittings.
Do not restrict flow at the outlet as the flow cell may exceed pressure rating.

PPPPProbe Installation in the Flow Cell:

robe Installation in the Flow Cell:

•Remove probe shield from probe body.
•Insert probe through locking cap and slide locking cap up probe body.

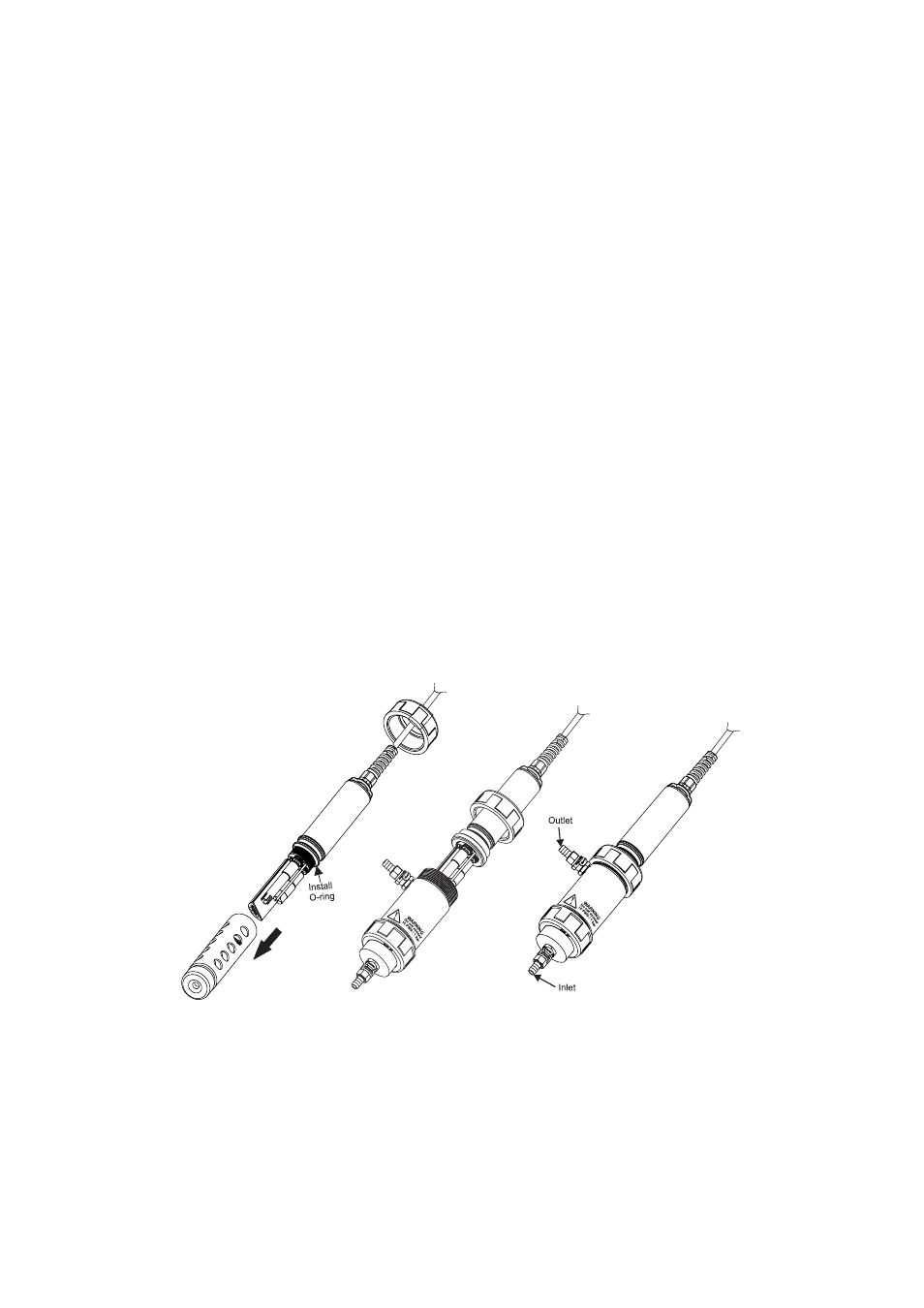

•Install o-ring on probe body (see figure) and lubricate with grease provided in
probe maintenance kit.
•Thread the adapter bushing on probe and tighten as required.
