91
Advanced Operation
¢ When using the power amplifier as the ZONE2/ZONE3 output
• When the power amplifier is assigned to the ZONE2 or ZONE3 output channel at “Power Amp Assign” in the “System Setup
Menu”, the MAIN ZONE speaker terminals can be used as the ZONE2 or ZONE3 speaker out terminals ( page 116, 117).

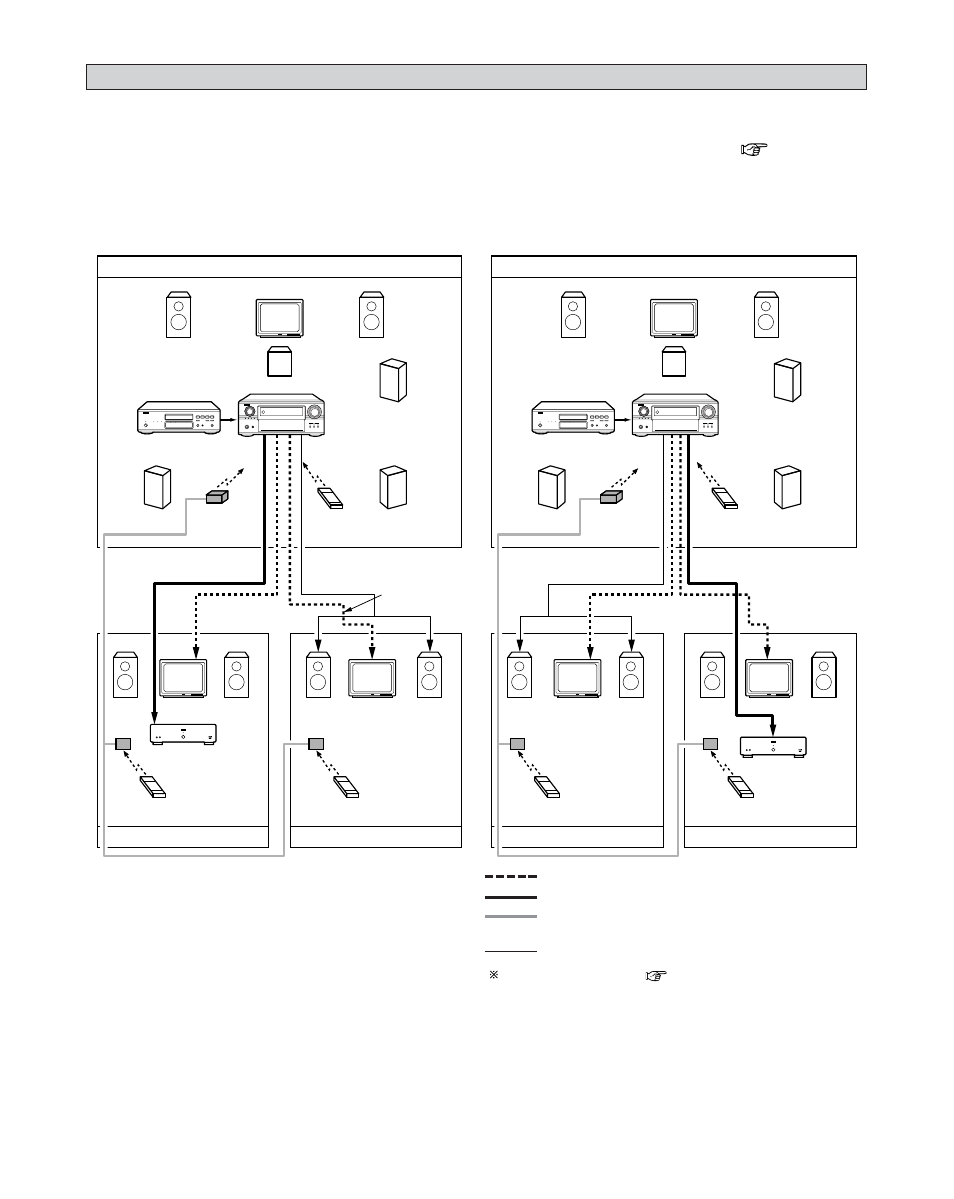

[System configuration and connections example]
Using external amplifier as the ZONE2 and using this AVR-
4806CI internal amplifier as the ZONE3.
[System configuration and connections example]
Using this AVR-4806CI internal amplifier as the ZONE3 and
using external amplifier as the ZONE2.
AVR-4806CI AVR-4806CI
DVD player
Input
RC-616
Monitor
Monitor Monitor Monitor
MAIN ZONE 5.1-channel systems
ZONE 2 ZONE 3
ZONE2
AUDIO OUT (VARIABLE OUT) MULTI ZONE
SPEAKER OUT
ZONE2
VIDEO OUT
RC-617
Power Amplifier
RC-617
SYSTEM REMOTE
CONTROL UNIT RC-1036
PROGRAMMABLE
REMOTE CONTROL UNIT PROGRAMMABLE
REMOTE CONTROL UNIT
DVD player
Input
RC-616
Monitor
Monitor
MAIN ZONE 5.1-channel systems
ZONE 2 ZONE 3
ZONE3
AUDIO OUT (VARIABLE OUT) MULTI ZONE
SPEAKER OUT
ZONE2 VIDEO OUT
RC-617 RC-617
SYSTEM REMOTE
CONTROL UNIT RC-1036
PROGRAMMABLE
REMOTE CONTROL UNIT PROGRAMMABLE
REMOTE CONTROL UNIT
ZONE3
VIDEO OUT ZONE3
VIDEO OUT
C
FL FR
SL
SW
SR
B
B
C
FL FR
SL
SW
SR
B
B
: MULTI SOURCE AUDIO signal cable
: MULTI SOURCE VIDEO signal cable
: ROOM-TO-ROOM REMOTE CONTROL SYSTEM
(separately sold) control line
: SPEAKER cable
Refer to “Connections” ( page 41).
Multi-zone playback using the SPEAKER terminals
