Cleaning the Shuttle Race
This area must be kept free of dust, iint and
occasional tangled thread Clean the shuttle race area
about every three months,
0

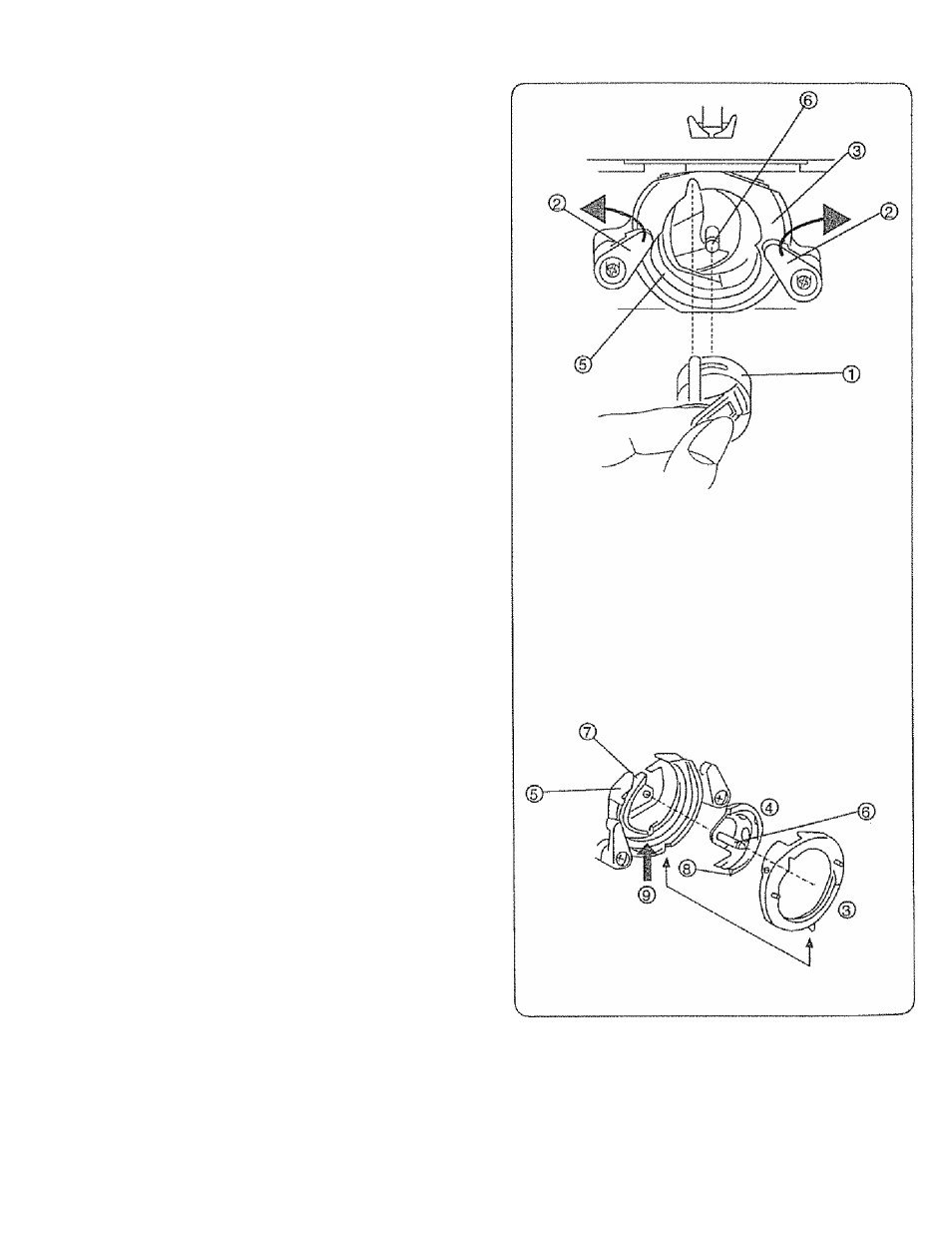

Cleaning the shuttle area
(J) Bobbin case
(D Levers
(D Shuttle race cover
0 Shuttle
(D Shuttle race
d) Center pin on the shuttle
@ Shuttle driver
(D Pointed hook
@ (Oil here)
1 , Raise the needle bar to its highest point and remove the
bobbin case 0,
2 Push shuttle race levers 0 aside Lift shuttle race
cover @ and take shuttle @out.
3. Clean the shuttle race (gjwith a lint brush
4, Put a drop of oil on the center pin of the shuttle (|) and
shuttle race (E) Do not over oil
=> Replacing shuttle assembly
0 Bobbin case
(g) Levers
(3) Shuttle race cover
0 Shuttle
0 Shuttle race
® Center pin on the shuttle
® Shuttle driver
® Pointed hook
@ (Oil here)
1 Position shuttle race © as illustrated so that shuttle
driver ® Is forming half moon on the left side of the
machine
2 Hold shuttle 0 by center pin ® and position shuttle so as
to form a half moon on the right side The pointed hook®
will be on the bottom
3 Place shuttle race cover ® into place over shuttíe
assembly
4. Snap the levers (D back into the original position
