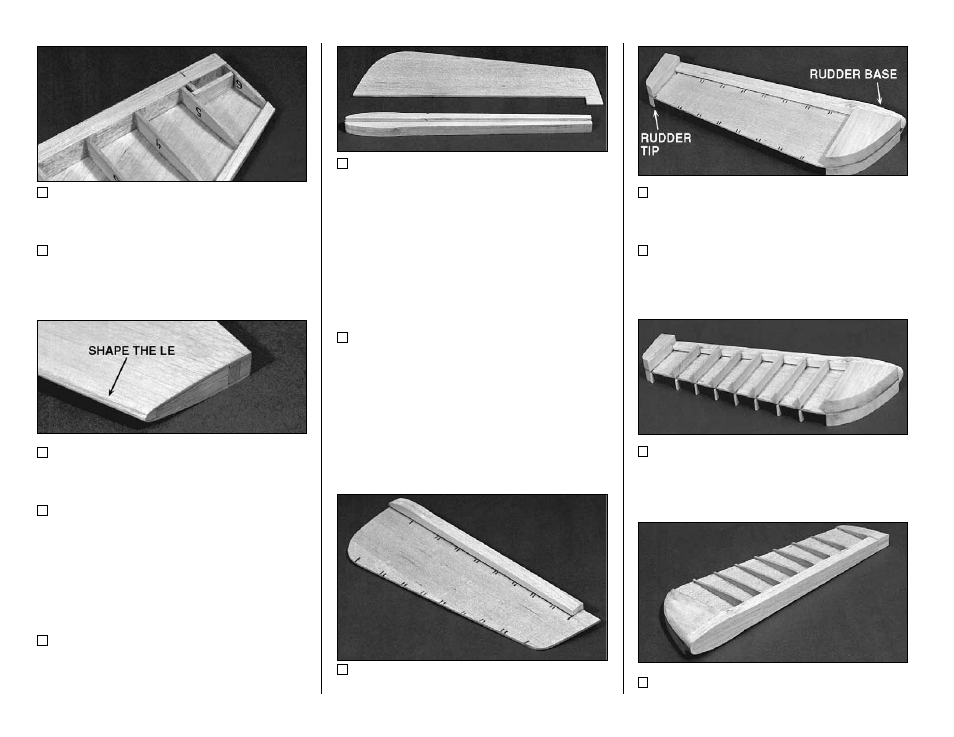

12. If you are adding scale balance tabs, add
the simple additional structure as shown in the
photo. (Parts not included).
13. Glue on the right skin.
14. True up the edges of the fin sheeting with
a sanding block. Shape the LE to match the
cross section on the plans.
15. Glue the shaped 3/4" balsa fin tip to the
top of the fin. Use a razor plane and a sanding
block to do the initial shaping of the tip. Final
shaping should be done later, with the fin taped to
the rudder.
BUILD THE RUDDER
1. Glue the two die-cut 1/4" balsa Rudder
LE’s together with medium CA. Even up the
edges with a sanding block, but save any tapering
for later.
2. Draw a centerline on the aft surface of the
LE. Draw two parallel lines 1/16" away from both
sides of the centerline.
3. Align the die-cut 3/32" balsa Rudder Plate
(RP) over the plans and mark the “Rib” locations
on both sides of the rudder plate. (See the photo
below.)
4. Hold the Rudder Plate centered on the
rudder LE. Apply thin CA to the joint.
5. Glue the two 1/2" thick shaped balsa
Rudder Tips to both sides of the top of the
rudder plate.
6. Glue the two 1/2" thick shaped balsa
Rudder Bases to both sides of the bottom of the
rudder plate.
7. Cut “ribs” from the 3/32" x 1/2" x 30"
balsa sticks and glue them onto both sides of the
rudder at the locations you previously marked.
8. Refer to the photos and the cross sections
