Top Flite TOPQ7903 User Manual
1/5 scale replica radial engine

The following procedure covers the assembly and modifications
required for a flying model. No modification is required for static display
models.
❏
1. Trace or photocopy the Baffle Template from your plans onto a 10"
x 10" sheet of 1/8" lite-ply (not included). Cut around the circumference
and the engine opening with a scroll or coping saw.
❏
2. Trim the Radial to fit the lite-ply baffle with a hobby knife
or scissors.
❏
3. Cut away the prop shaft opening from the center of the Radial.
Smooth the edges with a round file or drum sander.
❏
4. Tape the Radial to the baffle, then test fit the assembly inside the
cowl. If necessary, sand the baffle and Radial for a good fit.
❏
5. (Flight Modification) Trim away one or more of the plastic cylinders
to allow air flow across the “real” engine head.
❏
6. Drill a 1/8" hole through each of the raised marks around the
perimeter of the crankcase and also through the bottom of each rocker
arm cover. Drill a 1/16" hole through the dimple near the top of each
cylinder.
❏
7. Use #240-grit sandpaper to lightly sand the full length of the 6
plastic tubes for better glue and paint adhesion. Cut 18 pieces 2-1/2"
long to use for the push rod tubes.
❏
8. Sand the 16" wire, then cut 1-3/4" long pieces to use for the
ignition leads. Make a 90° bend 3/8" from one end.
WARNING
Do not attempt to start your engine unless the Radial has been modified to permit cooling airflow to the engine!
See text for more information.
ASSEMBLY AND FINISHING INSTRUCTIONS
TOOLS AND SUPPLIES REQUIRED
❏
1/8" x 10" x 10" Lite Ply
❏
6-Minute Epoxy
❏
Hobby Knife with # 11 Blade
❏
Small Paint Brushes
❏
1/16" and 1/8" Drill Bits
❏
Scroll or Coping Saw
❏
Paint (see painting instructions)
❏
#100 & 240-grit Sandpaper
❏
Round File or 1/2" Drum Sander
❏
Hand Drill or Dremel
®
MultiPro
❏
Rubber Cement or Spray Adhesive
❏
CA - Medium
ASSEMBLY
PARTS LIST
❏
(1) ABS Plastic Radial
RADIAL05
❏
(6) 8" Plastic Push Rod Tubes
PLTB025
❏
(1) 16" Wire for Ignition Leads
WIRES58
❏
(1) Instruction Sheet
RADIALP05

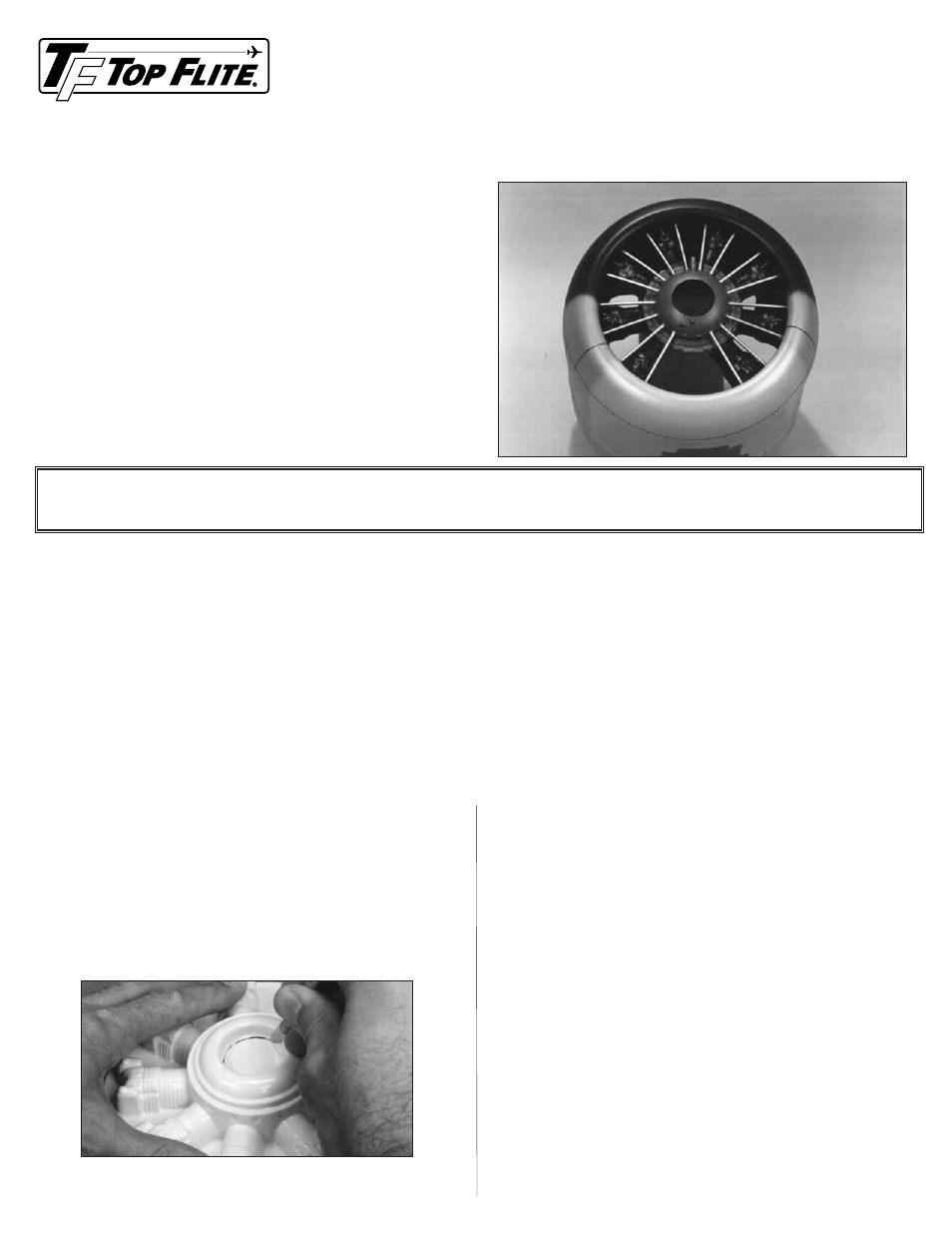

The Top Flite
®
Replica Radial Engine (hereafter referred to as
Radial) is patterned after the Pratt & Whitney radial engines that
powered numerous aircraft from the Golden Age of aviation.
Modeled to fit the Top Flite Giant F4U Corsair, this 1/5th scale
Radial will fit any cowls with a frontal opening of 8" to 9-1/4". Not
only does the Radial enhance scale appearance, but it also serves
as an air-flow baffle for more efficient engine cooling.
Copyright © 2012
PRINTED IN USA
RADIALP05
1/5 SCALE
REPLICA RADIAL ENGINE
