CMG Router - Release 2.7 4-13
Profile Directory:Local Profile
Static Networks
4. Select or . Select [C TRL A] to add a
Static Network.
Static Networks Fields
Network
Enter the address of the destination network for the route that you are adding. Static networks
reached via a remote Adit must be configured through the corresponding Remote (WAN)
Profile Setup screen. Those configured through the Local (LAN) Profile Setup screen can be
reached via the local LAN. If this is an IP network, enter the value in dotted decimal notation.
If this is an IPX network, enter the appropriate value in hexadecimal notation.

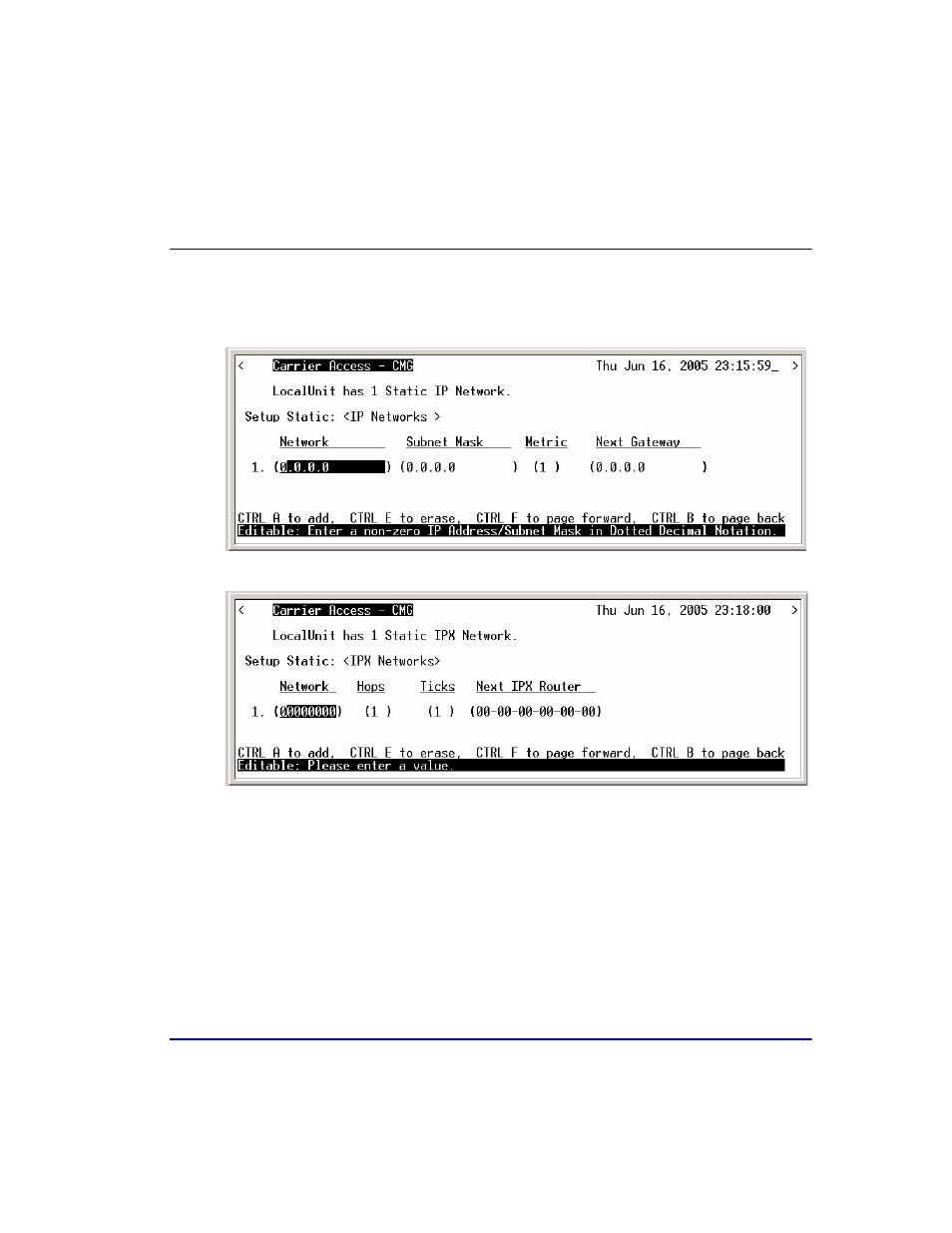

Static
Networks
Setup (IP)
Static
Networks
Setup (IPX)
