4-20 CMG Router - Release 2.7
Profile Directory:Local Profile
Filters
4. Press [C TRL A] to enable filters that have been defined. See the following
sections on Defining Custom, Protocol and Address Filters.
Filters Fields
Forward Mode
This field determines what data to pass/not to pass, based on this field value and the filters listed
on the current window. There are two available values which determine how the Adit will
handle data to/from the LAN:
<All Frames NOT Matching Filters> any packets matching the filters listed will not be
passed (i.e., pass all frames except those matching the enabled filters).
<ONLY Frames Matching Filters> enabled filters will have the PASS action. All packets
matching the filters listed will be passed to/from the LAN. Any packets that do not match will
be dropped (i.e., will not pass through the Adit).
Define Filter
Use this field to open the Define Filter window for the selected filter type. To open this window
select the filter type and select
[E NTER ] . The filter windows are used to define the actual filter
prior to enabling (adding) it on the current window.
<Custom> see Defining Custom Filters on page 4-22
<Protocol> see Defining Protocol Filters on page 4-23
<Address> see Defining Address Filters on page 4-24
Filter Type
This field value represents the type of filter , or

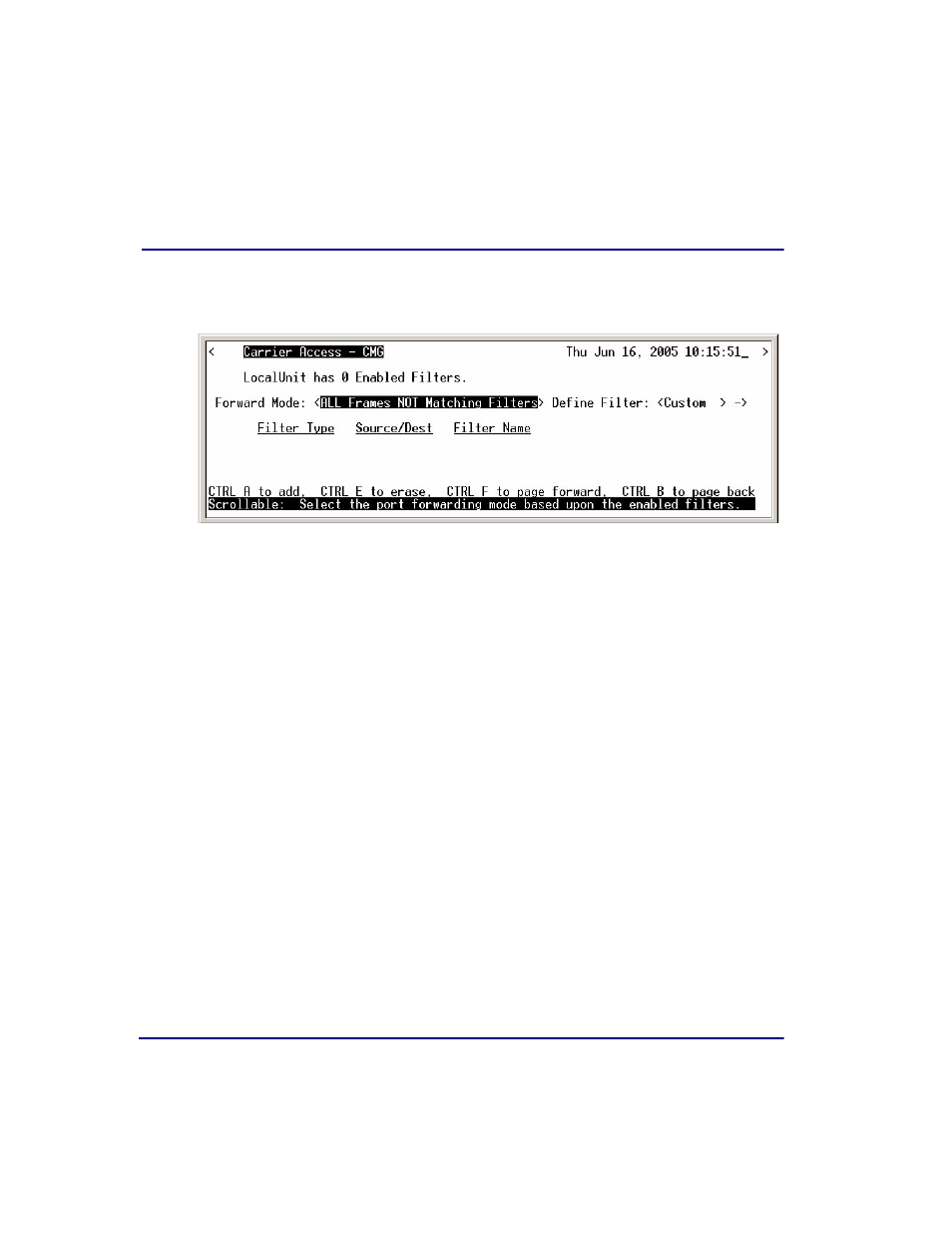

Enabled
Filter
Window
