5-20 CMG Router - Release 2.7
Profile Directory:Remote Profile
Static NAT Addresses
Static NAT Addresses
Use this window to configure Static Bi-directional NAT mappings between local server
addresses and public addresses.
NOTE: Up to 16 Static NAT addresses can be configured. Each Static NAT
address filter will count toward the maximum number of 500 filters.
1. On the Main Menu, press [T
AB
] until Configuration is
highlighted.
2. Select WAN on the RemoteUnit line and press [E NTER ].

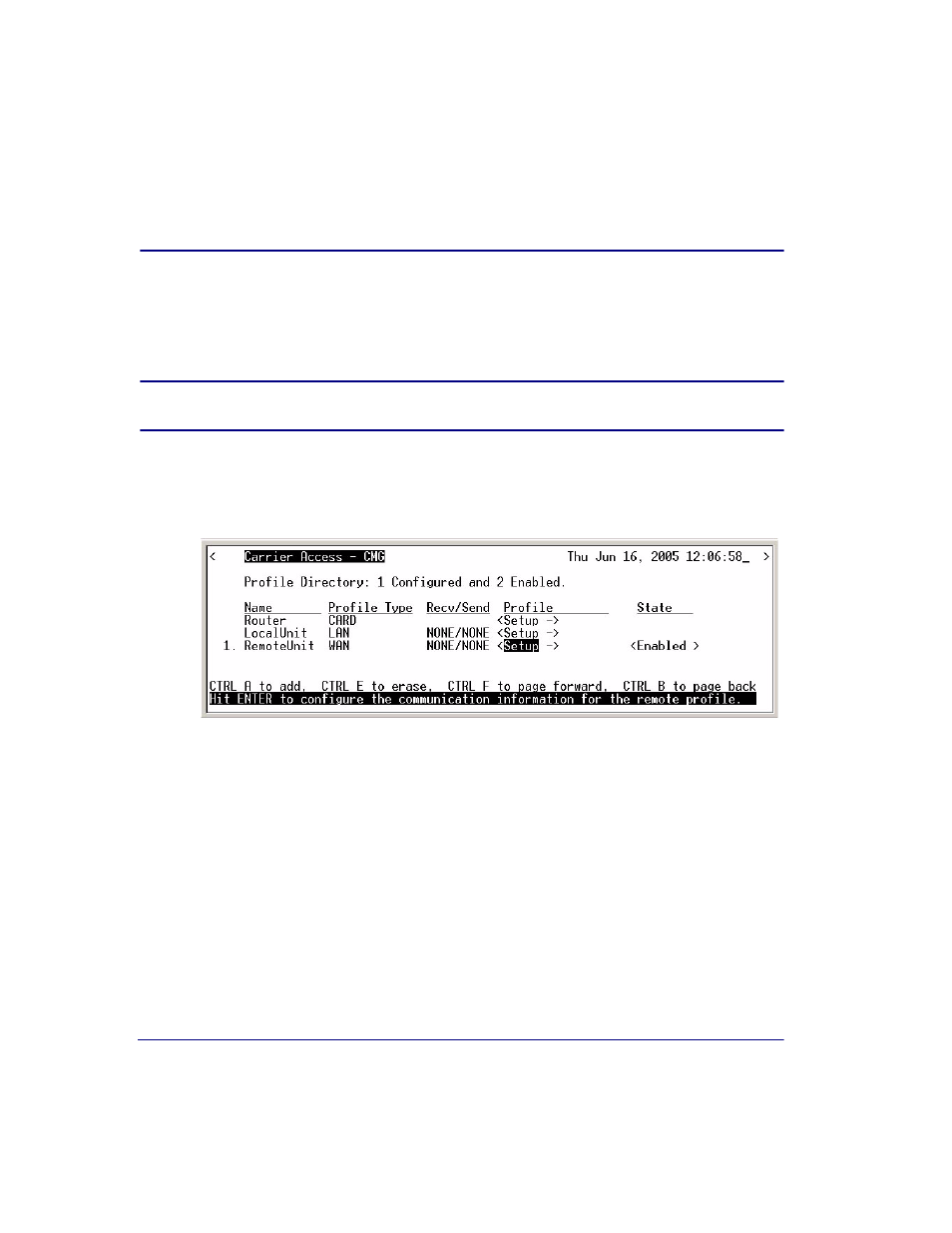

Profile
Directory
Window
