Carrier Access CMG Router - Manual (Page 122)

4-36 CMG Router - Release 2.7
Profile Directory:Local Profile
LAN Collision Threshold
LAN Collision Threshold
Use the options on this window to define the sample interval for data collection of
collisions, the Hi and Lo thresholds for raising and clearing Collision alarms. It will
also display if there is a current alarm active and the number of collisions that have
occurred during the defined sample interval.
1. Select Configuration from the Main menu, select
[E NTER ].
2. Select LAN < Setup -> and select [E NTER ].

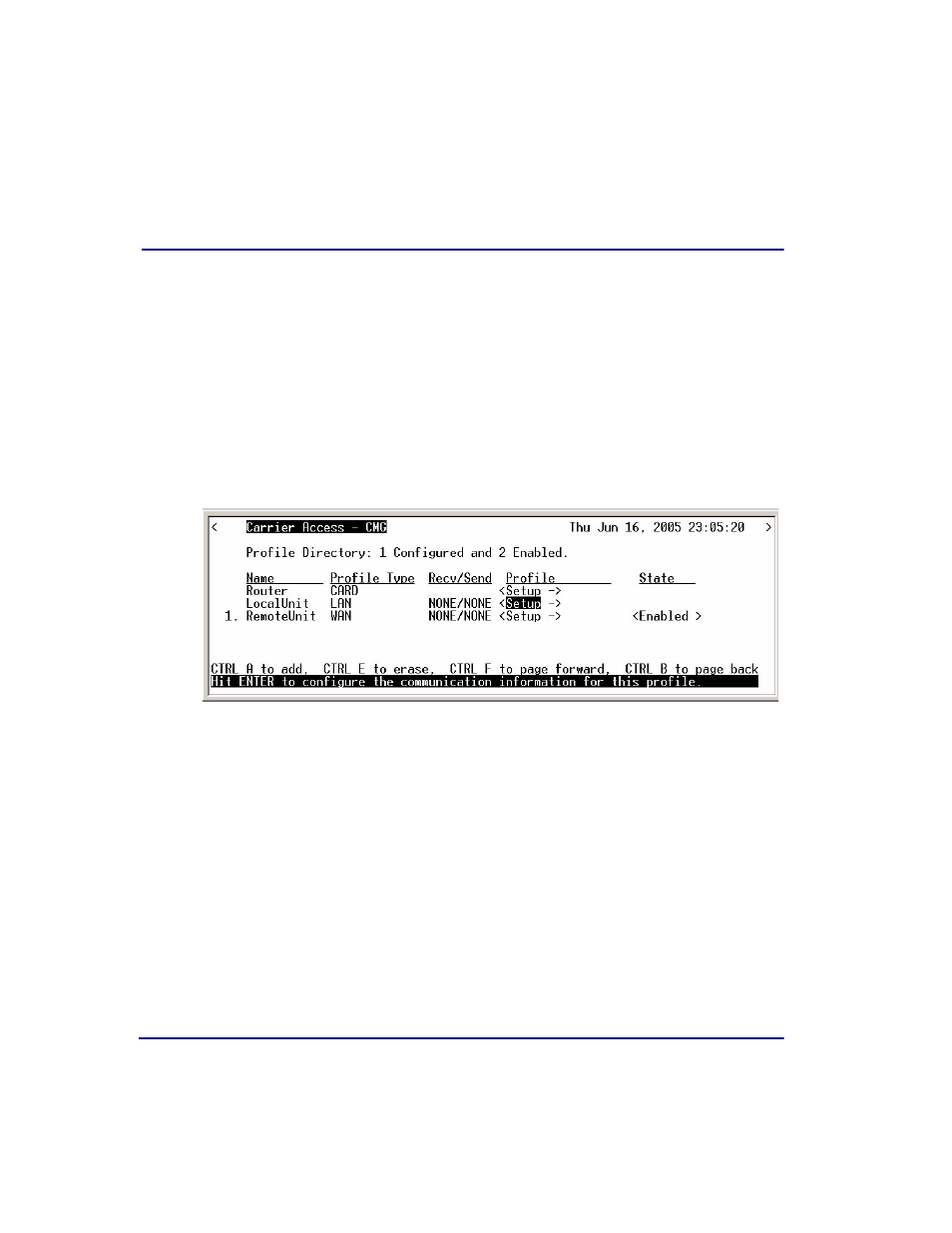

Profile
Directory
Window
