Reznor ADFH Option - Installation - Roof Curbs Assembly - Manual (Page 5)

Form I-OPT-C, P/N 132900 R17, Page 5
Weights by Cabinet Size*
- Downflow Roof Curb
Option CJ31
* See chart on page 2 for cross-
reference by Model Size or Model
and Heat Size to Cabinet Size.
Option CJ31
Roof Curb
Weight
Cabinet Size * A B C
lbs 93 105 235
kg 42 48 107
Cabinet
Size*
RECB, RECC Model
Size *
REDB, REDC Model Size *
* Electric
Heat Size
Illustration Codes - FIGURE 1C
A B C D E F G H J K L M
Curb Dimensions for Cooling/Electric Heat Makeup Air Model RECB, RECC, REDB, REDC by Cabinet Size and Model Size - inches (±1/8)
A 060, 078, 090, 118, 120, 136 084, 102, 114, 142, 144, 162
All
available
N/A N/A 24 12 24 12 38-5/8 13-1/4 17-1/2 12-7/8 72-3/4 12-1/4
B
078, 090, 118, 120, 136, 160,
186, 200
084, 102, 114, 142, 144, 162, 184,
196, 210, 222, 224, 236, 257
N/A N/A 36 12 36 12 53-5/8 13-1/4 17-1/2 12-7/8 72-3/4 12-1/4
C 190, 216, 298, 410
248, 262, 272, 288, 354, 370,
468, 482
10-3/4 49-1/2 47 18 45 15 65-1/8 20-1/4 24-3/4 17-7/8 101-5/8 13-1/4
Curb Dimensions for Cooling/Electric Heat Makeup Air Model RECB, RECC, REDB, REDC by Cabinet Size and Model Size - mm (±3)
A 060, 078, 090, 118, 120, 136 084, 102, 114, 142, 144, 162
All
available
N/A N/A 610 305 610 305 981 337 445 327 1848 311
B
078, 090, 118, 120, 136, 160,
186, 200
084, 102, 114, 142, 144, 162, 184,
196, 210, 222, 224, 236, 257
N/A N/A 914 305 914 305 1362 337 445 327 1848 311
C 190, 216, 298, 410
248, 262, 272, 288, 354, 370,
468, 482
273 1257 1194 457 1143 381 1654 514 629 454 2581 337
1.2 Roof Curb for MAPS ® III&IV A, B, and C Cabinet with Vertical (Down) Airflow WITH an Optional
Energy Recovery Module, Option ER1A, ER1B, ER1C (Roof Curb Option CJ34)
Roof Curb P/N by Model/Size
See Model
Size / Cabinet
Size Cross
Reference on
page 2.
Cabinet A Cabinet B Cabinet C
RCB/RCC/RDB/RDC w/Option ER1 - All Cabinet A - - All Cabinet B 190, 216, 248,
262, 272, 288
-
298, 410, 354,
370, 468, 482
-
RDCB/RDCC/RDDB/RDDC w/Opt ER1 100 150 200 250 300 400 500 600 700
RECB/REDB/RECC/REDC w/Opt ER1 - All Cabinet A - - All Cabinet B - - All Cabinet C -
Roof Curb (Option CJ34) Package P/N 262478 262479 262480 262481 262482 262483 262484 262485 262486
Code (FIGURE 2A) Component Description: Qty Component P/N's
A Curb Ends (unit & ER end) 2 204486 204487 208799
B Curb Sides (under unit) 2 204485 208798
C1 Supply Air Duct End 1 204431 204432 207961 207960 207959 207958
C2 Supply Air Duct End 1 204431 204432 207965 207964 207963 207962
D1 Supply Air Duct Side 1 204433 204434 204436 204435 204437 207967
D2 Supply Air Duct Side 1 204433 204434 204436 204435 204437 207967 207971
E Return Duct End 1 204438 204439 207966
F Return Duct Side 1 204440 204441 207974
G Return Duct Side Angle 1 204444 207973
H Return Duct Rear Angle 1 204442 204443 207972
J Curb End (unit end in center) 1 261995 261996 260855
K Tunnel (between unit & ER) 1 261993 261994 260856
L Right Curb Side (under ER) 1 262411 262418
M Left Curb Side (under ER) 1 262412 262419
A
B
B
C1
C2
D2 E
F
G
H
D1
A
J
K
L
M
(2 per each corner)
1” Lag Screw and
Lockwasher
(2 per each corner)
3/4” Hex Head
Cap Screws with
Lockwashers & Nuts
Curb Section for
Energy Recovery
Module
Curb Section for
MAPS Unit

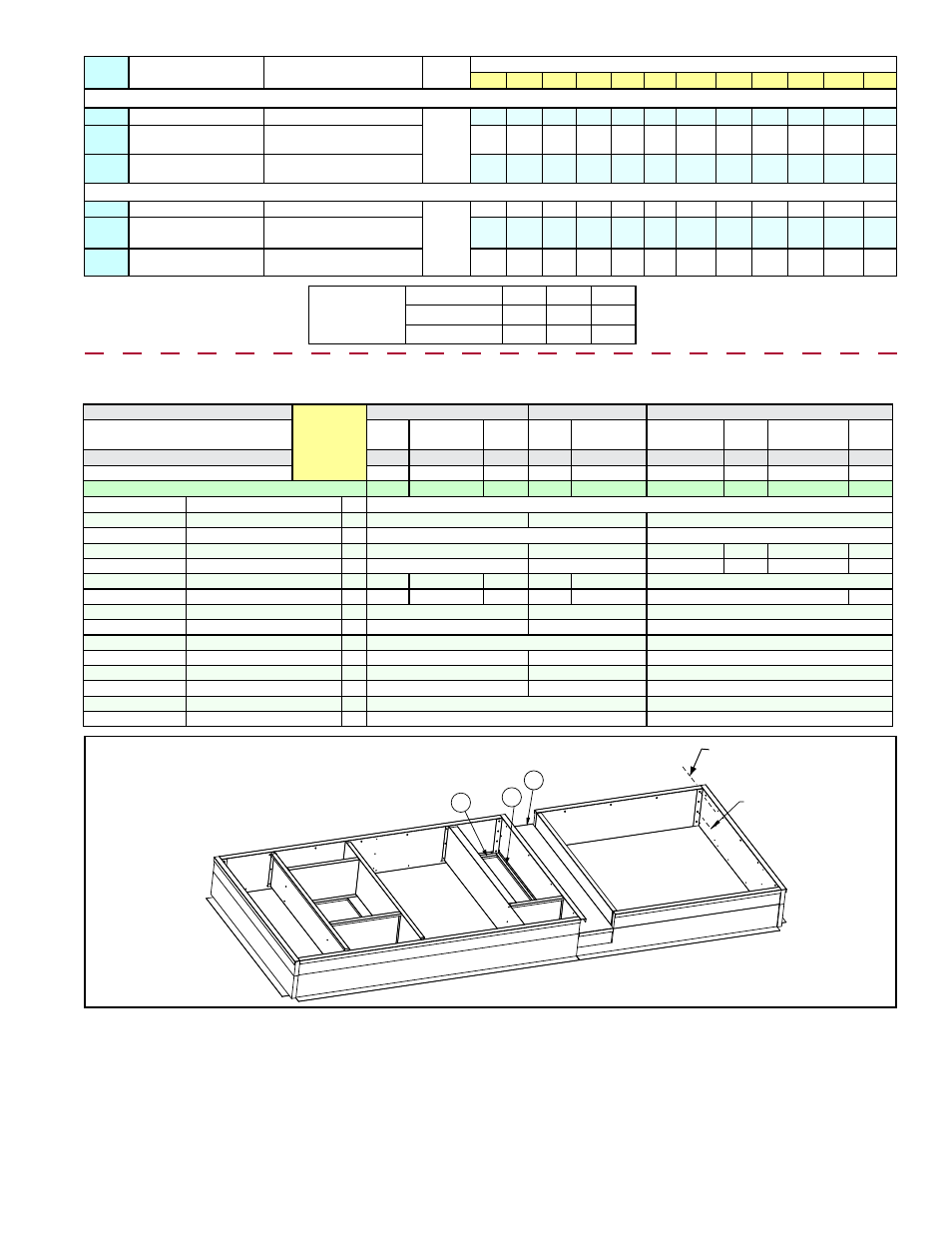

FIGURE 2A - Option CJ34 Roof Curb Components and
Layout for MAPS ® Cabinets A, B, and C with
Energy Recovery Option ER1
NOTES:
•
Curbs in Section 1.2 apply to a MAPS ® unit with an optional energy recovery module. For downflow curb without an
energy recovery module (Option CJ31), go to Section 1.1, page 2.
•
All curbs include corner hardware as listed on page 6 and screws for attaching duct pieces.
•
Integral ducts are designed so that ductwork may be either inserted down from the top or attached from the bottom.
•
Apply sealant tape to tops of supply air "dividers" (C & D) that mate with the blower or heat exchanger opening.
•
Apply sealant tape to tops of return air "dividers" (E, F, G, & H).
•
Apply sealant tape to tops of all curb rails.
•
Curb MUST be level.
