7.0 Roof Curbs for Models YDHA, YDMA, YDSA cont'd
7.2 Roof Curbs for Horizontal Airflow - Options CJ48 & CJ55 cont'd
Hardware with Options CJ48 & CJ55 for Cabinets 1 & 2
Qty P/N Description Use
12 16243 Lag Screw For top level screws (1 each corner; 4 each splice plate). Insert screws
from inside the curb so that they extend into the wood nailer on the outside. 12 1333 Washer
40 16247 Cap Screw
For attaching corners and splice plates below the wood nailer (4 each
corner; 12 each splice plate). Insert screws from outside the curb.
40 1333 Washer
40 1035 Hex Nut
90 11813 Sheetmetal
Screws
For attaching duct plenum sides, bottom, and baffle; and duct flanges.
CAUTION: Before installation, recheck to be sure that the correct curb has been ordered. Be sure
that the curb selected matches the unit ordered. Verify the dimensions of the curb received with the
appropriate dimension table.

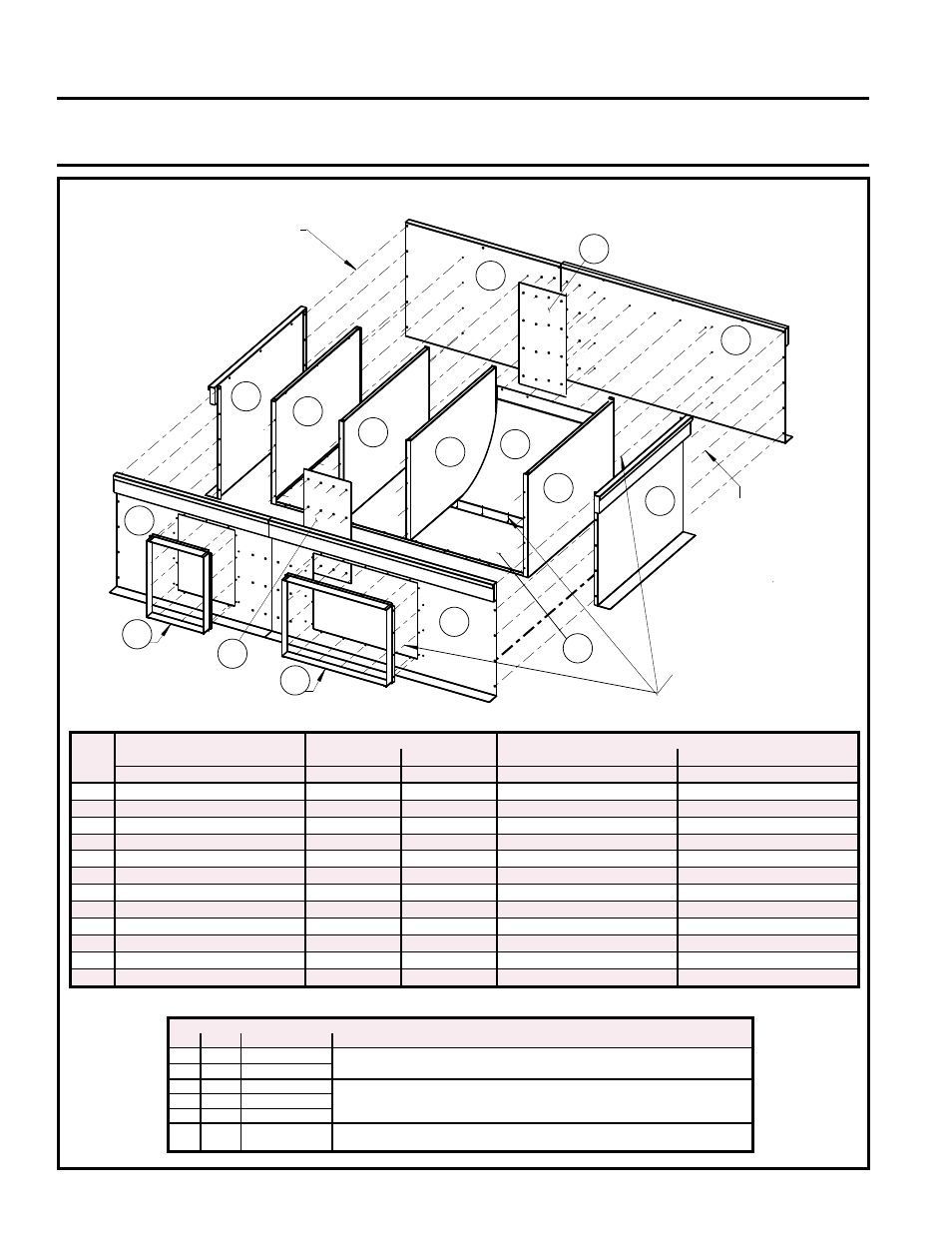

FIGURE 14B - Cabinet Sizes 1 & 2 Components (Horizontal Curb Options CJ48 and CJ55)
Item Description
Curb Option CJ48 Curb Option CJ55 (for a unit with an energy recovery wheel)
Cabinet 1 Cabinet 2 Cabinet 1 Cabinet 2
Package P/N 272400 272404 272402 272406
A End Assembly (2) 271419 (2) 271397 (2) 271419 (2) 271397
B Side Assy (solid/control end) (1) 271396 (1) 271396 (1) 271396 (1) 271396
C Side Assy w/Supply Air Opening (1) 271399 (1) 271399 (1) 271399 (1) 271399
D Side Assy (solid/inlet air end) (1) 271418 (1) 272036 (1) 271427 (1) 271395
E Side Assy w/Return Air Opening (1) 271417 (1) 272035 (1) 271426 (1) 271398
F Splice Plates for Sides (2) 271379 (2) 271379 (2) 271379 (2) 271379
G* “Outer” Sides - Plenum Ducts (2) 271421 (2) 271400 (2) 271421 (2) 271400
H* Plenum Duct Bottom (1) 271420 (1) 271401 (1) 271420 (1) 271401
J* “Inner” Sides - Plenum Ducts (2) 271422 (2) 271402 (2) 271422 (2) 271402
K Air Baffle for Supply Air Plenum (1) 271386 (1) 271386 (1) 271386 (1) 271386
L Supply Air Duct Flange (1) 271403 (1) 271403 (1) 271403 (1) 271403
M Return Air Duct Flange (1) 271404 (1) 271404 (1) 271404 (1) 271404
F
F
K
B
C
L
M
E
D
A
A
H*
G*
G*
J*
J*
(12) each -
16243 Lag Screw
1333 Washer -
through panel
into wood nailer
(40) each -
16247 Cap Screw
1333 Washer
1035 Hex Nut
Sheetmetal Screws
P/N 11813
* Insulated
double-wall
panel.
