Form I-OPT-C, Page 28
5.0 Roof Curbs for Model Series ADF, ADFH; RPB, RPBL, RPDBL; and Blower Cabinet
Model RBL (cont'd)
5.3 Roof Curb
Packages for Model
Series RPDBL -
Follow the roof
curb installation
instructions in
Paragraph 5.1,
Roof Curb Packages
for Model RPDBL
RPDBL 800 1000 1200 1400 1600
Roof Curb Pkg P/N without Downturn 177171 177177 177179 177181
Roof Curb Pkg P/N with Downturn 177172 177178 177180 177182
IMPORTANT NOTE: Model RPDBL systems have a construction steel base and are
not designed to set on a roof curb. If the installation requires a roof curb, either the
factory option or a field-supplied curb, the unit order must specify that the system be
built to go on a roof curb.
Roof Curb Option Packages include corner and splicing hardware and the required
number of factory-assembled curb pieces. All other components required for installa-
tion are field supplied.
2-3/8 (60)
2(51)
2(51)
19-1/2”
(495mm)
19-1/2”
(495mm)
H
Return
Duct
Supply
Duct
Roof Curb (Wid
th of the top of
the curb rails is 1-7/8”/48mm)
2-3/8 (60) 2-3/8 (60)
2(51)
2(51)
19-1/2”
(495mm)
19-1/2”
(495mm)
H
H
G
Return
Duct
Supply
Duct
2-3/8 (60)
13”
(330)
H
G
Airflow
Airflow
B
A
C
D
13”
(330)

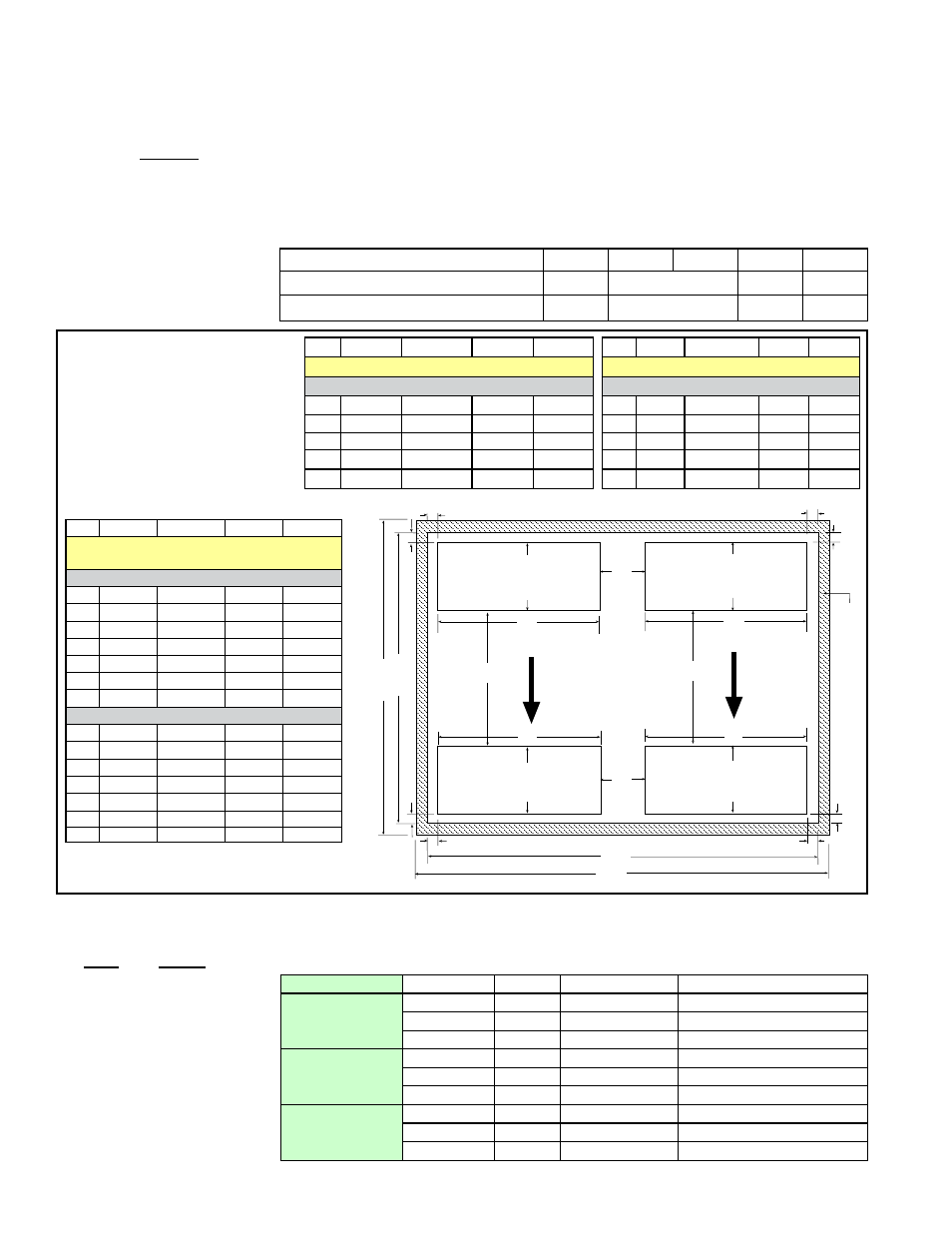

FIGURE 10 - Roof
Curb and Bottom
Outlet Dimensions -
Model RPDBL
DIMENSIONS - RPDBL
*C and D are roof opening
dimensions
Roof Curb Option Packages include hardware and four factory-assembled curb pieces.
All other components required for installation are field supplied.
5.4 Roof Curb Packages
for Model Series
ADF and ADFH
- Follow the roof
curb installation
instructions in
Paragraph 5.1.
Size 800 1000/1200 1400 1600
Option CJ2 - Curb for RPDBL with Factory-
Installed Downturn Plenums, Opt AQ5 or AQ8
Dimensions (inches ± 1/4")
A 116-1/4 94-1/4 105-1/4 116-1/4
B 106-9/16 132-9/16 132-9/16 132-9/16
C* 113 91 102 113
D* 103-5/16 129-5/16 129-5/16 129-5/16
G 60-5/16 86-5/16 86-5/16 86-5/16
H 47-5/8 36-5/8 42-1/8 47-5/8
Wt 354 lbs 386 lbs 398 lbs 410 lbs
Dimensions (mm ± 6)
A 2953 2445 2673 2953
B 2707 3367 3367 3367
C* 2870 2311 2591 2870
D* 2624 3285 3285 3285
G 1532 2192 2192 2192
H 1210 930 1070 1210
Wt 161 kg 175 kg 181 kg 186 kg
Roof Curb Option ADF Series Pkg P/N Curb Side Assy Curb Front and Back Assy
CJ3 - horizontal
discharge
300 104674 (2)104649 (2)104653
500 104676 (2)104649 (2)104655
700/ 1200 124029 (2)124026 (2)104657
CJ6 - vertical
discharge
300 104674 (2)104649 (2)104653
500 104676 (2)104649 (2)104655
700/ 1200 124033 (2)124030 (2)104657
CJ7 - vertical
discharge
300 104674 (2)107258 (2)104653
500 104676 (2)107258 (2)104655
700/ 1200 124033 (2)124030 (2)104657
Roof Curb Package Components for Models ADF/ADFH
Size 800 1000/1200 1400 1600 Size 800 1000/1200 1400 1600
Option CJ1 - Roof Curb for RPDBL Option CJ1 - Roof Curb for RPDBL
Dimensions (inches ± 1/4") Dimensions (mm ± 6)
A 116-1/4 94-1/4 105-1/4 116-1/4 A 2953 2394 2673 2953
B 82-9/16 108-9/16 108-9/16 108-9/16 B 2097 2757 2757 2757
C* 113 91 102 113 C* 2870 2311 2591 2870
D* 79-5/16 105-5/16 105-5/16 105-5/16 D* 2015 2675 2675 2675
Wt 300 lbs 334 lbs 346 lbs 358 lbs Wt 136 kg 152 kg 157 kg 162 kg
