Form I-OPT-C, P/N 132900 R17, Page 29
Curb
Cap
16” (406mm)
Roof Curb
1-1/2”
(38mm)
Lif
t Hole
(all 4 corners
)
A
B
C
D
E
F
Suppl
y Duct
I MPORTANT Note: If roof is constructed of combustible materials, the
area within the curb must be either ventilated, left open, or covered with
non-combustible material which has an "R" value of at least 5.0. If area
within the curb is left open, higher radiated sound levels may result.

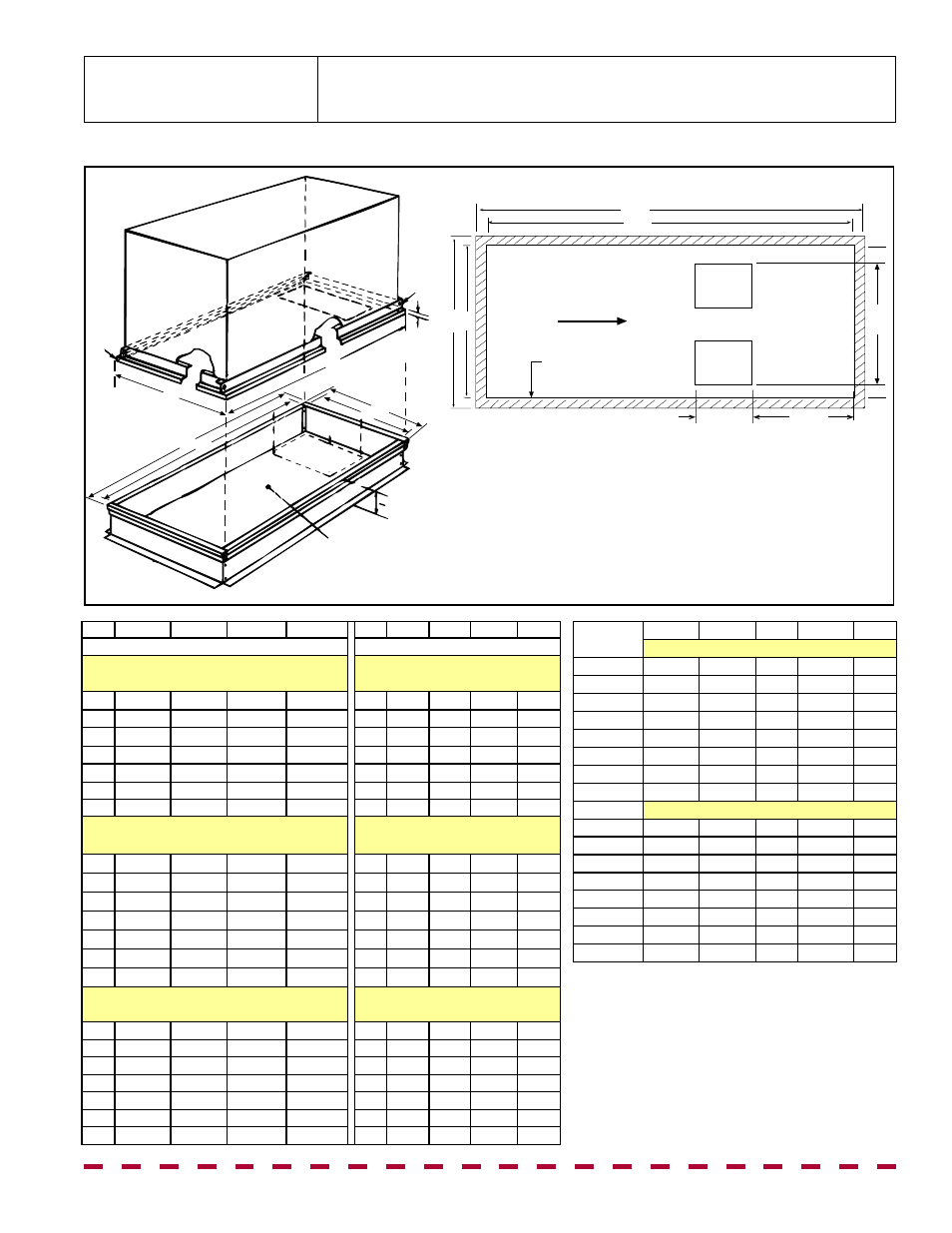

FIGURE 11 - Dimensions (inches ± 1/4"/mm ± 6)
Airflow
Direction
G H
A
C
Reznor Optional Roof
Curb - 1-7/8” (48mm)
top width of all curb rails
B D
Supply
Air
Opening
Supply
Air
Opening
K
L
J
NOTE: Sizes 700 and 1200 have two supply air
openings (as illustrated above) that attach to one
duct. Sizes 300 and 500 have only one supply air
opening.
DIMENSIONS - Models ADF and ADFH
Model
G H J K L
Dimensions (inches)
ADF-300 4-25/32 13-13/16 5-5/8 15-15/16 4-1/2
ADF-500 4-25/32 16-1/16 19-1/4 14-13/16 5-3/4
ADF-700 28-19/32 13-13/16 5-5/16 40-5/16 5-5/16
ADF-1200 28-19/32 16-1/16 5-5/16 40-5/16 5-5/16
ADFH-300 28-19/32 13-13/16 5-5/8 15-15/16 4-1/2
ADFH-500 28-19/32 16-1/16 19-1/4 14-13/16 5-3/4
ADFH-700 28-19/32 13-13/16 5-5/16 40-5/16 5-5/16
ADFH-1200 28-19/32 16-1/16 5-5/16 40-5/16 5-5/16
Model Dimensions (mm)
ADF-300 121 351 143 405 114
ADF-500 121 408 489 376 146
ADF-700 726 351 135 1024 135
ADF-1200 726 408 135 1024 135
ADFH-300 726 351 143 405 114
ADFH-500 726 408 489 376 146
ADFH-700 726 351 135 1024 135
ADFH-1200 726 408 135 1024 135
Size 300 500 700 1200 Size 300 500 700 1200
Dimensions (inches) Dimensions (mm)
Option CJ3 - ADF with
Horizontal Discharge
Option CJ3 - ADF with
Horizontal Discharge
A 84-9/16 84-9/16 90-7/8 90-7/8 A 2148 2148 2308 2308
B 29-13/16 43-9/16 54-1/2 54-1/2 B 757 1106 1384 1384
C* 80-13/16 80-13/16 87-1/8 87-1/8 C* 2053 2053 2213 2213
D* 26-1/16 39-13/16 50-13/16 50-13/16 D* 662 1011 1291 1291
E 31-1/16 44-13/16 55-13/16 55-13/16 E 789 1138 1418 1418
F 85-13/16 85-13/16 92-1/8 92-1/8 F 2180 2180 2340 2340
Wt 118 lbs 133 lbs 152 lbs 152 lbs Wt 54 kg 60 kg 69 kg 69 kg
Option CJ6 - Model ADF with Vertical
Discharge Option AQ1 or AQ3
Option CJ6 - ADF with Vertical
Discharge Option AQ1 or AQ3
A 84-9/16 84-9/16 115-25/32 115-25/32 A 2148 2148 2941 2941
B 29-13/16 43-9/16 54-1/2 54-1/2 B 757 1106 1384 1384
C* 80-13/16 80-13/16 112-1/32 112-1/32 C* 2053 2053 2846 2846
D* 26-1/16 39-13/16 50-13/16 50-13/16 D* 662 1011 1291 1291
E 31-1/16 44-13/16 55-13/16 55-13/16 E 789 1138 1418 1418
F 85-13/16 85-13/16 117-1/32 117-1/32 F 2180 2180 2973 2973
Wt 118 lbs 133 lbs 152 lbs 152 lbs Wt 54 kg 60 kg 69 kg 69 kg
Option CJ7 - ADFH with
Vertical Discharge
Option CJ7 - ADFH with Vertical
Discharge
A 108-1/4 108-1/4 115-25/32 115-25/32 A 2750 2750 2941 2941
B 29-13/16 43-9/16 54-1/2 54-1/2 B 757 1106 1384 1384
C* 104-1/2 104-1/2 112-1/32 112-1/32 C* 2654 2654 2846 2846
D* 26-1/16 39-13/16 50-13/16 50-13/16 D* 662 1011 1291 1291
E 31-1/16 44-13/16 55-13/16 55-13/16 E 789 1138 1418 1418
F 109-1/2 109-1/2 117-1/32 117-1/32 F 2781 2781 2973 2973
Wt 142 lbs 157 lbs 176 lbs 176 lbs Wt 64 kg 71 kg 80 kg 80 kg
*C and D are roof opening dimensions.
Hardware & Tape Shipped
with Roof Curb for Models
ADF/ADFH
( 8) P/N 16247, Cap Screw 5/16"-18 x 3/4" long; (8) P/N 1035, Hex Nut 5/16" - 18;
(8) P/N 16243, Lag Screw 5/16" x 1" long; (16) P/N 1333, Lockwasher 5/16"; and
(1) P/N 66302, 1/4" x 1-1/4" x 50' Foam Sealant Tape
