5.0 Roof Curbs for Model Series ADF, ADFH; RPB, RPBL, RPDBL; and Blower Cabinet
Model RBL - Options CJ1, CJ2, CJ3, CJ4, CJ5, CJ6, CJ7
CAUTION: Before installation, recheck to be sure that the correct curb has been ordered.
Be sure that the curb selected matches the unit ordered. Verify the dimensions of the curb
received with the appropriate dimension table.

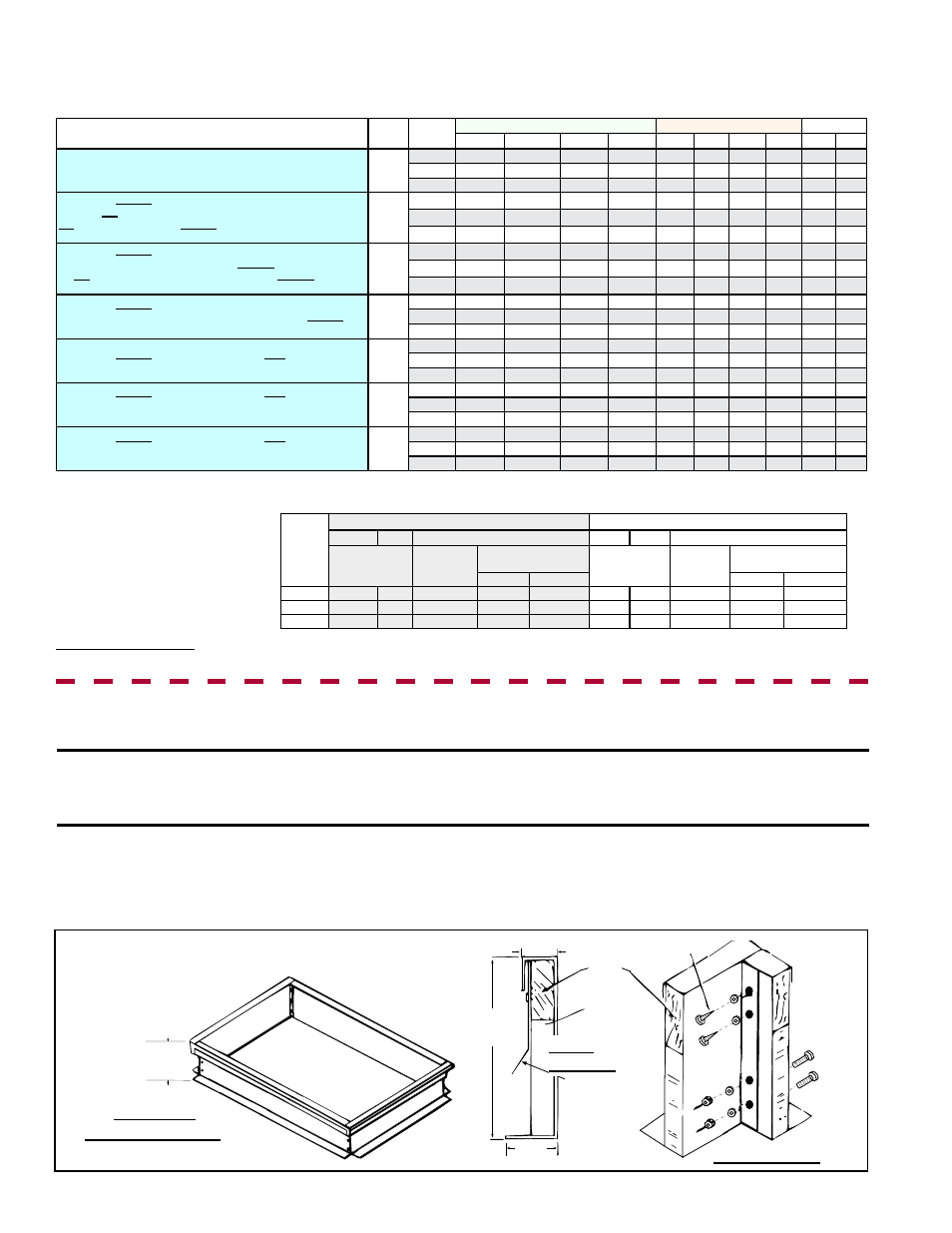

FIGURE 8A - Curb Assembly for Models
listed above
16”
(406mm)
1-7/8”(48mm)
4”
(102mm)
2 x 6
Wood
Nailer
1-1/2 x 3 lb
Fiberglass
Flashed by
the installer
(flashing
must be under
lip of curb)
Lag Screws
Cap
Screws
Corner Detail
Curb
Section
Layout of
Assembled Curb
Dimensions and Weights of Optional Roof Curbs for Model RHH (See FIGURE 7C.)
Model RHH Configuration*
Option
Code
RHH
Inches (±1/8) mm (±3) Weight
A B C D A B C D lbs kg
Model RHH and horizontal discharge CJ8Q
130/180 77-1/2 29-13/16 73-3/4 26-1/16 1,969 757 1,873 662
260 77-1/2 46-1/16 73-3/4 42-5/16 1,969 1,170 1,873 1,075
350 77-1/2 54-1/16 73-3/4 50-5/16 1,969 1,373 1,873 1,278
Model RHH PLUS 1 either Downturn Discharge Plenum (AQ5
or AQ8); OR Mixing Box (MXB1) with horizontal discharge;
OR Cooling Coil Cabinet without Reheat (AU5 or AU6) with
horizontal discharge
CJ8R
130/180 105-1/4 29-13/16 101-1/2 26-1/16 2,673 757 2,578 662
260 105-1/4 46-1/16 101-1/2 42-5/16 2,673 1,170 2,578 1,075
350 105-1/4 54-1/16 101-1/2 50-5/16 2,673 1,373 2,578 1,278
Model RHH PLUS 2 - Down Discharge (AQ 5 or AQ8) AND
Mixing Box OR Cooling Coil Cabinet without Reheat (AU 5 or
6); OR Mixing Box AND Cooling Coil Cabinet without Reheat
(AU 5 or 6) with horizontal discharge
CJ8S
130/180 133 29-13/16 129-1/4 26-1/16 3,378 757 3,283 662
260 133 46-1/16 129-1/4 42-5/16 3,378 1,170 3,283 1,075
350 133 54-1/16 129-1/4 50-5/16 3,378 1,373 3,283 1,278
Model RHH PLUS 3 - Down Discharge Plenum (AQ5 or AQ8)
AND Mixing Box (MXB1) AND Cooling Coil Cabinet without
Reheat (AU5 or AU6)
CJ8T
130/180 160-3/4 29-13/16 157 26-1/16 4,083 757 3,988 662
260 160-3/4 46-1/16 157 42-5/16 4,083 1,170 3,988 1,075
350 160-3/4 54-1/16 157 50-5/16 4,083 1,373 3,988 1,278
Model RHH PLUS 1 - Cooling Coil Cabinet with Reheat (AU7)
with horizontal discharge
CJ8U
130/180 130-1/4 29-13/16 126-1/2 26-1/16 3,308 757 3,213 662
260 130-1/4 46-1/16 126-1/2 42-5/16 3,308 1,170 3,213 1,075
350 130-1/4 54-1/16 126-1/2 50-5/16 3,308 1,373 3,213 1,278
Model RHH PLUS 2 - Cooling Coil Cabinet with Reheat (AU7)
AND Down Discharge Plenum (AQ5 or AQ8) OR Mixing Box
(MXB1) with horizontal discharge
CJ8V
130/180 158 29-13/16 154-1/4 26-1/16 4,013 757 3,918 662
260 158 46-1/16 154-1/4 42-5/16 4,013 1,170 3,918 1,075
350 158 54-1/16 154-1/4 50-5/16 4,013 1,373 3,918 1,278
Model RHH PLUS 3 - Cooling Coil Cabinet with Reheat (AU7)
AND Down Discharge Plenum (AQ5 or AQ8) AND Mixing Box
(MXB1)
CJ8W
130/180 185-3/4 29-13/16 182 26-1/16 4,718 757 4,623 662
260 185-3/4 46-1/16 182 42-5/16 4,718 1,170 4,623 1,075
350 185-3/4 54-1/16 182 50-5/16 4,718 1,373 4,623 1,278
DIMENSIONS (cont'd)
Model
RHH
Dimensions (inches ±1/8) Dimensions (mm ±3)
F H K (with mixing box & downturn) F H K (with mixing box & downturn)
(with mixing box
and/or down
discharge)
no cooling
coil module
with a cooling coil
module
(with mixing box
and/or down
discharge)
no cooling
coil module
with a cooling coil
module
no reheat with reheat no reheat with reheat
130/180 22-7/8 1-9/16 107-3/8 135-1/8 160-1/8 581 40 2727 3432 4067
260 34-3/4 3-3/4 107-3/8 135-1/8 160-1/8 883 96 2727 3432 4067
350 45-13/16 2-1/4 107-3/8 135-1/8 160-1/8 1164 57 2727 3432 4067
5.1 Curb Installation
Instructions for all
Models in Section
5.0
4.0 Roof Curbs for PreevA ® Models RDH, REH, RHH, and RXH (cont'd)
1. Refer to the curb assembly drawings (FIGURE 8A ) and the curb drawing and
dimensions for the model being installed [See ADF and ADFH, pages 28-29; RPB,
RPBL, and RBL, pages 24-27; RPDBL, page 28 . ].
2. Position curb end rails and curb side rails as shown in the typical layout and in the
illustration for each model type.
Dimensions for
Locations of Bottom
Duct Connections as
shown in FIGURE 7C
for Model RHH
IMPORTANT NOTE: To ensure proper operation of a Model RHH, the opening through the roof must be the same
area as the inside dimension of the roof curb. Inside area of the roof curb under a Model RHH must be open.
*Configuration may also include an evaporative cooling module. The evaporative cooling module does not affect the length of the
roof curb.
