Form I-OPT-C, Page 22
Roof Curb Dimensions and Weights - Models RDH, REH, & RXH (without hot water heat)

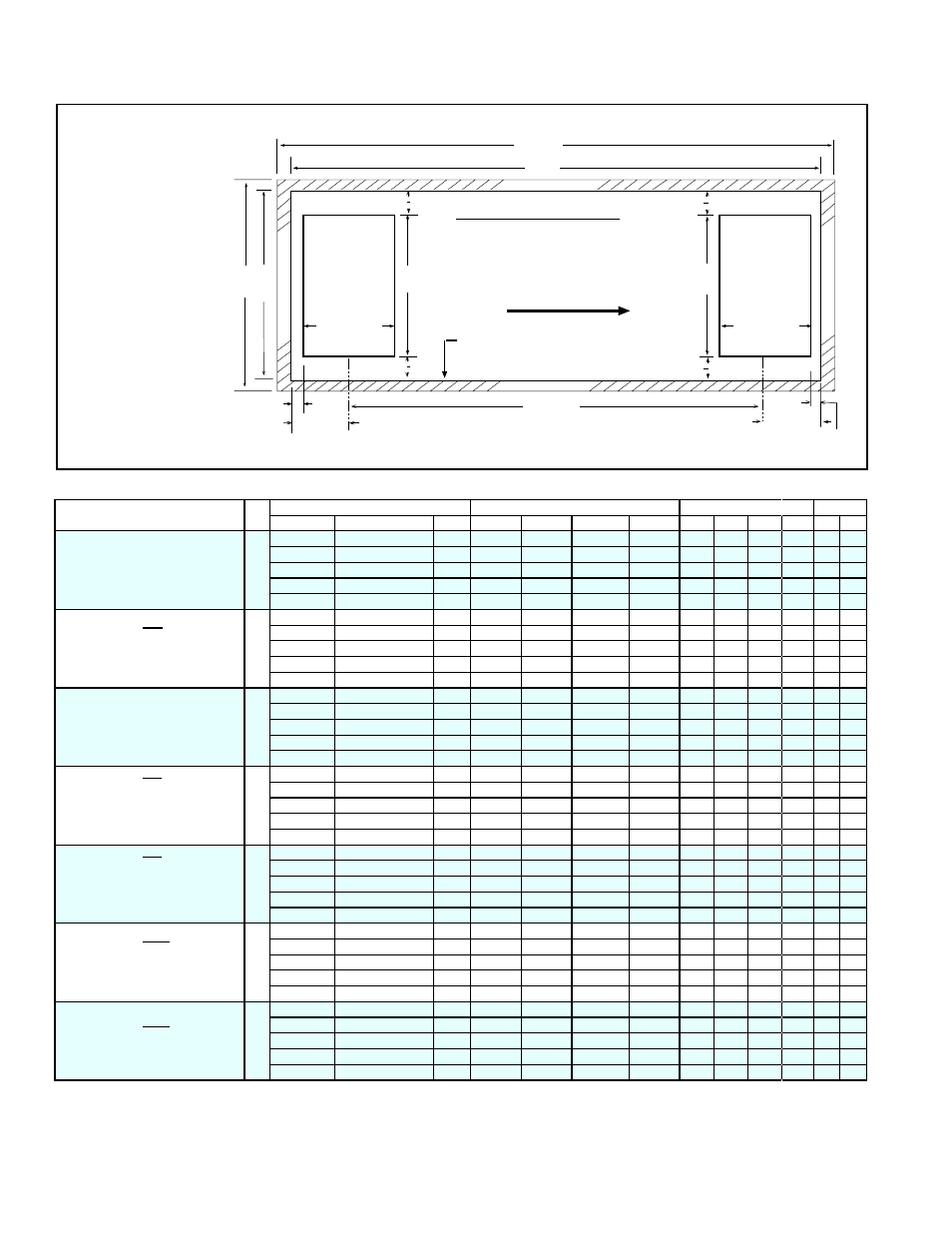

FIGURE 7C - Dimensions - Roof Curb for PreevA ® Models RDH, REH, RXH, RHH
F
18-3/8”
(467mm)
Airflow Direction
Optional
Return Air
Opening in
Mixing Box
(has a 3/4”
duct flange)
Optional
Downturn
Discharge
Opening
(has a 3/4”
duct flange)
18-3/8”
(467mm)
F
cL
cL
K 1-3/4”
(44mm)
10-15/16” (278mm)
of opening
of opening
1-3/4”
(44mm)
10-15/16” (278mm)
H
H
H
H
Reznor® Optional Roof Curb - 1-7/8”
(48mm) top width of all curb rails.
Height is 16” (406mm).
A
B
C
D
Curb Side Rail
Curb Side Rail
Curb End (Cross Rail) Curb End (Cross Rail)
Model RHH Special NOTE: The
internal area enclosed by the roof
curb under a Model RHH high-
efficiency unit must be open. For
other models, see NOTE left for
requirements.
PreevA ® Unit Configuration *
Opt
CJ
for Model and Size Inches (±1/8) mm (±3) Curb Wt
RDH REH RXH** A B C D A B C D lbs kg
Model RDH or REH Basic Unit ONLY
(blower and heat section)
and
Model RXH Basic Unit ONLY
(blower and plenum section)
8A
75/100 10A/20A/30A 000A 51-13/16 29-13/16 48-1/16 26-1/16 1316 757 1221 662 90 41
125/150 15B/30B/60B 000B 51-13/16 39-13/16 48-1/16 36-1/16 1316 1011 1221 916 101 46
175/200/225 N/A 000C 67-1/2 29-13/16 63-3/4 26-1/16 1715 757 1619 662 107 49
250/300 30D/60D/90D/120D 000D 67-1/2 46-1/16 63-3/4 42-5/16 1715 1170 1619 1075 125 57
350/400A 40E/80E/120E 000E 67-1/2 54-1/16 63-3/4 50-5/16 1715 1373 1619 1278 134 61
Basic unit PLUS one optional
module -- either Downturn Plenum,
OR Mixing Box, OR Cooling Cabinet
Module without Reheat (AU5 or
AU6)
8B
75/100 10A/20A/30A 000A 79-9/16 29-13/16 75-13/16 26-1/16 2021 757 1926 662 120 54
125/150 15B/30B/60B 000B 79-9/16 39-13/16 75-13/16 36-1/16 2021 1011 1926 916 131 59
175/200/225 N/A 000C 95-1/4 29-13/16 91-1/2 26-1/16 2419 757 2324 662 138 63
250/300 30D/60D/90D/120D 000D 95-1/4 46-1/16 91-1/2 42-5/16 2419 1170 2324 1075 155 70
350/400A 40E/80E/120E 000E 95-1/4 54-1/16 91-1/2 50-5/16 2419 1373 2324 1278 164 74
Basic unit PLUS a Cooling Cabinet
Module with Reheat (AU7 or AU8)
8E
75/100 10A/20A/30A 000A 104-9/16 29-13/16 100-13/16 26-1/16 2656 757 2561 662 149 68
125/150 15B/30B/60B 000B 104-9/16 39-13/16 100-13/16 36-1/16 2656 1011 2561 916 160 73
175/200/225 N/A 000C 120-1/4 29-13/16 116-1/2 26-1/16 3054 757 2959 662 167 76
250/300 30D/60D/90D/120D 000D 120-1/4 46-1/16 116-1/2 42-5/16 3054 1170 2959 1075 184 83
350/400A 40E/80E/120E 000E 120-1/4 54-1/16 116-1/2 50-5/16 3054 1373 2959 1278 193 88
Basic unit PLUS two optional
modules -- either Downturn Plenum
AND Mixing Box or Cooling Cabinet
Module w/o Reheat (AU 5 or 6), OR
Mixing Box AND Cooling Cabinet
Module w/o Reheat (AU 5 or 6)
8C
75/100 10A/20A/30A 000A 107-5/16 29-13/16 103-9/16 26-1/16 2726 757 2631 662 151 68
125/150 15B/30B/60B 000B 107-5/16 39-13/16 103-9/16 36-1/16 2726 1011 2631 916 162 73
175/200/225 N/A 000C 123 29-13/16 119-1/4 26-1/16 3124 757 3029 662 168 76
250/300 30D/60D/90D/120D 000D 123 46-1/16 119-1/4 42-5/16 3124 1170 3029 1075 186 84
350/400A 40E/80E/120E 000E 123 54-1/16 119-1/4 50-5/16 3124 1373 3029 1278 195 88
Basic unit PLUS two optional
modules -- either Downturn Plenum
AND Cooling Cabinet Module with
Reheat (AU7 or AU8), OR Mixing
Box AND Cooling Cabinet Module
with Reheat (AU7 or AU8)
8F
75/100 10A/20A/30A 000A 132-5/16 29-13/16 128-9/16 26-1/16 3361 757 3266 662 180 82
125/150 15B/30B/60B 000B 132-5/16 39-13/16 128-9/16 36-1/16 3361 1011 3266 916 191 87
175/200/225 N/A 000C 148 29-13/16 144-1/4 26-1/16 3759 757 3664 662 197 89
250/300 30D/60D/90D/120D 000D 148 46-1/16 144-1/4 42-5/16 3759 1170 3664 1075 215 98
350/400A 40E/80E/120E 000E 148 54-1/16 144-1/4 50-5/16 3759 1373 3664 1278 224 102
Basic unit PLUS three optional
modules -- Downturn Plenum, AND
Mixing Box, AND Cooling Cabinet
Module without Reheat (AU5 or
AU6)
8D
75/100 10A/20A/30A 000A 135-1/16 29-13/16 131-5/16 26-1/16 3431 757 3335 662 181 82
125/150 15B/30B/60B 000B 135-1/16 39-13/16 131-5/16 36-1/16 3431 1011 3335 916 192 87
175/200/225 N/A 000C 150-3/4 29-13/16 147 26-1/16 3829 757 3734 662 199 90
250/300 30D/60D/90D/120D 000D 150-3/4 46-1/16 147 42-5/16 3829 1170 3734 1075 216 98
350/400A 40E/80E/120E 000E 150-3/4 54-1/16 147 50-5/16 3829 1373 3734 1278 225 102
Basic unit PLUS three optional
modules -- Downturn Plenum, AND
Mixing Box, AND Cooling Cabinet
Module with Reheat (AU7 or AU8)
8G
75/100 10A/20A/30A 000A 160-1/16 29-13/16 156-5/16 26-1/16 4066 757 3970 662 210 95
125/150 15B/30B/60B 000B 160-1/16 39-13/16 156-5/16 36-1/16 4066 1011 3970 916 221 100
175/200/225 N/A 000C 175-3/4 29-13/16 172 26-1/16 4464 757 4369 662 228 103
250/300 30D/60D/90D/120D 000D 175-3/4 46-1/16 172 42-5/16 4464 1170 4369 1075 245 111
350/400A 40E/80E/120E 000E 175-3/4 54-1/16 172 50-5/16 4464 1373 4369 1278 254 115
4.0 Roof Curbs for PreevA ® Models RDH, REH, RHH, and RXH (cont'd)
DIMENSIONS
** Dimensions for Model RXH above do not apply to a Model RXH with a hot water heat module. For dimensions with a hot water
heat module (Option HW2), see chart onf page 23.
IMPORTANT NOTE -
Models RDH, REH, and
RXH with Hot Water
Heat: The area enclosed
by the roof curb must
comply with clearance to
combustible materials.
If roof is constructed of
combustible materials,
the area within the curb
must be either ventilated,
left open, or covered
with non-combustible
material which has an
“R” value of at least 5.0.
If the area within the
curb is left open, higher
radiated sound levels
may result.
*Configuration may also include an evaporative cooling module. The evaporative cooling module does not affect the length of the
roof curb.
