71M6533- DB Demo Board User’s Manual
Page: 12 of 75 ` REV 3
Configure button. Port speed and flow control are configured under the General tab (Figure 1-4, left), bit settings
are configured by pressing the Configure button (Figure 1-4, right), as shown below. A setup file (file name
“Demo Board Connection.ht”) for HyperTerminal that can be loaded with File  Open is also provided with the
tools and utilities.
Port parameters can only be adjusted when the connection is not active. The disconnect
button, as shown in Figure 1-3 must be clicked in order to disconnect the port.

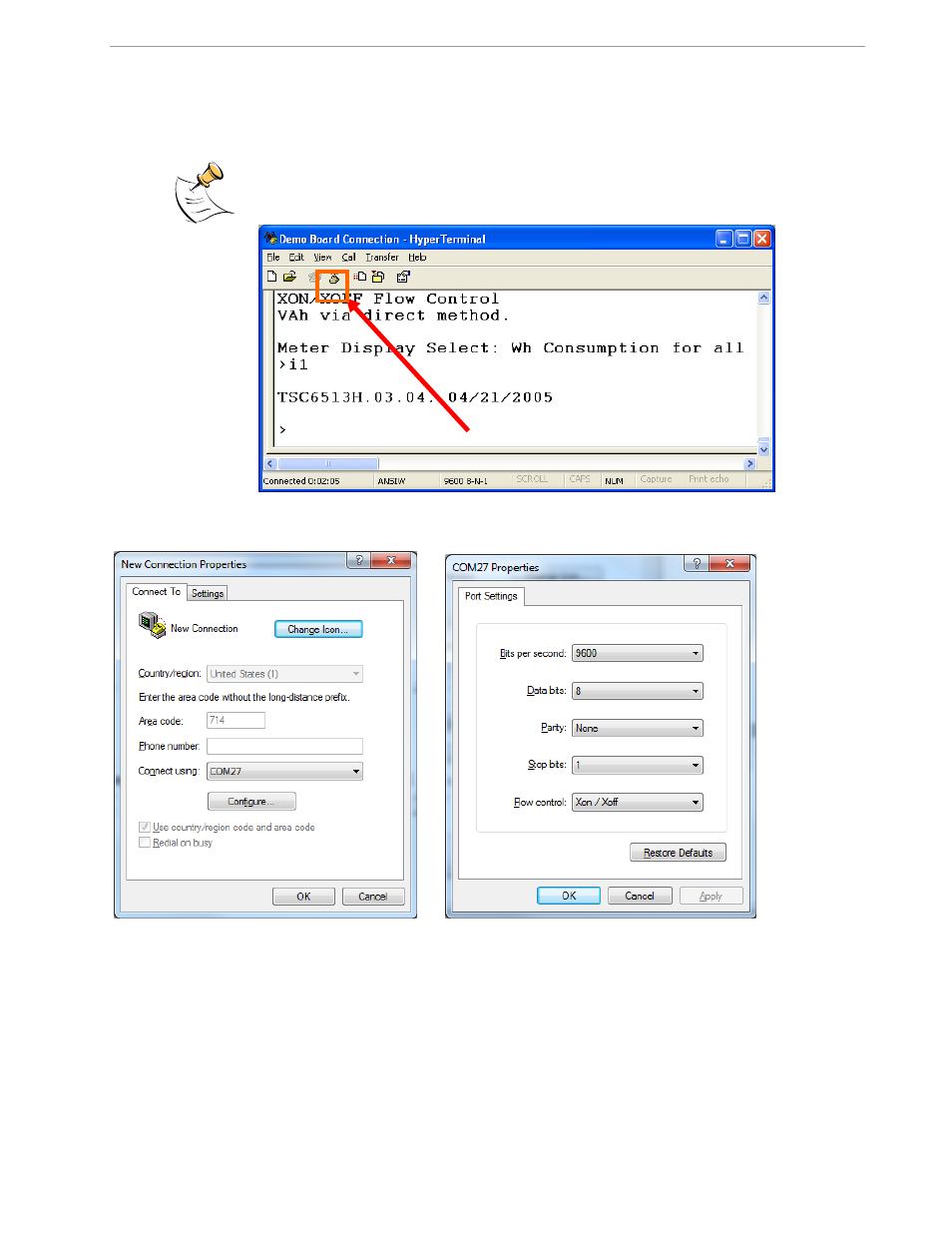

Figure 1-3: Hyperterminal Sample Window with Disconnect Button (Arrow)
Figure 1-4: Port Speed and Handshake Setup (left) and Port Bit setup (right)
Once, the connection to the demo board is established, press and the command prompt, > , should
appear. Type >? to see the Demo Code help menu. Type >i to verify the demo code revision.
