Example of electrical connection of c-pro 3 mega – EVCO EPH4EXP Hardware manual User Manual
Page 33
EVCO S.p.A.
c-pro 3 | Hardware manual ver. 3.2 | Codice 114CP3E324
page 33 of 116

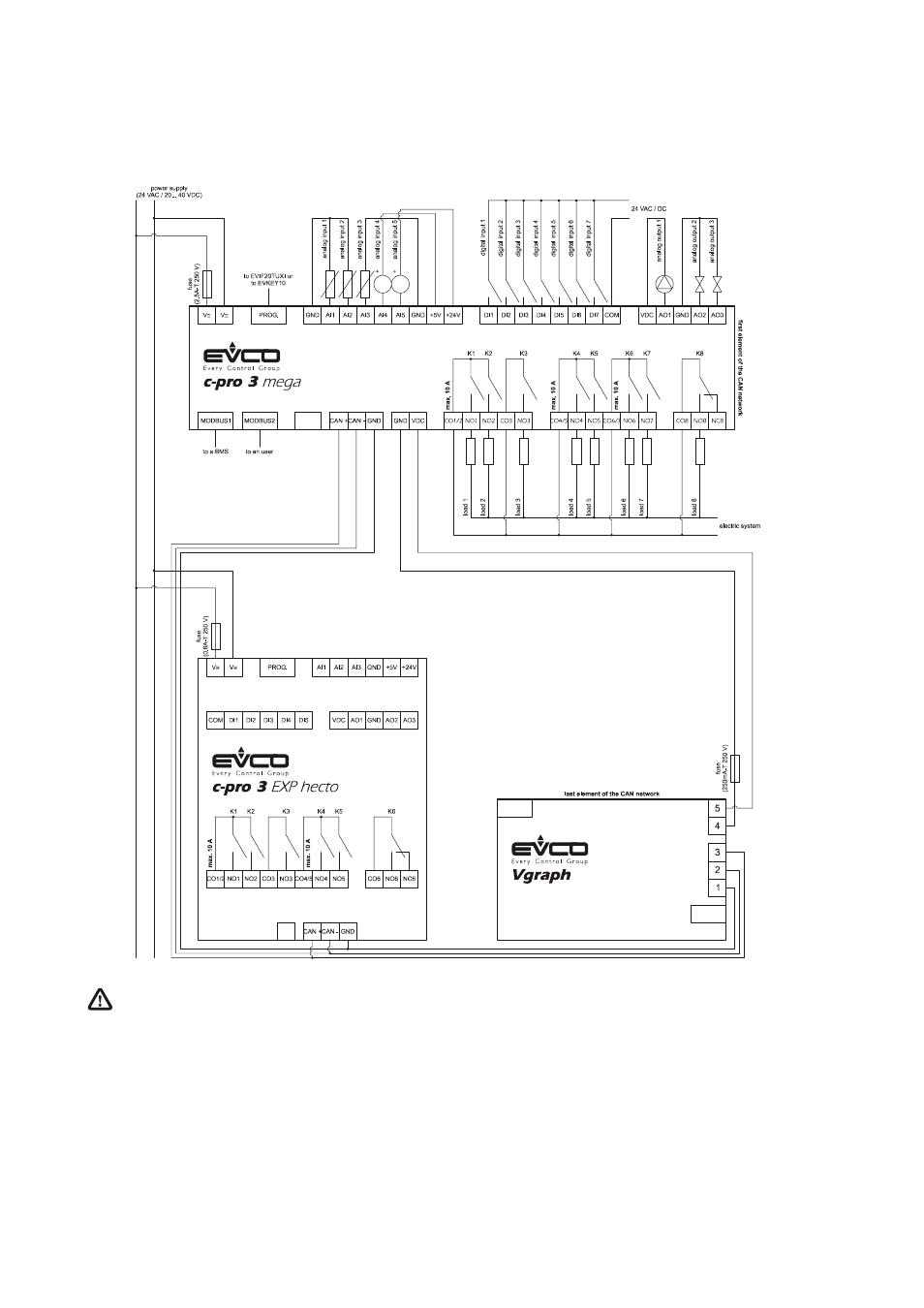

4.2.2. Example of electrical connection of c-pro 3 mega
The following drawing shows an example of electrical connection of c-pro 3 mega.
To reduce the reflections on the signal transmitted through the cables connecting the devices each other, plug in the
termination of the CAN port of the first and of the last element of the network.
