EVCO S.p.A.

Vcolor 338 S | Installer manual ver. 1.2 | Code 144VC338SE124

page 10 of 50

3

ELECTRIC CONNECTION

3.1

Electric connection

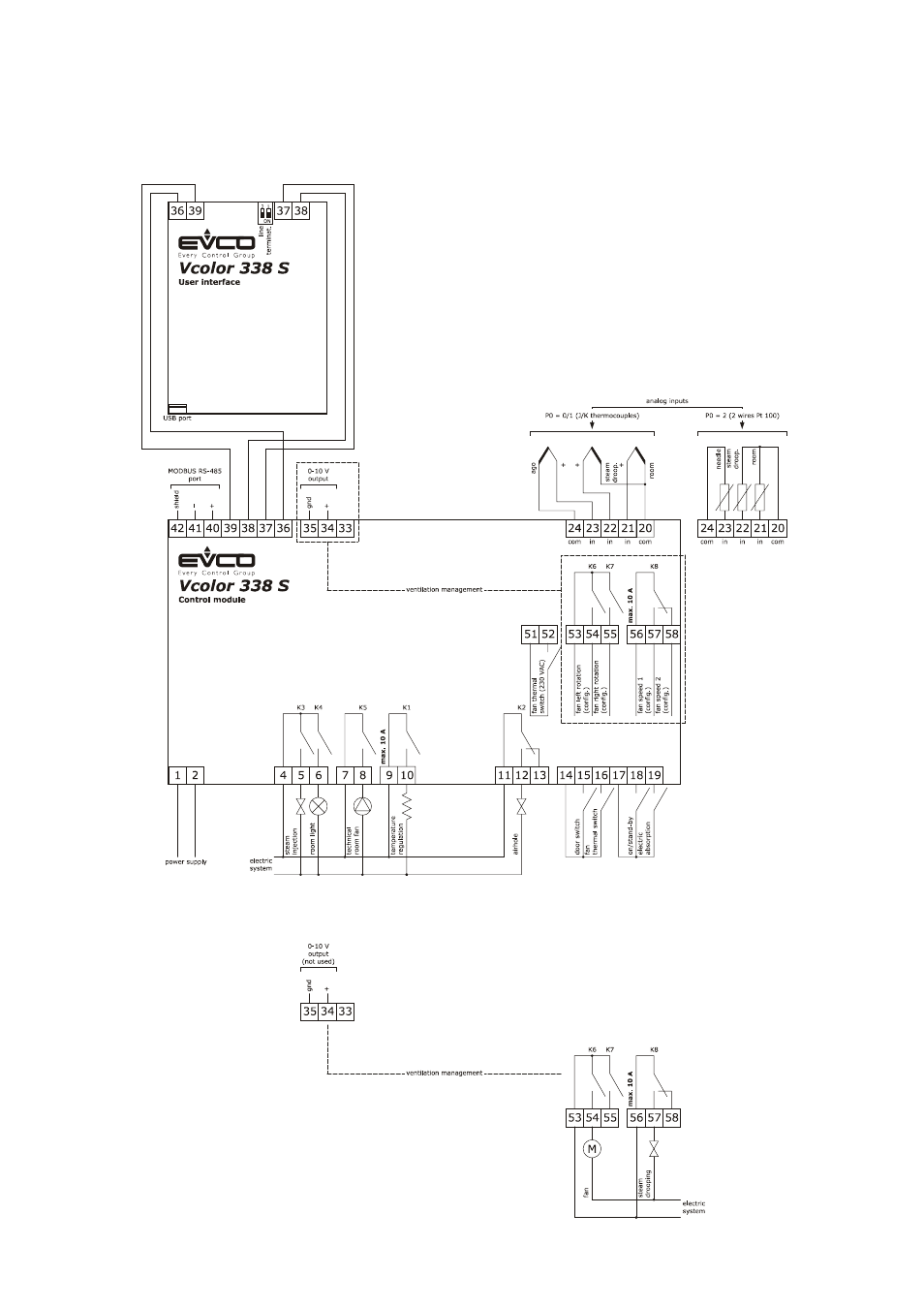

The following drawing illustrates the device's electric connection.

Management of the ventilation in "on/off" mode and with single speed (parameter F0 = 0).
