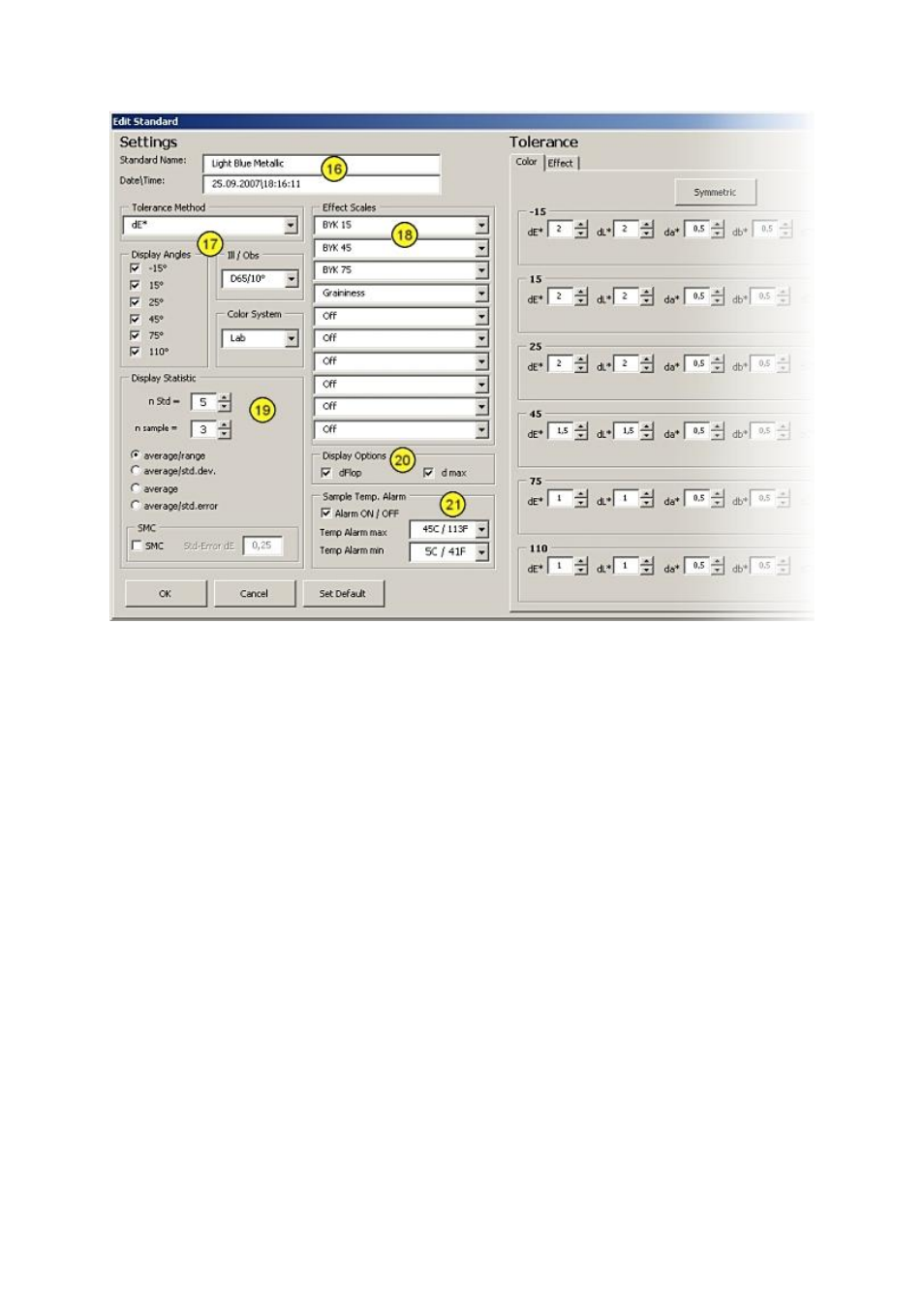

The left side of the window consists of the following information:
窗口左侧由以下信息构成：
- Standard name and Date /Time (16).
- Tolerance method, display angles, illuminant and color system (17).
- Effect scales (18) and Statistic (19).
- Display options (20) for special indices (flop difference and maximum difference).
- Sample Temperature Alarm (21) to warn, if the sample temperature is out of the defined
Temperature range.
- 标准品的名称，日期/时间 (16).
- 色差公式，显示的角度，光源和颜色系统 (17).
- 效应参数 (18) 和统计方式 (19).
- 特殊的显示选项 (20) (flop 参数差异 and 最大差异).
- 样品报警温度设置 (21)，如果样品温度超出了规定的温度范围仪器将报警。
After all settings and tolerances are entered, use the "Send Standards" button of the
toolbar to transfer the data to the instrument.
所有的设置和允差输入后，使用工具条中的“送出标准”按钮，将数据传输进仪器。
