ALTANA Auto-Chart User Manual

Page 30

Text mode
Original mode

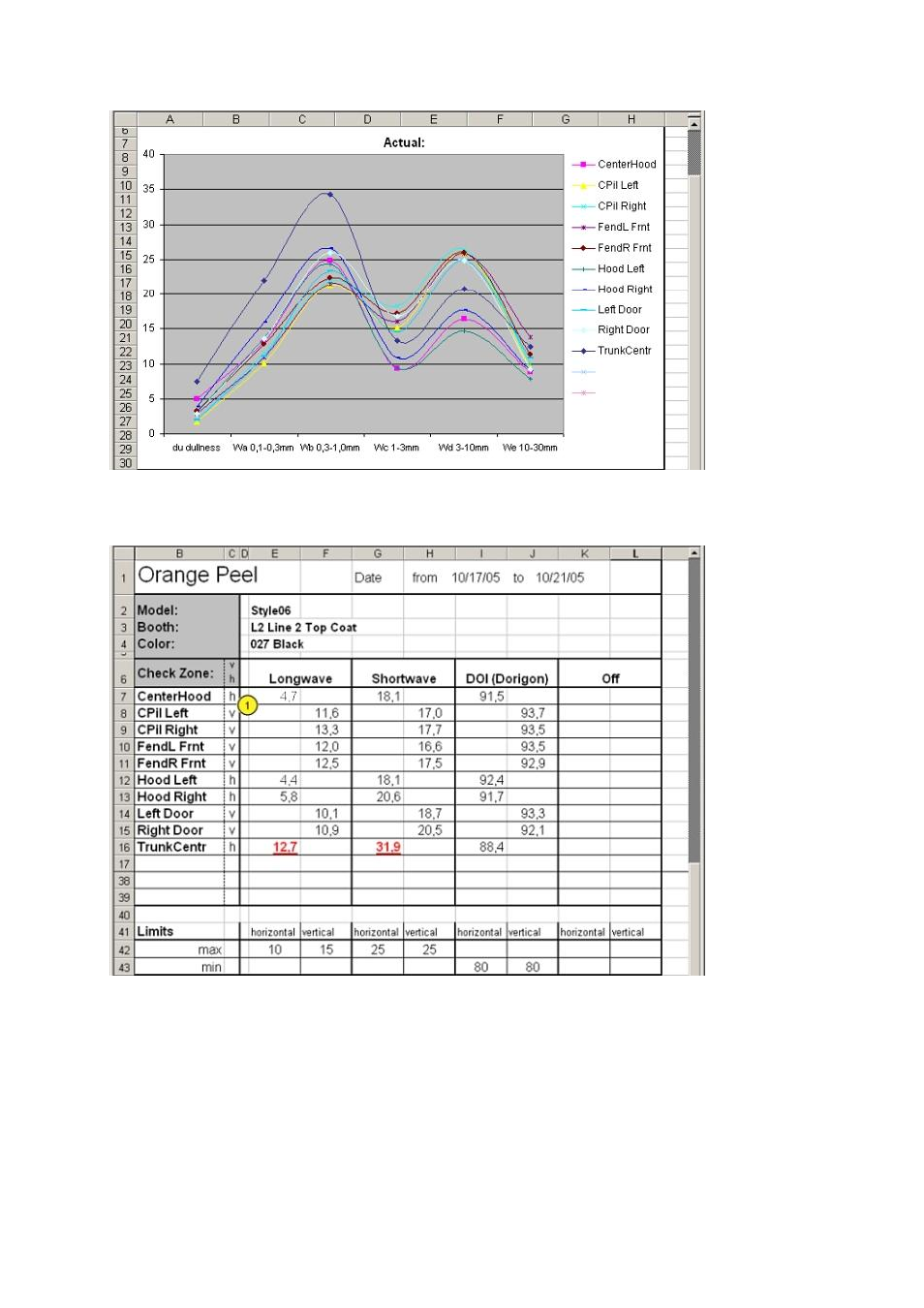

Additionally, a table is included with the numerical data of the selected scales:
此外，表格中还包含所选标尺的数据：

By assigning every check zone to a horizontal or vertical measurement area (1) the measured
value will be compared to the specification. Based on the entered limits for Horizontal and vertical
the data will be displayed in red, if they are out of specifications.
通过指定每个检查区域是水平或垂直测量区域 (1) 测量的数据将按规定进行比较。根据输入的水平
和垂直的上下限，如果数据超出了这个范围将用红色显示。
