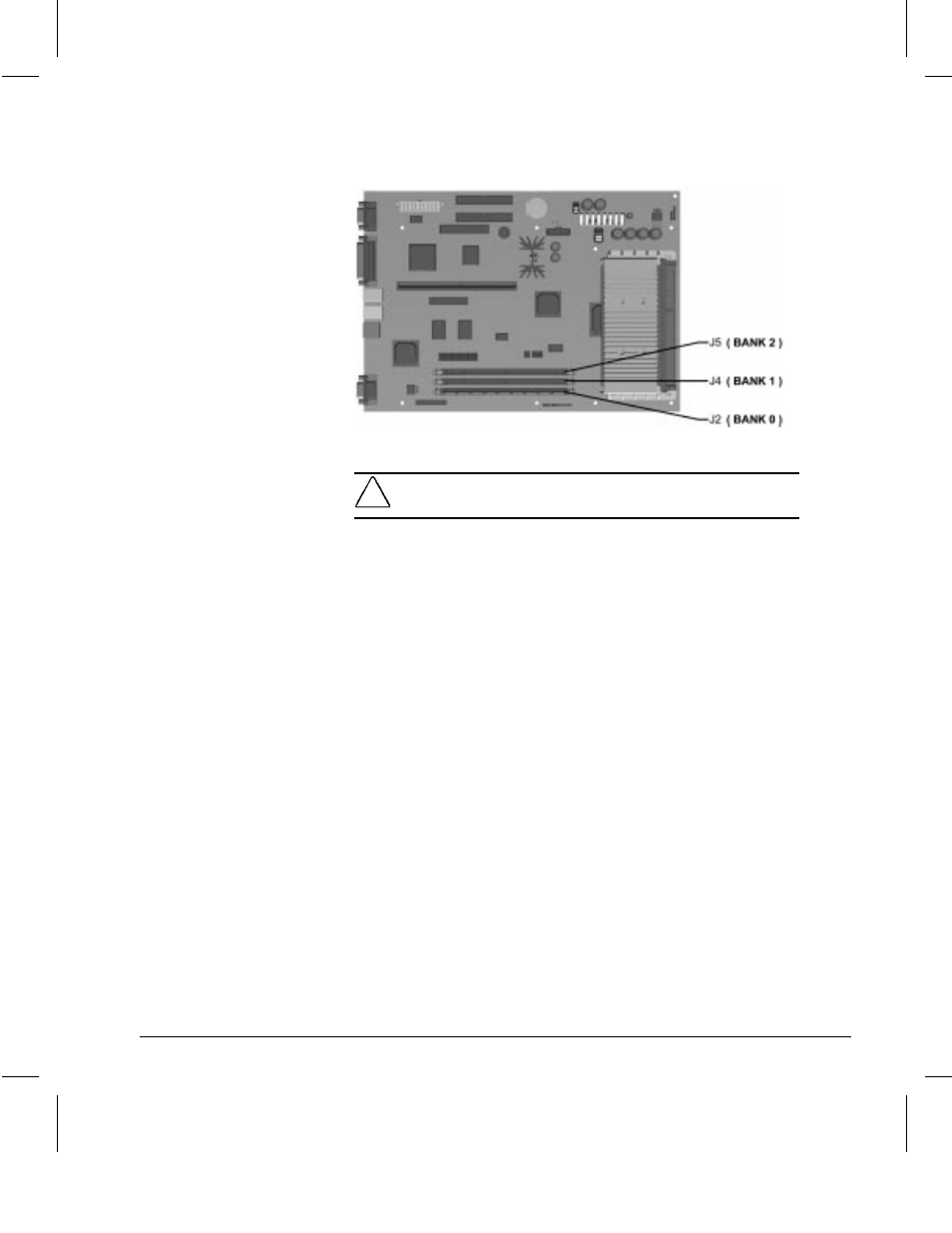

Three Memory Module Sockets on the Pentium II System Board
CAUTION: When handling a memory module, be careful not to
touch any of the contacts. Doing so may damage the module.
To install a memory module, complete the following steps:
1. Remove any expansion boards that block access to the
DIMM sockets.
2. Press outward on both latches 1 of the DIMM socket at
the same time and insert the memory module 2 into the
socket.
3. A memory module can be installed in only one way. Match
the notch on the module with the tab on the memory
socket. Push the module down into the socket, ensuring
that the module is fully inserted and properly seated
3.
