5-8 Upgrading the Desktop Computer
Writer: Holly Jahangiri Saved by: Holly Jahangiri Saved date: 07/16/97 2:46 PM
Pages: 28 Words: 3162 Template: c:\msoffice\templates\comm.dot
File Name Ch5.doc Part Number 278019-002
Installing an
Expansion Board The computer contains the following five expansion slots: three
slots are located on one side of the expansion riser board and
two slots are located on the other side of the expansion riser
board.
1 One PCI/ISA expansion slot on the outboard side of the
riser board in the uppermost position.
2 Two ISA expansion slots on the outboard side of the riser
board.
3 Two dedicated PCI expansion slots on the inboard side of
the riser board.

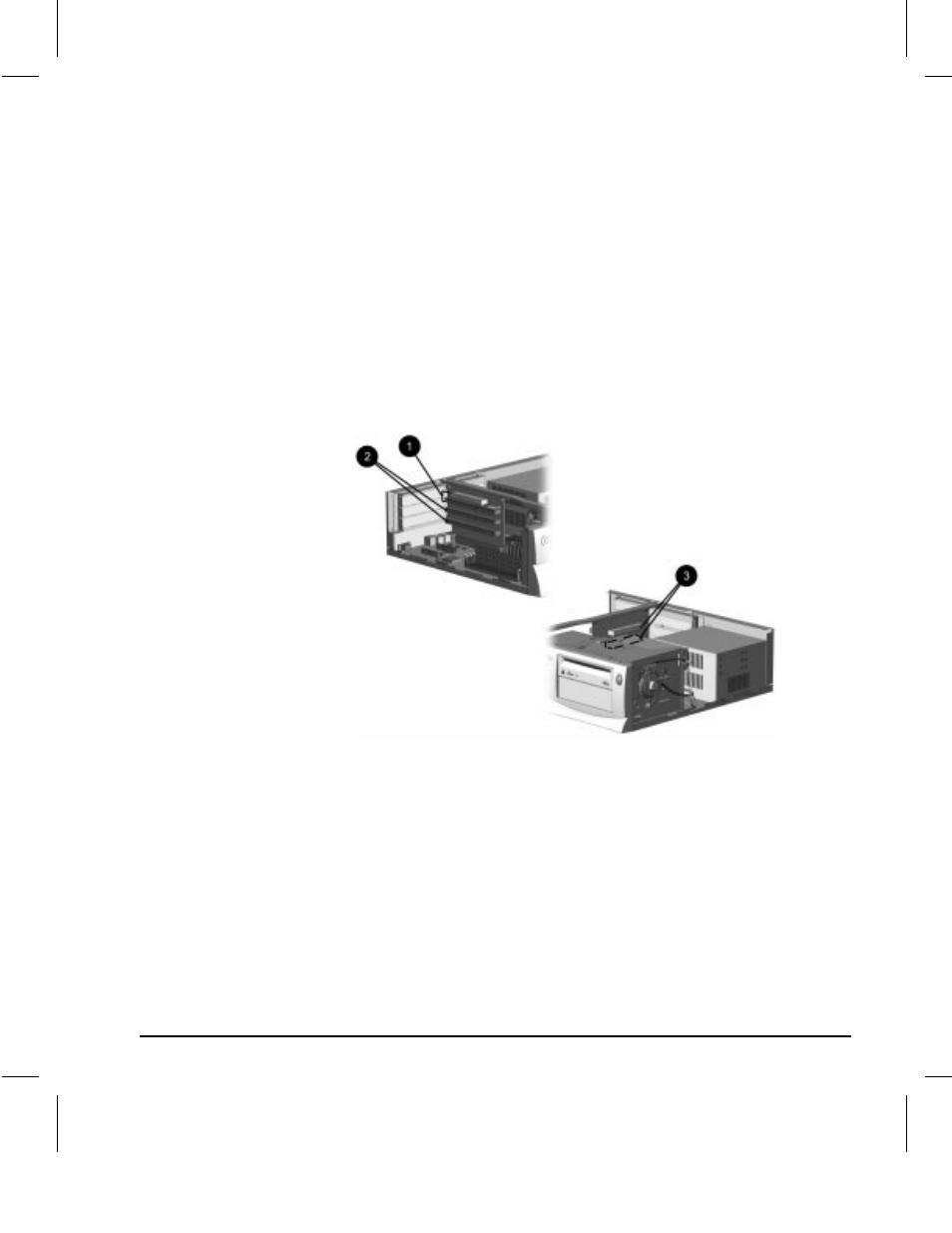

Five Expansion Slots on the Desktop Computer
To install an expansion board on the inner side of the expansion
riser board, complete the following steps:
1. Locate the correct vacant slot on the expansion riser board.
2. If you are installing an expansion card on the expansion riser
board side with two expansion slots (closest to the power
supply), first remove the retaining screw and the retainer
bracket
1, then remove the expansion slot cover 2.
