6-6 Upgrading the Minitower Computer
Writer: Holly Jahangiri Saved by: ACastle Saved date: 07/25/97 2:13 PM
Pages: 28 Words: 3072 Template: c:\msoffice\templates\comm.dot
File Name Ch6.doc Part Number 278019-001
An Inside View of
the Computer

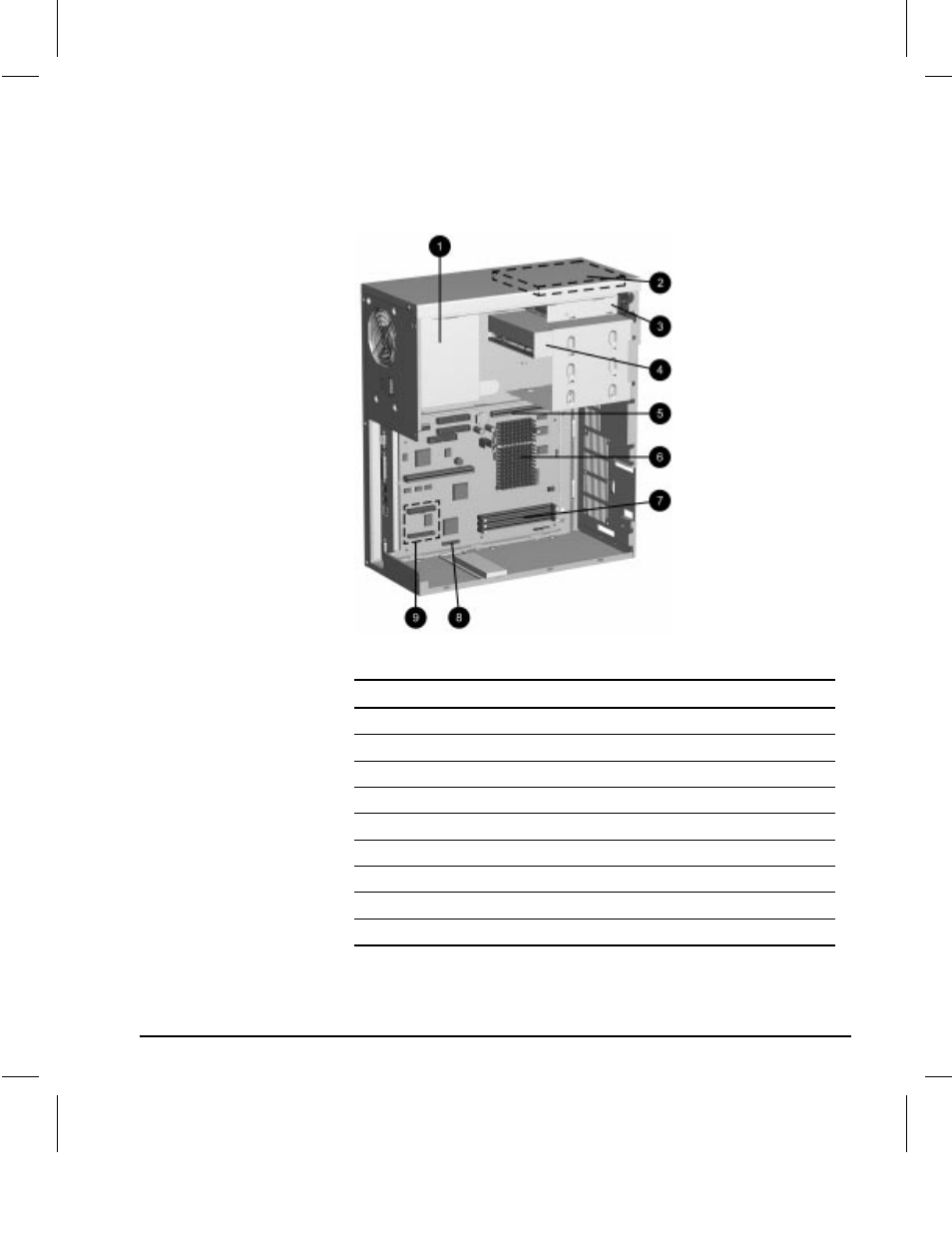

The following illustration provides an inside view of the main
features of the computer.
An inside View of the Pentium Computer
Ref Interior Components
1
Power supply
2
Internal hard drive
3
Diskette drive
4
CD-ROM drive
5
Cache connector
6
Processor
7
Memory module sockets
8
VESA connector
9
Graphics upgrade socket
✎
To provide a better view of the internal components, the
riser brace is not shown in this illustration.
