Installing an
Expansion Board
The computer contains five expansion slots, which are located
on the expansion riser board. These consist of:
1
Two dedicated PCI expansion slots
2
One PCI/ISA shared expansion slot
3
Two ISA expansion slots

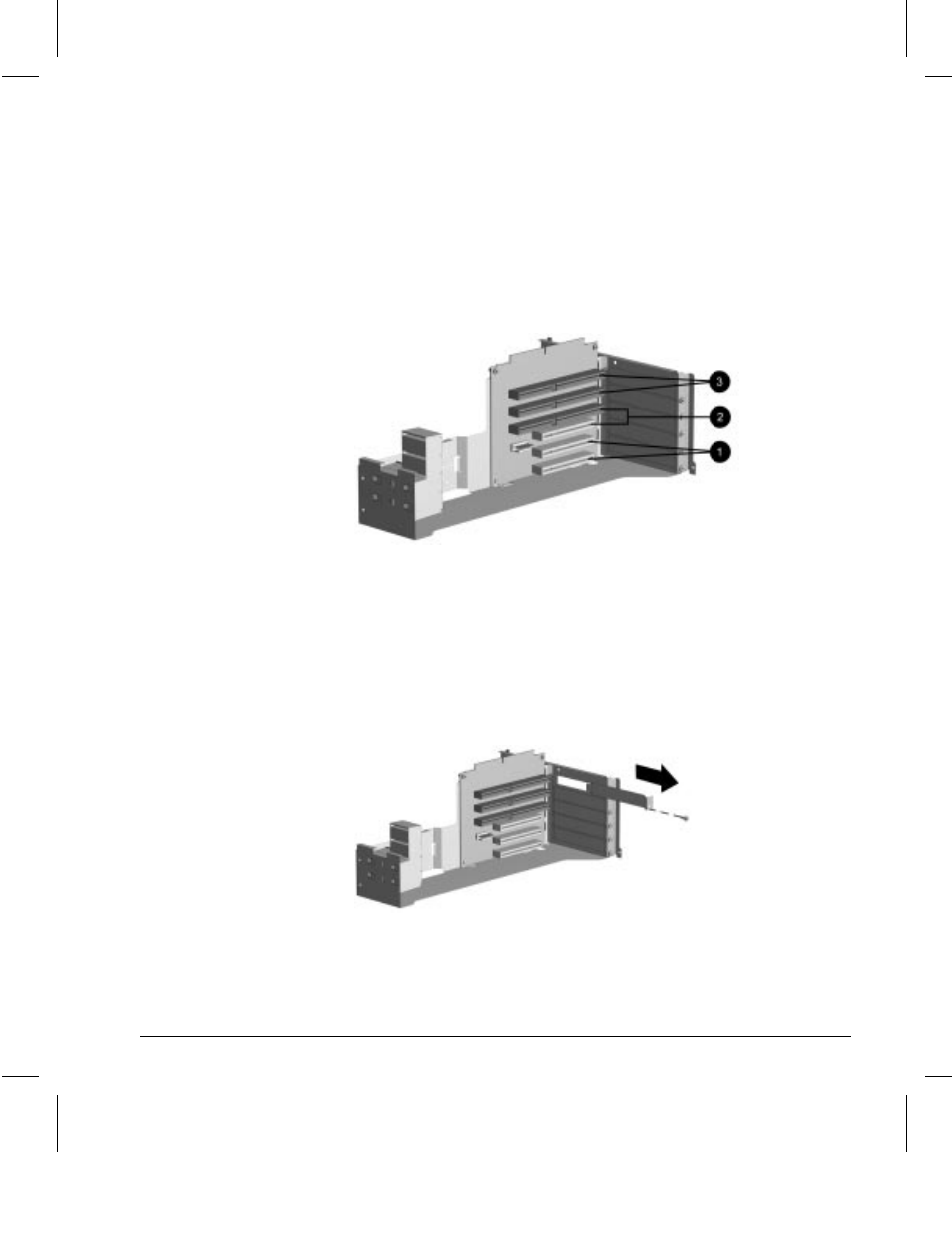

Five Expansion Slots in the Expansion Riser board
To install a PCI or an ISA expansion board, complete the
following steps:
1. Remove the riser brace.
2. Locate the correct vacant slot in the expansion riser board.
3. Remove the screw from the expansion slot cover, then
remove the expansion slot cover.
Removing the Screw and Expansion Slot Cover
